RDS 182.9μm L610φ 6.35mm production line rod formed
Extrusion process182.9µm610mm
Production process Extrusion process, wet film thickness 182.9μm, main rod diameter 6.35mm, total length 610mm, effective Spreader width 510mm, clamping length at both ends 50mm, material stainless steel 303.
Login
RDS 64μm L1580φ 15.875mm production wire rod, chrome-plated surface
64µmWire-wound process1580mm

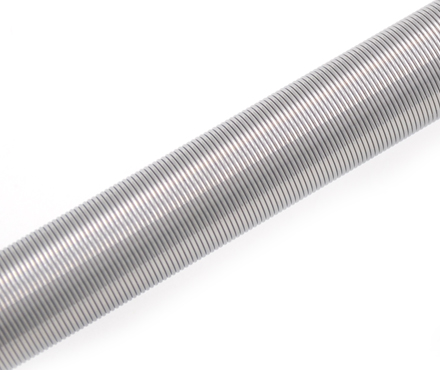

Wire-wound process, wet film thickness 64μm, main rod diameter 15.875mm, total length 1580mm, effective Spreader width 1560mm, clamping length at both ends 10 + 10mm, material stainless steel 303.
Login
RDS 45.7μm L1580φ 15.875mm custom wire rod Eletroplating
45.7µmWire-wound1580mm
Wire-wound, wet film thickness 45.7μm, diameter 15.875mm, total length 1580mm, Spreader width 1560mm, hand width 10 + 10mm, material 303S.
Login
RDS 7 #L1700φ 30.2 production wire-wound drawdown bar 16.0μm/1.7m
Wire-wound16.0μ m1700mmchrome plating
Wire-wound, wet film thickness 16.0μm, steel wire diameter, the diameter of the main rod, the total length of 1700mm, effective Spreader width 1500mm.
Login
RDS 5 #L1135φ 10 Measurement Wire Bar 11.4μm/1.135m
Wire-wound11.4µm1135mmchrome plating
The production process is wire-wound, the wet film thickness is 11.4 μm, the diameter of the steel wire is about 0.13mm, the diameter of the main rod is about 10mm, the total length is 1135mm, the effective Spreader width is 810mm, and the clamping length at both ends is 175mm.
Login
RDS 6 #L1700φ 30.2 production wire-wound drawdown bar 13.7μm/1.7m
13.7µmWire-wound1700mmchrome plating
Wire-wound, wet film thickness 13.7μm, wire diameter φ 0.15mm, main rod diameter φ 30.2mm, total length 1700mm, effective Spreader width 1500mm, clamping length at both ends 100mm, mandrel material stainless steel 303, surface process chrome plating
Login
RDS 4 #L1135φ 10 production wire-wound drawdown bar 9.1μm/1.135m
9.1µmWire-wound1135mmchrome plating
Wire-wound, wet film thickness 9.1 μm, wire diameter φ 0.10mm, main rod diameter φ 10mm, total length 1135mm, effective Spreader width 810mm
Login
RDS 45 #L1700φ 30.2 production wire-wound drawdown bar 102.9μm/1.7m
102.9µmWire-wound1700mmchrome plating
Wire-wound, wet film thickness 102.9μm, wire diameter φ 1.14mm, main rod diameter φ 30.2mm, total length 1700mm, effective Spreader width 1500mm, clamping length at both ends 100mm
If you don't know how to choose "Metering rod", please consult customer service.
