CHANGLONG ZCW1-65 smart temperature patch, temperature 65 ℃ specification 25x21mm

Introduction

Changlong ZCW1-65 intelligent temperature measurement patch, also known as three-color color-changing temperature measurement patch, has unique color-changing temperature display, digital display, reversible and recording functions of the changed color, and it has self-adhesive stickers. Once the temperature of the temperature monitoring part reaches or exceeds the rated temperature of the temperature measuring patch, the color-changing temperature measuring patch will immediately change from white to red, and the over-temperature number will be displayed on the temperature measuring patch, which is easy to be found during inspections Monitor the temperature rise of the temperature monitoring part, so as to find out the hidden trouble and prevent the accident.

Color changes

When the temperature of the temperature monitoring part reaches or exceeds the rated temperature of the intelligent color-changing temperature-measuring patch, the temperature-measuring patch will immediately change color from white to red; when the temperature falls below the rated temperature, the temperature-measuring patch will not It returns to the original white, but turns black, indicating that the place has reached the rated temperature, and now the temperature has dropped below the rated temperature; when the temperature reaches or exceeds the rated temperature of the temperature measuring patch again, the temperature measuring patch changes from black to black. Red; when the temperature drops, it turns from red to black, and so on. The patch can be changed into three colors from white to red and red to black. The patch can continue to be used.

Applications

ZCW1-65 is applied to the connecting part of the indoor busbar in the substation, and can also be attached to the connection between the busbar and the equipment terminal and the contact of the isolating switch, and can also be attached to the casing of the transformer, motor, capacitor and other electrical equipment. It is used to monitor the temperature of the bus connection and the casing of electrical equipment.

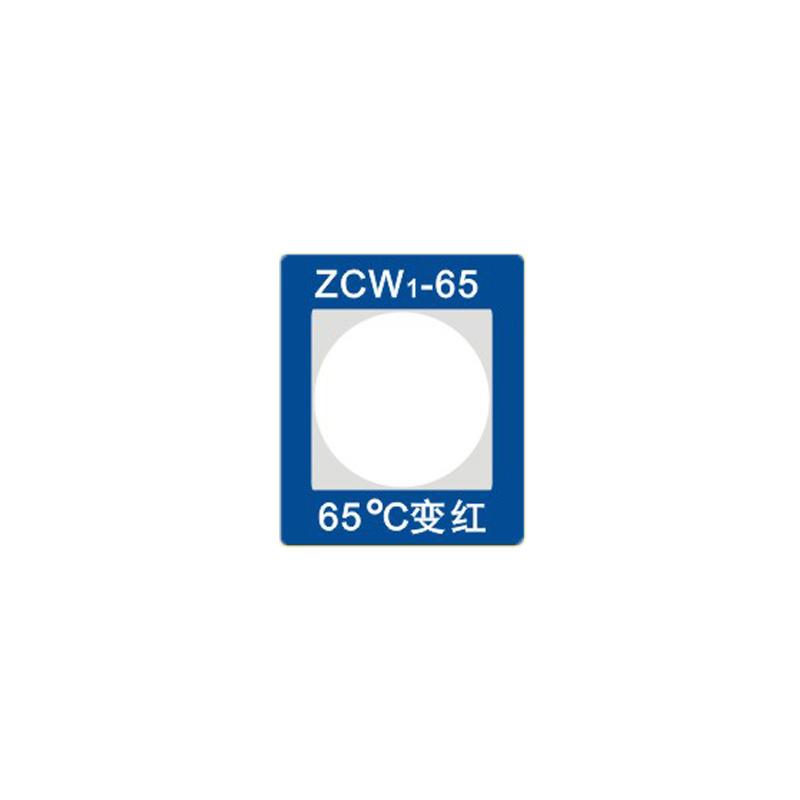

Real photo

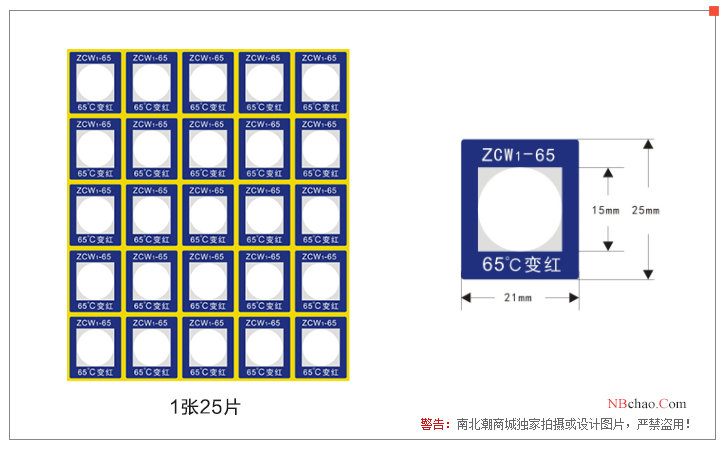

ZCW1-65 is sold as a whole, 25 pieces per sheet, as shown below:

Temperature measurement patch 25 pieces/sheet

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
