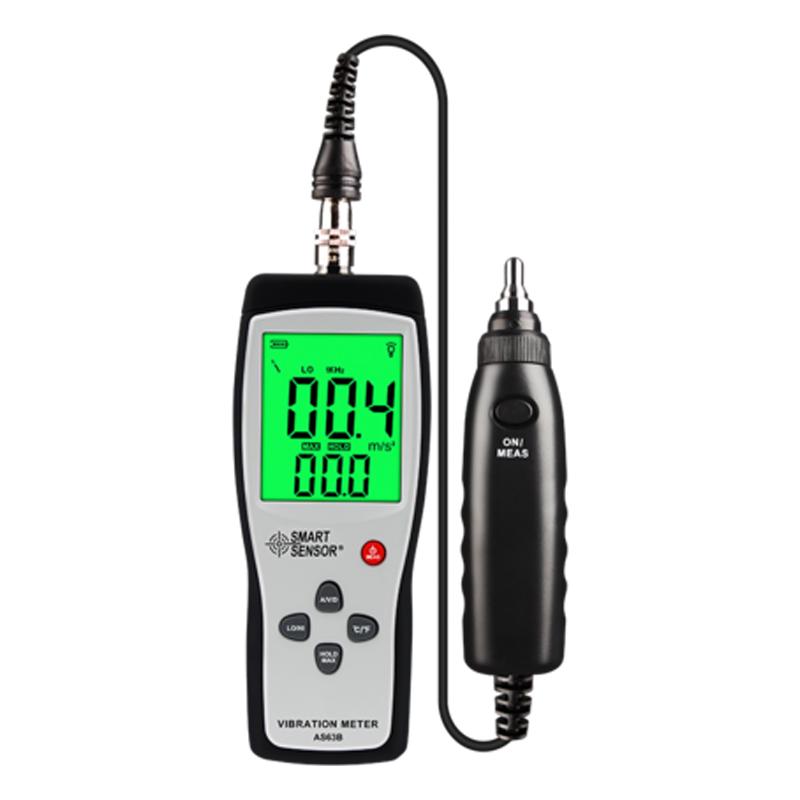

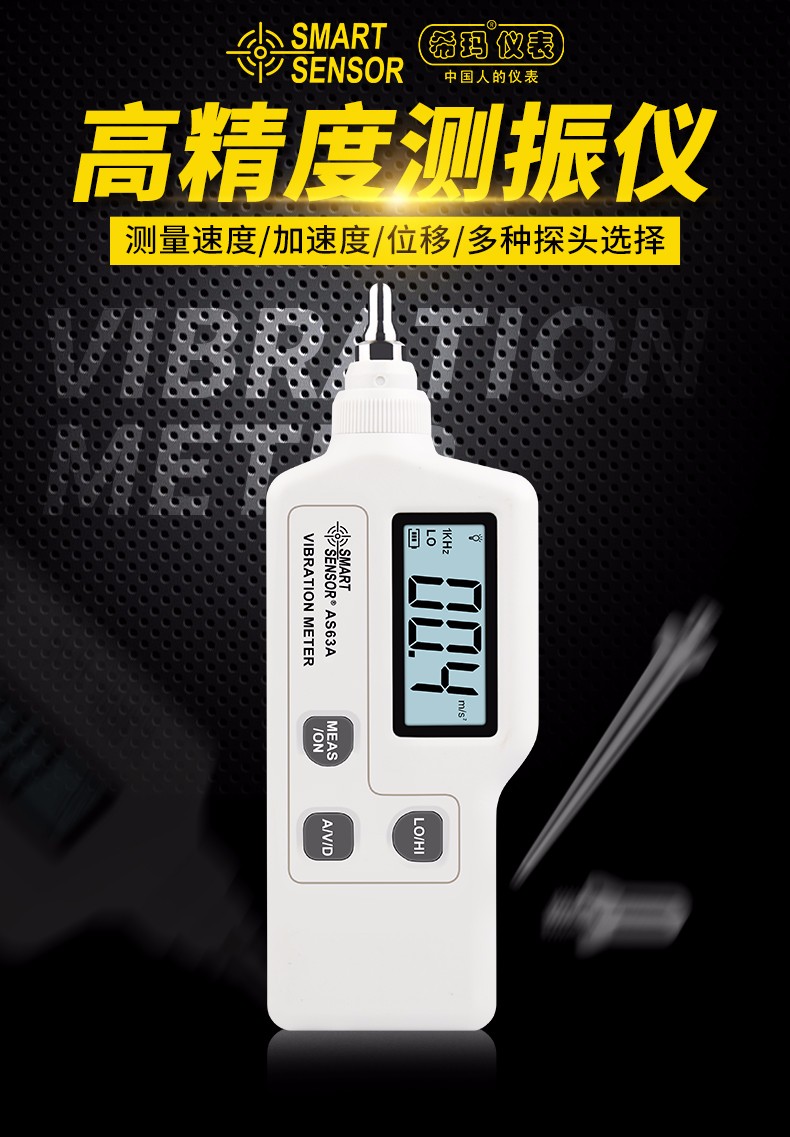

SMART SENSOR AS63B split Vibration meter Acceleration 0.1~ 199.9m/s2
Piezoelectric Ceramics accelerometer with 0.1-199 m/s ² acceleration, 0.1-199 mm/s speed and 001-1.999 mm displacement measurement range for a variety of vibration measurement needs. Its frequency range covers 10Hz 15KHz with +/- 5% error and features LCD display, AC signal output, automatic shutdown and more
SMART SENSOR
AS63B
-
DUBAN DB22-VM260A20 Vibrator, circumferential displacement D 0.001~ 20.0mm
$ 691.62 -
SMART SENSOR AR63C Portable Vibration meter Acceleration 0.1~ 199.9m/s2
$ 171.71 -
DUBAN DB22-VM260A16 Vibrator, displacement D 0.001~ 16.0mm
$ 611.89 -
LANDTEK VM-6320 Vibration Meter (Practical)
$ 266.92 -
LANDTEK VM-6380-3 Vibration Measuring Instrument (Three Channel)
$ 673.22

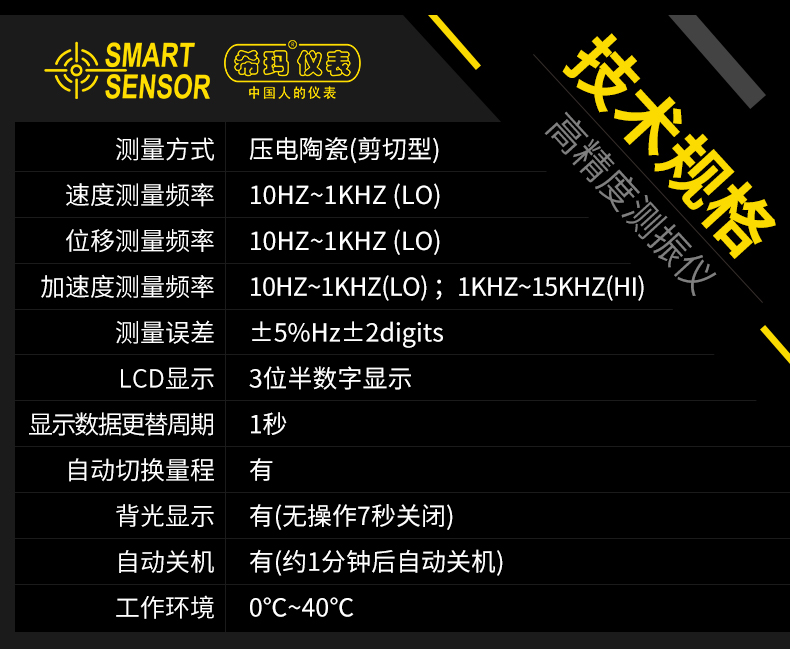

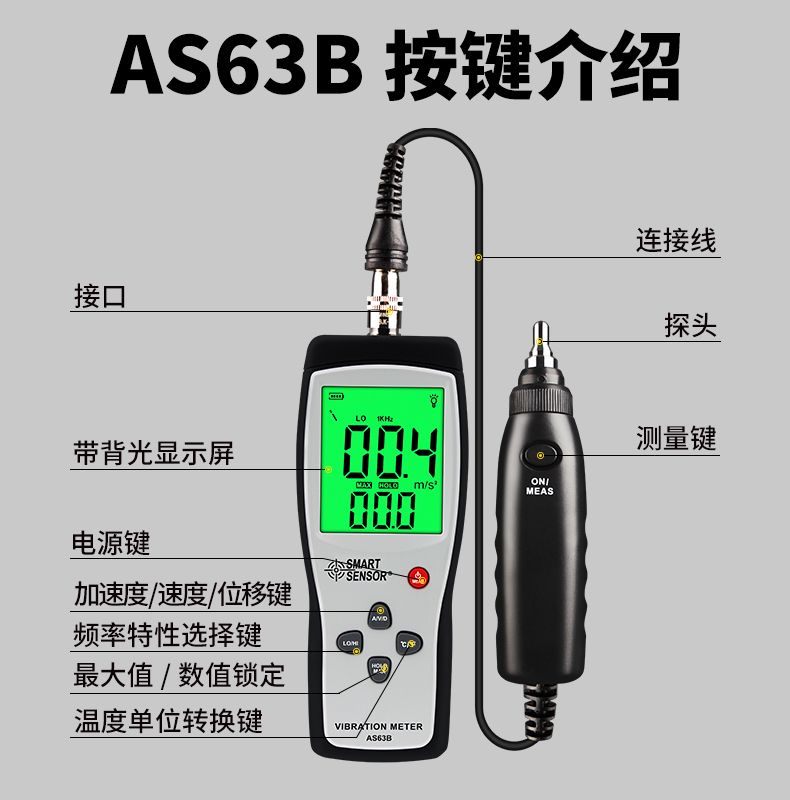

SMART SENSOR AS63B Vibration meter (split)Specifications
| LIST | VALUE |
|---|---|
| Measurement method | Pottery and porcelain accelerometers |
| Acceleration Measurement range | 0.1~199.9m/s² |
| Speed Measurement range | 0.1~199.9mm/s |
| Displacement Measurement range | 0.001~1.999mm |
| Acceleration frequency range | 10Hz~1KHz(LO)，1KHz~15KHz(HI) |
| Speed frequency range | 10Hz ~ 1KHz (LO) |
| Displacement frequency range | 10Hz ~ 1KHz (LO) |
| Measurement error | ±5%Hz±2digits |

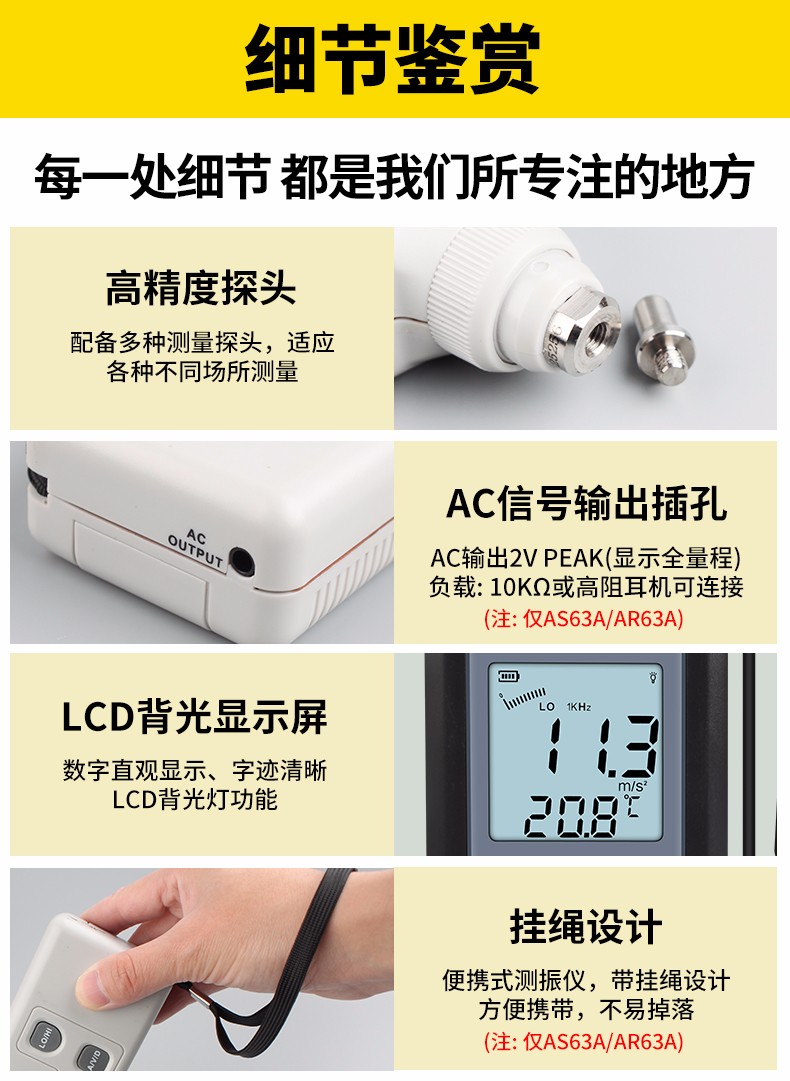

| data output | AC signal output Peak (full scale display) |
| display | 3.5 digits LCD display |
| Automatic range switching | Yes. |
| Backlight display function | Yes. |
| Automatic shutdown function | Yes. |
| Operating Temperature | 0~40℃ |
| Power | 9V battery |
| Weight | 155g |

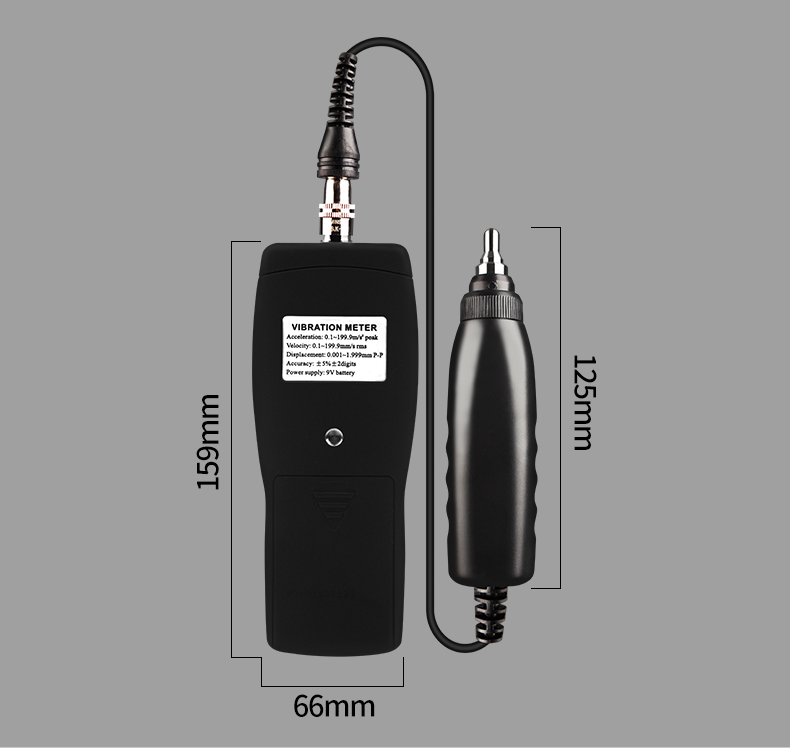

| Dimensions | 159*66*31mm |
| Encasement method | Aluminum Encasement |
| Standard outer box capacity | 12PCS |
| Standard outer box size | 45*32*55cm |
| Standard gross weight | 16.33KG |

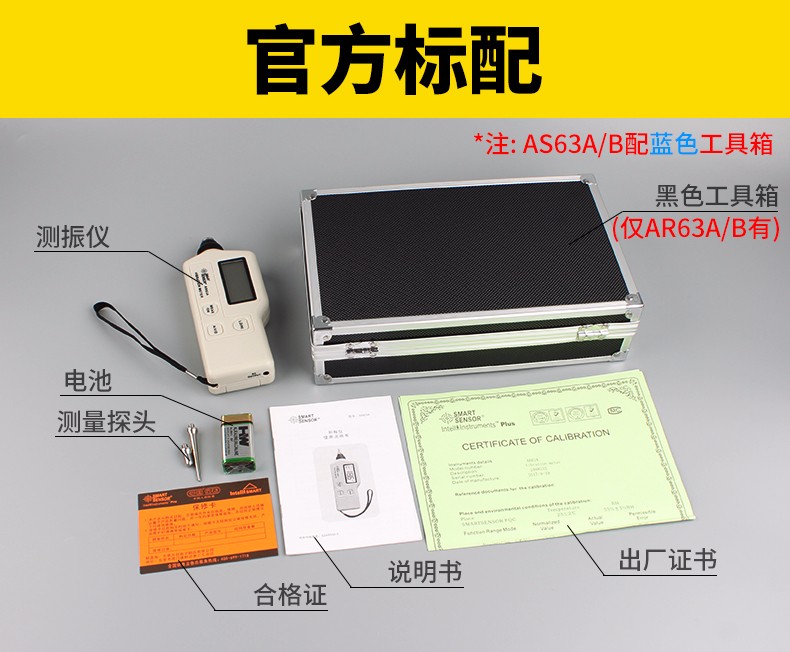

SMART SENSOR AS63B Vibration meter (split) Packing list

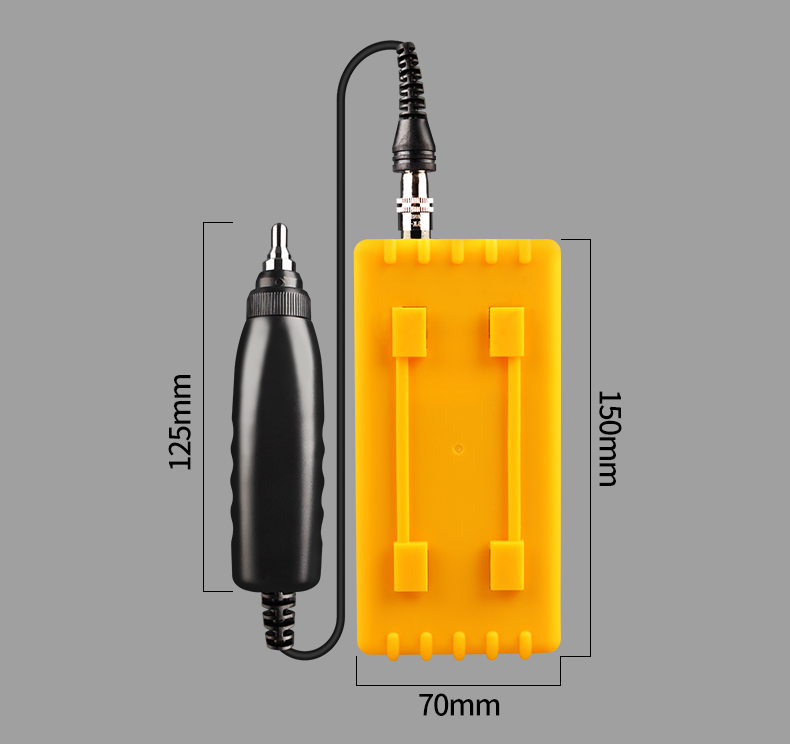

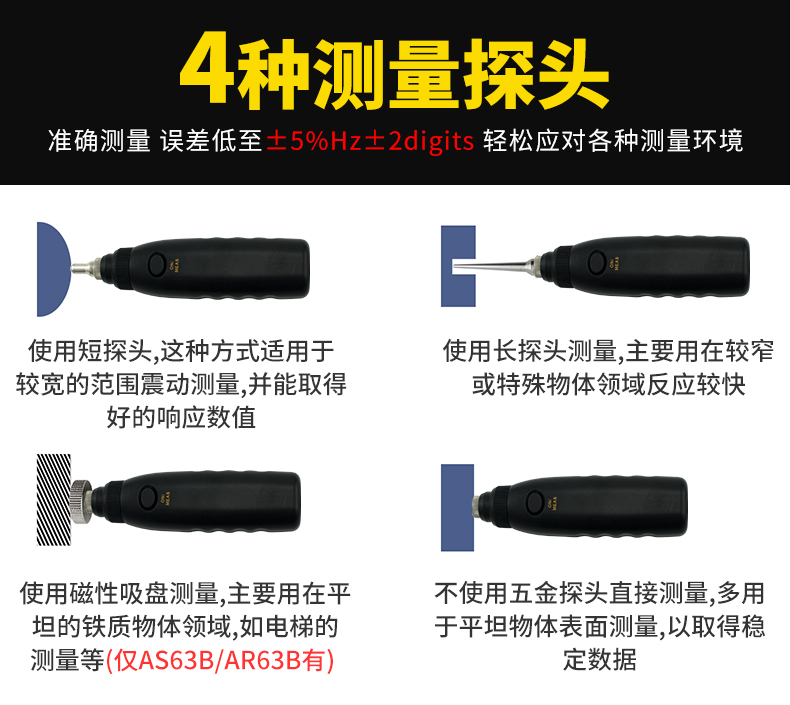

Vibration meter X1, original battery X1, split probe x1, long probe x1, short probe x1, strong magnetic chuck x1, factory certificate X1, warranty card X1, manual X1, portable toolbox x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
