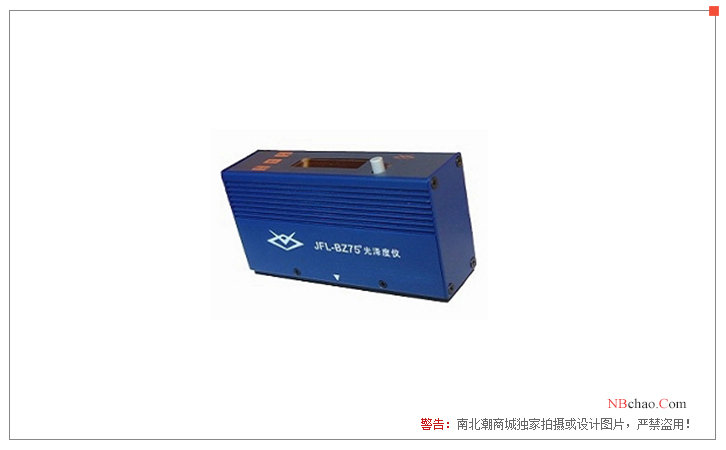

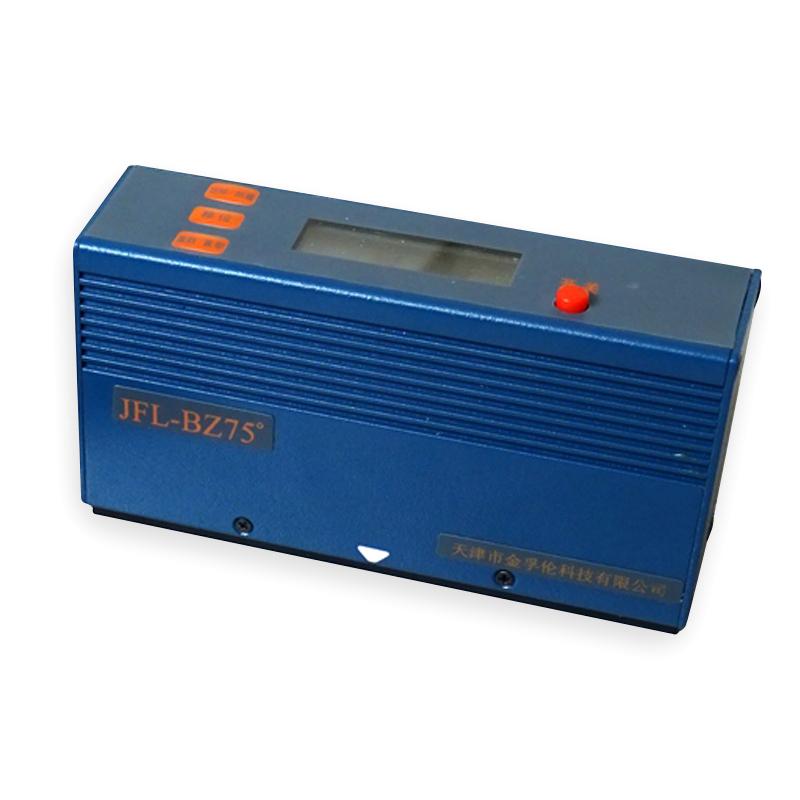

Coated paper glossmeter JFL-BZ75 (paper smart) JFL Coated paper Glossiness testing instrument

Introduction

 JFL JFL-BZ75 Coated Paper Gloss Meter is an intelligent gloss meter with a projection angle of 75 degrees. It is produced and developed according to the JJG696 standard and complies with ISO8254, TAPPI T480, GB8941.1 domestic (CN) and foreign standards. The measuring range is 0~300 gloss Unit of gloss instrument. JFL-BZ75 Gloss Meter is mainly used to measure the gloss of the surface of coated paper and other paper. The gloss of the measured object is relatively low. It uses a rechargeable battery and has a longer service life.

Applications

JFL-BZ75 Coated Paper Gloss Meter is widely used in coated paper and other paper fields, and is suitable for measuring the surface gloss of low-gloss objects.

Calibration method

During use, if the JFL-BZ75 Coated Paper Gloss Meter is placed on the standard plate, when the displayed value is quite different from the nominal value of the standard plate, it is necessary to calibrate the gloss meter. The specific calibration method is as follows:

1. Put the measurement window of JFL-BZ75 Coated Paper Gloss Meter on the black velvet board, press the "set number/zero" key, and the displayed value is 0.0.

2. Replace the black velvet board with a black glass standard board, place it under the measurement window of the JFL-BZ75 gloss meter , press the "calibration/measurement" button to enter the setting state, at this time it displays "000.0" and the first "0" flashes .

3. Press the "Shift" key to move the flickering digit to the right, and press the "Number/Zero" button to change the value of the "blinking" digit from 0-9-0. By pressing the "Shift" and "Number/Set" Zero" key to make the displayed value the same as the nominal value of the black glass standard plate, then press the "Calibration/Measurement" key to complete the setting.

4. Put the JFL-BZ75 coated paper gloss meter on the white ceramic standard plate, the error between the displayed value and the nominal value of the white ceramic standard plate should not be greater than ±1.2 gloss units, otherwise the standard plate is dirty and other problems should be considered.

5. After calibration, the sample can be measured.

Steps

The measurement method of JFL-BZ75 coated paper gloss meter is relatively simple, as follows:

1. Press the switch, JFL-BZ75 Coated Paper Gloss Meter is in the measurement mode.

2. Put the measurement window of the JFL-BZ75 coated paper gloss meter on the sample, and the value displayed at this time is the gloss value of the sample.

Note: When the measured value is greater than 300.0 gloss units, the word "OVER" will be displayed.

Pictures

host (including rechargeable battery) x1, standard board (including blackboard, whiteboard) x1, zero board (black velvet on standard board box) x1, charger x1, manual x1, product certificate x1, instrument case x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
