3D three-axis vibration instrument AMITTARI AV-160D simultaneous measurement of three-axis or single-axis vibration parameters

Overview of AV-160D 3D Three-axis Vibration Meter

An Miao 3D Three-axis Vibration Meter AV-160D is a portable digital display 3D three-axis vibrating meter. The sensor used is a three-axis piezoelectric vibration sensor, which has X, Y, Z axes or three axes, and can measure three axes at the same time. Vibration parameters or vibration parameters for a single axis. The 3D three-axis vibration meter AV-160D has the function of bearing condition measurement, which conforms to the international standard ISO2954, and is used to test various mechanical vibrations. The measurement accuracy is ±5%+2 characters.

AV-160D Features and Advantages

* Auto power off function.

* Lightweight and easy to operate, easy to use.

* Wide frequency range, up to 10-10KHz.

* With AC signal output, it is convenient for auscultation and recording.

* It has bearing condition measurement function.

* Comply with international standard ISO2954, GB13823.3, for periodical motion measurement to detect unbalance and deviation of moving machinery.

* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.

* Three piezoelectric accelerometers with high performance are selected to realize three-dimensional vibration measurement with high accuracy and good repeatability.

* Liquid crystal LCD display, one display can display three vibration parameters (velocity, acceleration and displacement) of one-dimensional vibration at the same time, and can also display a selected parameter of three-dimensional vibration at the same time.

* Optional earphones can be used as a stethoscope.

*Using optional RS232 software and cable, it can communicate with PC computer to realize functions such as printing and statistics.

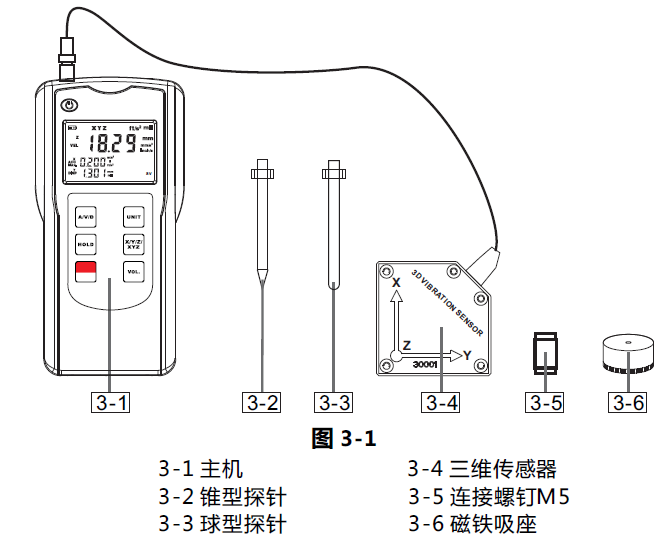

Outline structure diagram

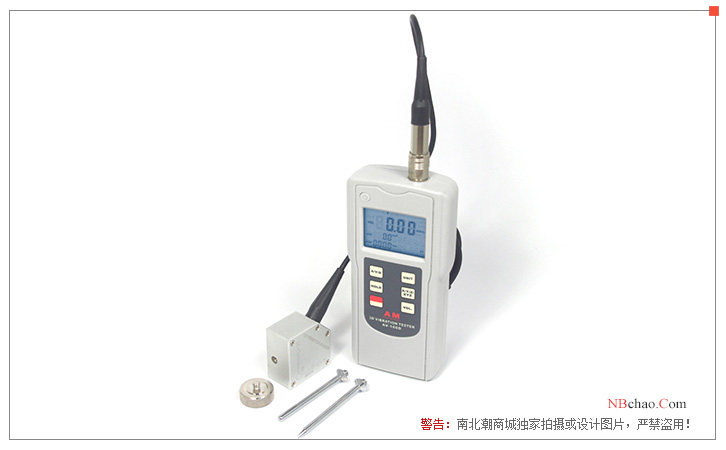

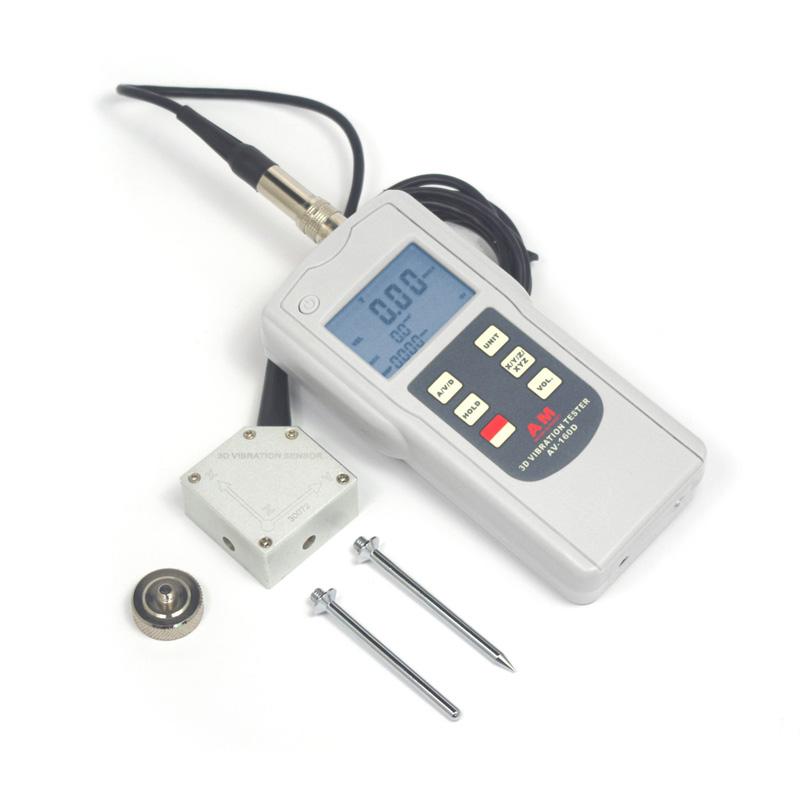

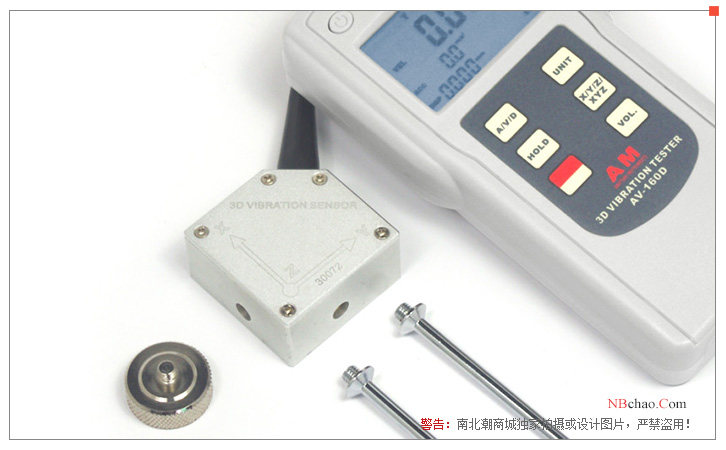

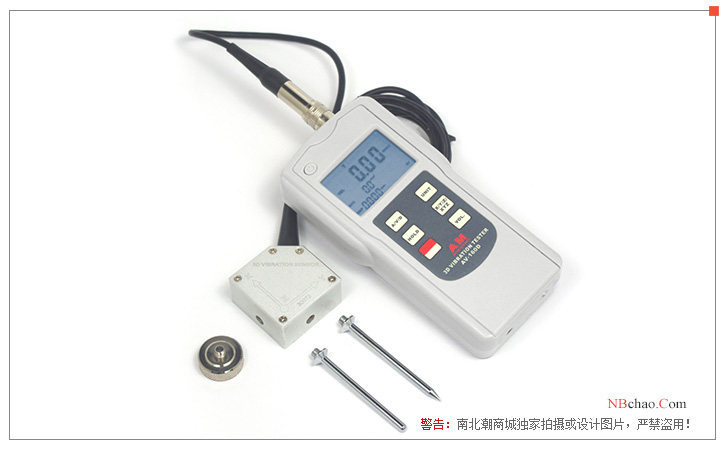

Pictures

Machine vibration classification selection table

Note: (1) Class I is a small motor (motor less than 15kw, etc.); Class II is a medium-sized machine (motor 15kw~75kw, etc.); Class III is a large prime mover (hard foundation); Class IV is a large prime mover ( Elastic base)

(2) A / B / C / D are vibration levels; A is good, B is satisfactory, C is not satisfactory, and D is not allowed. The measured speed (RMS) values shall be in three orthogonal directions of the bearing housing.

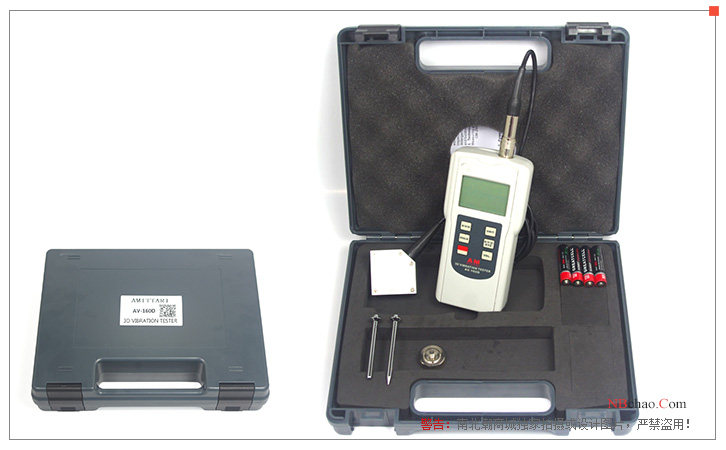

Host x1, magnetic suction seat x1, tapered probe x1, spherical probe x1, measurement Sensors x1, portable case x1, operation manual x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
