LANDTEK VM-6320 Vibration Meter (Practical)
LANDTEK VM-6320 Vibration Sensors with Piezoelectric Vibration Measurement range of 0.01~ 199.9mm/s, VM-6320 Vibration Tester is an external probe type vibration tester for testing mechanical vibration.
LANDTEK
VM-6320
-
LANDTEK VM-6310 Vibration Meter (Basic)
$ 190.26 -
LANDTEK VM-6370 Vibration Meter (Enhanced)
$ 389.57 -
DUBAN DB22-VM260A08 Vibrator, displacement D 0.001~ 8.0mm
$ 452.44 -
LANDTEK VM-6380-3 Vibration Measuring Instrument (Three Channel)
$ 673.22 -
DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors
$ 611.89
Applications
Applied to periodic motion measurement to detect imbalance and deviation of moving machinery. It is specially designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
Features
* Conforms to international standard ISO2954 for periodic motion measurement to detect imbalance and deviation of moving machinery.
* Designed for on-site measurement of various mechanical vibrations to provide data for quality control, running time and prior equipment maintenance.
* Use high-performance accelerometers to achieve accurate and reproducible measurements.
* With AC signal output, it is convenient for auscultation and recording.
* Optional earphones can be used as a stethoscope.
* Use "USB data line output" and "RS-232 data line output" to communicate with PC.
* Provide Bluetooth data output option.

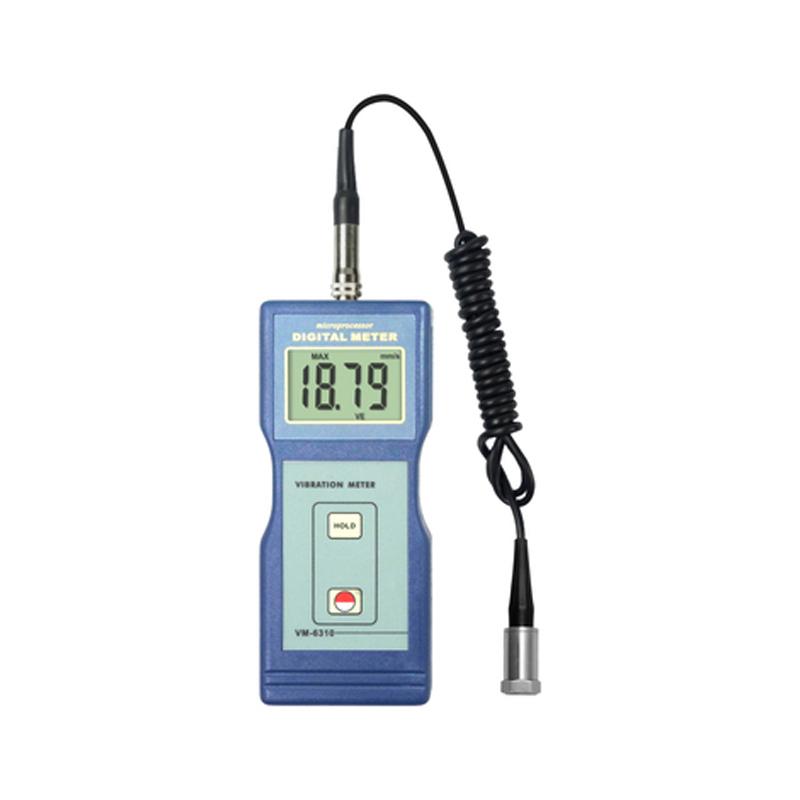

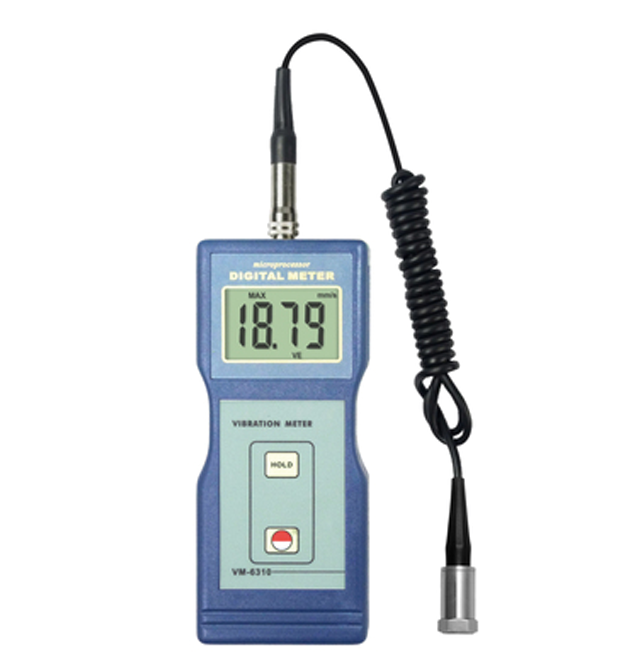

real shot
LANDTEK VM-6320 Vibration meter (practical type)Specifications
| LIST | VALUE |
|---|---|
| Acceleration Measurement range | Piezoelectric Vibration Sensors |
| Speed Measurement range | 0.01~ 199.9mm/s true RMS |
| Displacement Measurement range | 0.001~ 1.999mm peak-peak |
| Acceleration frequency range | 10Hz~10kHz |
| Speed frequency range | 10Hz~1kHz |
| Displacement frequency range | 10Hz~1KHz |
| accuracy | ± (5% n + 2) words |
| Operating Temperature | 0~50°C |
| Operating Humidity | <90%RH |
| Power | 4 AA batteries |
| Dimensions | 160*68*32mm |
| Weight | 181G (without battery) |
LANDTEK VM-6320 Vibration meter (practical type) Packing list
Host X1, magnetic suction seat X1, Piezoelectric Sensors X1, probe (cone) X1, probe (ball) X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
