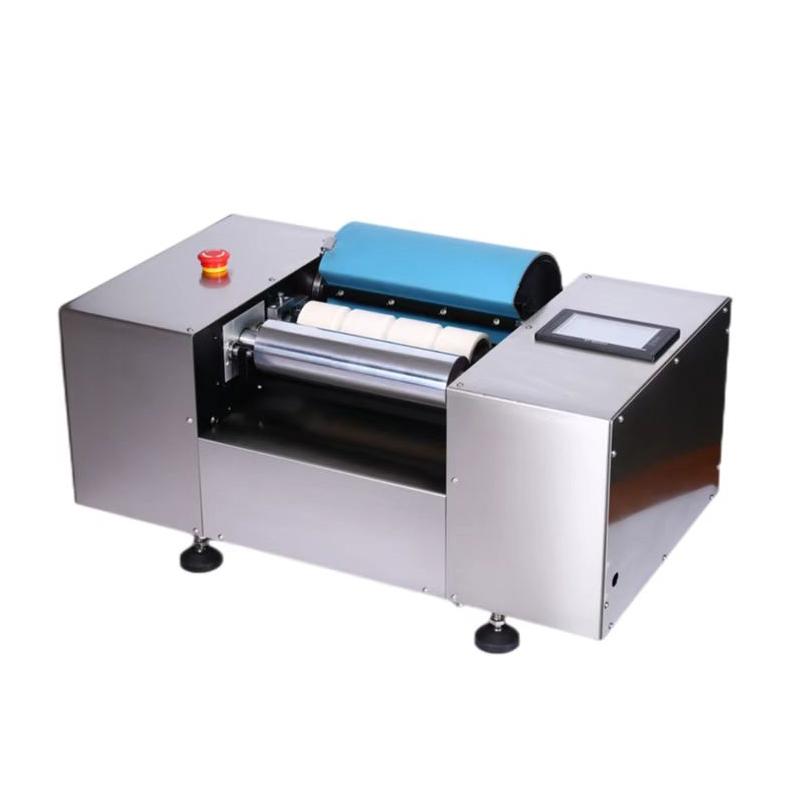

Offset ink colorimeter NBC-225 Printing ink adaptability, spot color four-color Printing ink colorimeter
Suitable for UV Printing, Printing offset ink spot color proofing, gold and silver cardboard, etc., automatic ink leveling, adjustable Printing pressure and speed, Printing area 4 - primary color sample, effective size of color bar 45 * 225mm * 4.
Smtser
NBC-225
-
JINPUTE JPT-2023 Intelligent Ink Proofer Double Station Discharge
$ 3661.44 -
China single printing gravure plate Proofer (servo) NBC-120 dot printing gravure plate Proofer electric model
$ 4918.15 -
CHINA Gravure Color Display Machine NBC-130
$ 5561.83 -
IMT-301A Gravure Printing ink Spot Color Proofer (Pneumatic)
Login -
HUINUO Intelligent CP235-A Automatic Eight-Color Display Instrument, Offset Ink Proofer
$ 7217.00
The offset printing ink color development instrument simulates the Principle of the printing machine. It is suitable for UV printing, gold and silver cardboard, etc., and improves the stability of spot colors for ordinary printing, packaging, ink factories and other enterprises.
feature of product
1. Automatic ink distribution, stable operation, precision machining.
2. Ink distribution time and speed can be set.
3. The printing pressure and speed can be adjusted, and the printing speed has 3 gears: low, medium and high.
4. Ink distribution speed: low, medium, high, 3 settings, 4 colors can be proofed each time.
5. Suitable for printing offset printing ink spot color proofing, 4 primary color areas, 4 light color areas, easier to compare colors, easy to use.
6. Cooperate with spectrodensitometer to use color measurement to detect ink hue, wet and dry, gloss, and Lab value.
working conditions
1.1 Technical requirements such as equipment working and operating environment, voltage, humidity and temperature, normal temperature working environment, voltage not higher than 220v.
2. Technical requirements and configuration
The main function
According to certain technical requirements, the ink is embossed onto the paper substrate, and the printing effect of the ink under different conditions is tested. The printed color bars can be subjected to various tests (such as glossiness, color density, measured color data "LAB/CH value", comparison, etc.) to identify the printing adaptability of the ink, the hue difference of the spot color or four-color ink, etc.
Application
paper, ink, plastic film
Smtser NBC-225 Offset ink colorimeterSpecifications
| LIST | VALUE |
|---|---|
| Rubber roller material | Material can be applied to ordinary offset inks and vegetable oil-based inks |
| uniform ink rate | High speed: 20rpm, medium speed: 15rpm, low speed: 10rpm |
| Effective size of color bar | 45 * 225Mm * 4 pieces |
| Printing area | 4 pieces - primary color sample, 45 * 225/piece (4 pieces in light color area) |
| Embossing paper specifications | Paper Film thickness: 0~ 2.5mm; Plastic Film thickness: ≤ 1mm |
| Steel roller speed | Cleaning: 100~ 800rpm; even ink: 100~ 1000rpm |
| uniform ink rate | High speed: 1000rpm, medium speed: 800rpm, low speed: 650rpm |
| pressure regulation | 0~2mm |
| Overall power | 400W |
| input voltage | 220V 50Hz |
| weight | Net weight about 80kg |
Smtser NBC-225 Offset ink colorimeter Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
