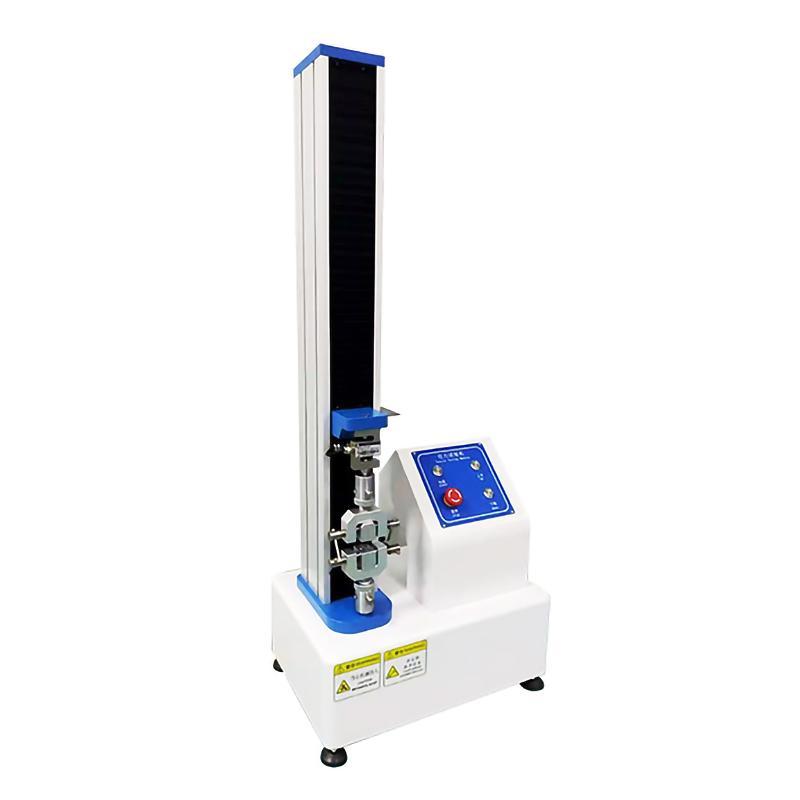

YOUKE YK3659 Touch screen single column tensile machine 5KG
YOUKE YK3659 touch screen single column tensile machine test capacity 5KG, force Precision is better than +/- 1.0%, force resolution 1/10000, effective force range 1~ 100% F. S, YK3659 touch screen single column tensile machine can test various materials and finished products, work in progress of physical performance.
YouKe
YK3659
-
CHENCHI WDL-30 Tensile machine 3000N
$ 1466.81 -
Patek Jushi LY-7012B Single column universal material Tensile machine 300KG
$ 1362.59 -
Haibao ZYD-300 desktop microcomputer-controlled universal testing machine, range 300N/30Kg
$ 2662.21 -
Haibao LYD-1T gantry microcomputer-controlled universal testing machine, range 10KN/1000KG
$ 3662.97 -
HBO ZTD-500 Desktop Spring Special Testing Machine, Range 500N
$ 3117.38
Functional Overview
This machine is suitable for industries such as rubber and plastics, paper products, color printing and packaging, adhesive tapes, bags and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. It can test the physical properties of various materials, finished products, and semi-finished products. You can choose various fixtures to do tensile, compressive, holding, holding, bending, tearing, peeling, adhesion, and shear tests.
This product changes the shortcomings of traditional material testing machines, such as bulky machine, complicated operation, and single performance. The calculation speed is high, and the test results can be displayed on the LCD or printed out by the printer. The product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.
YouKe YK3659 Touch screen single column tensile machineSpecifications
| LIST | VALUE |
|---|---|
| display | liquid crystal display |
| Force measurement accuracy | Better than +/- 1.0% |
| Force resolution | 1/10，000 |
| Effective force range | 1~100%FS |
| Deformation indication accuracy | Better than +/- 1.0% |
| Test speed range | 50~ 500mm/min, can be adjusted arbitrarily |
| Test maximum stroke | Up to 600mm without fixture |
| Effective test space | Front and rear 120mm, left and right < unk > |
| Force unit | kgf, gf, N, kN, Ibf |
| stress unit switching | MPa，kPa，kgf/cm2，Ibf/in2 |
| Deformation unit switching | mm，cm，in |
| Downtime mode | Upper and lower limit safety settings, emergency stop button, specimen damage sensing |
| Machine size | 50×45×130cm(W×D×H) |
| Machine weight | About 75kg |
| Power System | AC speed control motor |
| Power | AC220V, 50/60Hz, 10A or specified |
YouKe YK3659 Touch screen single column tensile machine Packing list
Host X1, power cord X1, wrench X1, fixture X1, hexagonal wrench X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
