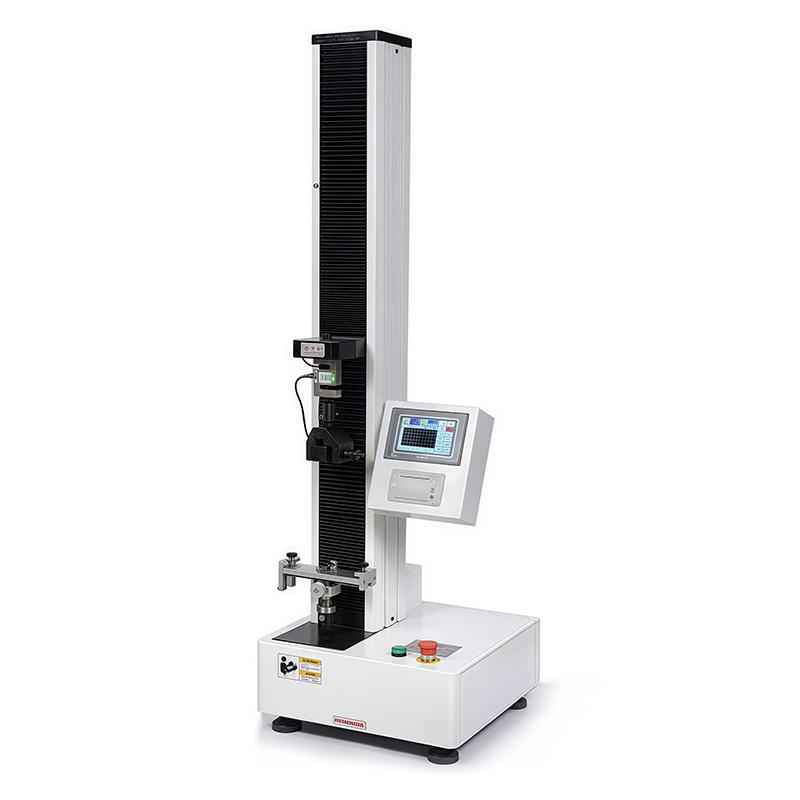

CHENCHI WDB-02 Tape Peel strength tester 200N Stroke 400mm
Five-inch color LCD touch screen, test force 0~ 200N, accuracy level +/- 1%, stretch space 400mm, with overload, leakage, limit protection functions.
-
LD-BL-A 180 ° Peel strength tester
$ 1544.41 -
LD-BL-A 180 ° Peel strength tester
$ 1544.41 -
LD-BL-A 180 ° Peel strength tester
$ 1544.41 -
LD-BL-A 180 ° Peel strength tester
$ 1544.41 -
Huitao CSI-401 Velcro Fatigue Strength Tester
$ 929.24
Introduction
The instrument is a peel strength testing machine designed for colleges and universities and scientific research institutes. The design of the main body and auxiliary equipment of the testing machine integrates excellent technology, with beautiful appearance, convenient operation and stable and reliable performance. Various test methods such as tensile strength, 180°peel strength, and sealing strength can be realized; the system controls the rotation of the servo motor through the speed control system through the Chenchi controller, and after being decelerated by the deceleration system, it goes up through the precision screw auxiliary belt beam, Descending, to complete the tensile mechanical properties test of the sample, no pollution, low noise, high efficiency, and a wide range of speed regulation. The machine is widely used in the inspection and analysis of materials in construction materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Good test equipment.
Reference standard
GB 8808, GB/T 1040.1, GB/T 1040.2, GB/T 1040.3, GB/T 1040.4, GB/T 1040.5, GB/T 4850, GB/T 12914, GB/T 17200, GB/T 16578.1, GB/T T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB /T 1130.
labchen WDB-02(400mm) Peel strength testerSpecifications
LIST | VALUE |
---|---|
test force | 200N |
Operation mode | Five-inch color LCD touch screen, |
Standard test force | 0-200N |
Measurement range | 2%~ 100% of the maximum test force |
Accuracy level | ±1% |
Test force accuracy | +/- 1% better than indication |
Deformation display error | ≤±(50+0.15L) |
test force | Minimum resolution 0.01N |
Displacement measurement resolution | 0.01mm |
Deformation accuracy | Better than +/- 1% |
LCD content | Test force, displacement, peak value, running state, running speed, etc |
stepless speed regulation | Stepper Motor and Control system |
Drive mode | Stepper motor, synchronous belt drive |
Motor Power | 150W |
Speed regulation range | 1mm/min~500mm/min |
test stroke | 400mm (can be customized) |
stretch space | 400mm (can be customized) |
Host size | 500*420*1550mm |
Test protection function | Overload protection, leakage protection, limit protection |
Power supply | 220V 50Hz |
weight | About 80Kg |
labchen WDB-02(400mm) Peel strength tester Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
