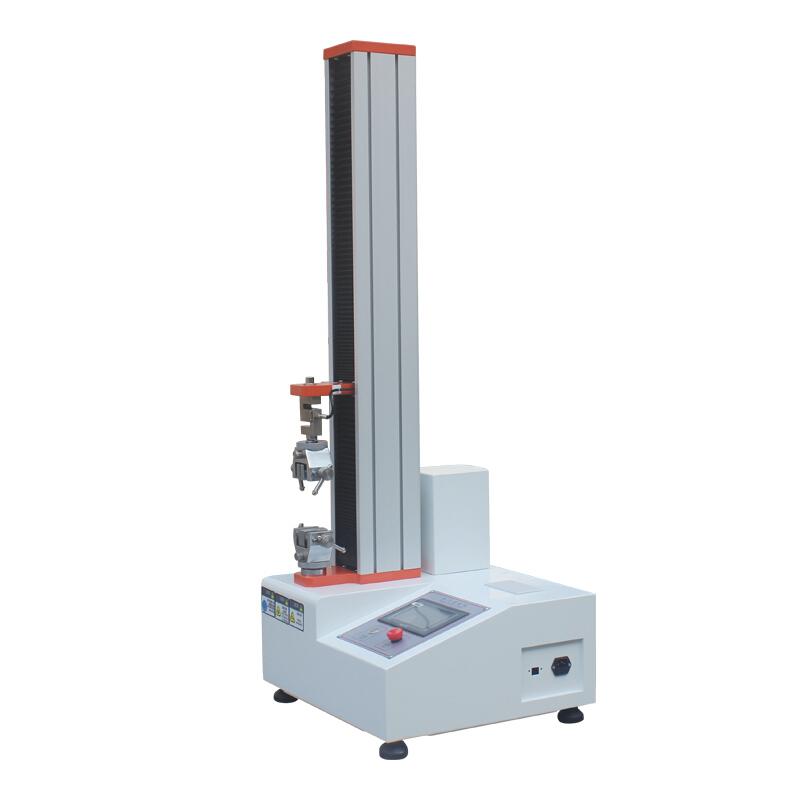

CHINA NBC-1021 Touch screen single column Tensile Strength Tester 50KG

Applications

Suitable for tensile strength, peel strength, deformation rate, breakage force, peel force of plastic films, composite films, adhesives, adhesive tapes, medical patches, protective films, release papers, rubber, artificial leather, paper fibers and other products , opening force and other performance tests.

Application

Tapes, automobiles, ceramics, composite materials, construction, food and medical equipment, metal, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials

Features

• Stable and accurate operation

• Easy to operate and efficient

• LCD touch screen control

• Data can be printed directly

• Upper and lower limit protection switches, overload protection

Advantages

1. The control system adopts a fully digital AC motor with frequency control to ensure high efficiency of the transmission system, smooth transmission, low noise, and speed accuracy controlled within 0.5%;

2. The machine structure adopts paint-treated aluminum extrusion sealing plate with built-in high-precision, low-resistance, gap-free double-roller screw and guide column, which improves load efficiency and structural rigidity;

3. The product has stable and reliable performance, high measurement accuracy, powerful test software and easy to understand operation.

Standard test fixture

Because different product types have different needs , most of them require customized fixtures. 500KG (inclusive) The standard configuration above is a powerful clamp. The powerful clamp can only withstand 200KG and is reinforced with 300~400KG (remarks for reinforcement). Please contact customer service to customize the clamp according to the product.

The difference between touch screen and computer Tensile Testing Machine

Touch screen Tensile Testing Machine: It adopts LCD touch screen control, curve display, can automatically calculate the average value of 10 sets of data, and can print data as needed. Please note that the printer cannot print curves because the curves are relatively large. Test parameters can be set as needed.

Computer-type Tensile Testing Machine: computer control, WINDOWS operating system, intuitive control, simple operation, and can output WORD documents. Use translation, comparison and other methods to compare data of multiple curves at the same time ; it also has the function of customizing test methods.

The difference between variable frequency motor and servo motor

Servo motors require different accuracy and power than inverter motors , and their manufacturing processes are different. If the inverter motors do not meet the requirements, you need servo motors. Tensile Testers below 500KG (inclusive) use variable frequency motors , and those between 1 and 30 tons use servo motors .

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
