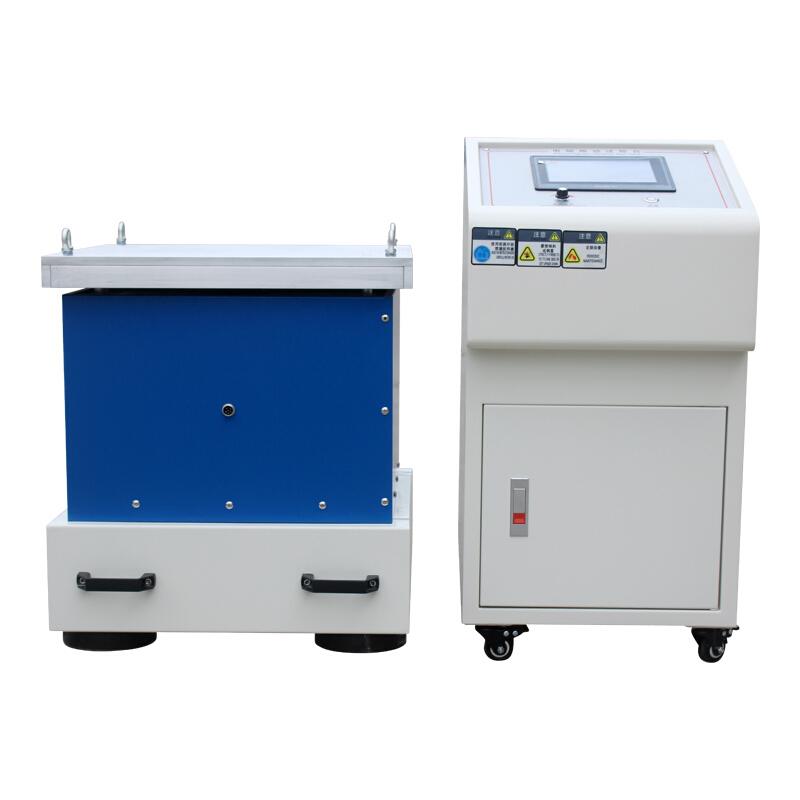

Factory NBC-6S-50 Electromagnetic Shaker Table Six Degrees Integrated

China NBC-6S-50 Electromagnetic Shaker Table Six Degrees Integrated Vibration Tester

With vertical + horizontal + front and rear automatic switching, can run different Frequency vibration direction at the same time, with Linear dispersion display function, you can view Frequency waveform changes at any time, Frequency can be displayed to 0.1HZ, precision 0.1HZ, test Platform size is 500 * 500mm, maximum Acceleration 10G.

Brand

SKU: NB044663

Factory

Model

NBC-6S-50

Price

$ 4608.96

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Factory shopSE

Information

Datasheet RFQ Contract Video Catalog

What else did others buy

Genuinegoods

Factory NBC-6S-50 Electromagnetic Shaker Table Six Degrees IntegratedOverview
Specifications
Comments
FAQs

NBC-6S-50

Electromagnetic Shaker Table Six Degrees Integrated

Introduction

Electromagnetic vibration tables are widely used in national defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength testing. The product has a wide range of applications, wide applicability, and effective and reliable test results. Sine wave, frequency modulation, time control.

Features

1. Adopt professional and simple operating technology, fixed frequency, sweep frequency, and program switching at any time

2. With time timing and countdown display functions

3. Touch controller is simple and convenient to operate, which solves the disadvantage of inconvenient operation of digital display.

4. Control parameters are displayed synchronously in real time without manual intervention.

5. The base of the machine adopts a vibration isolation device, which is easy to install and runs smoothly. There is no need to install anchor screws.

6. Built-in amplitude prediction program and easy amplitude modulation

7. Four points are synchronously excited, and the table vibrates evenly

8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation functions adapt to various test requirements of different industries.

9. Add an anti-interference circuit to solve the problem of interference to the control circuit caused by strong electromagnetic fields.

10. Curve display function, you can check the frequency waveform changes at any time

11. Curves support direct export function

12. Automatic switching of working direction

13. Vibration modes in different running directions can work simultaneously

Factory NBC-6S-50 Electromagnetic Shaker Table Six Degrees IntegratedSpecifications

LIST	VALUE
Test direction	Vertical + Horizontal + Front and Back (automatic switching, can run different Frequency vibration directions at the same time)
Maximum test weight	0-60kg
Platform size	500*500mm
Control mode	PLC touch screen type (the screen directly displays Linear dispersion diagram, with USB interface can directly store data)
Frequency adjustment range	1-600HZ
Precision	Frequency can be displayed to 0.1HZ, precision 0.1HZ
Amplitude	0~ 5Mm (random type)
vibration waveform	sine wave
Maximum Acceleration	10G
function	Sweep frequency, fixed frequency, programmable, time control
Frequency doubling function (0.01Hz)	8 segments multiply increase ① low to high frequency ② high to low frequency ③ low to high and then to low frequency/recyclable
Logarithmic function (0.01Hz)	① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency --3 modes logarithmic/recyclable
Power	AC220V 50HZ

Factory NBC-6S-50 Electromagnetic Shaker Table Six Degrees Integrated Packing list

host X1, power cord X1, manual X1, warranty card X1, certificate X1, fixed tie X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
