        Factory NBC-1001B Small universal material Tensile Tester

        CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine

        The force range is 10~500N, and the test stroke is 350mm, which can measure tensile compression, bending disbonding, displacement, tearing, insertion force, tensile damage force and other tests.

        Brand
        SKU: NB044669
        China Factory
        Stock
        Loading…
        Price
        $ 613.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          FactoryLOGO

          Factory shopSE

          Information
          Datasheet RFQ Contract
          What else did others buy
          Genuinegoods

          • Factory NBC-1001B Small universal material Tensile TesterOverview

          • Specifications
          • Comments
          • FAQs
          NBC-1001B
          Small universal material Tensile Tester
          • CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine
          • CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine Figure 1
          • CHINA NBC-1001B Desktop Tensile Tester Electric tensile machine Figure 2
          The force range is 10~500N, and the test stroke is 350mm, which can measure tensile compression, bending disbonding, displacement, tearing, insertion force, tensile damage force and other tests.

          Introduction

          The Tensile Testing Machine is mainly suitable for testing plastic sheets, pipes, paper, leather, plastic films and rubber, wires and cables, waterproof membranes, metal wires and other materials. With different fixtures, it can measure tension and compression, bending peeling, displacement, tearing , insertion and extraction force, tensile strength and other tests, the Tensile Testing Machine is a satisfactory testing equipment for industrial and mining, commodity inspection and arbitration, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

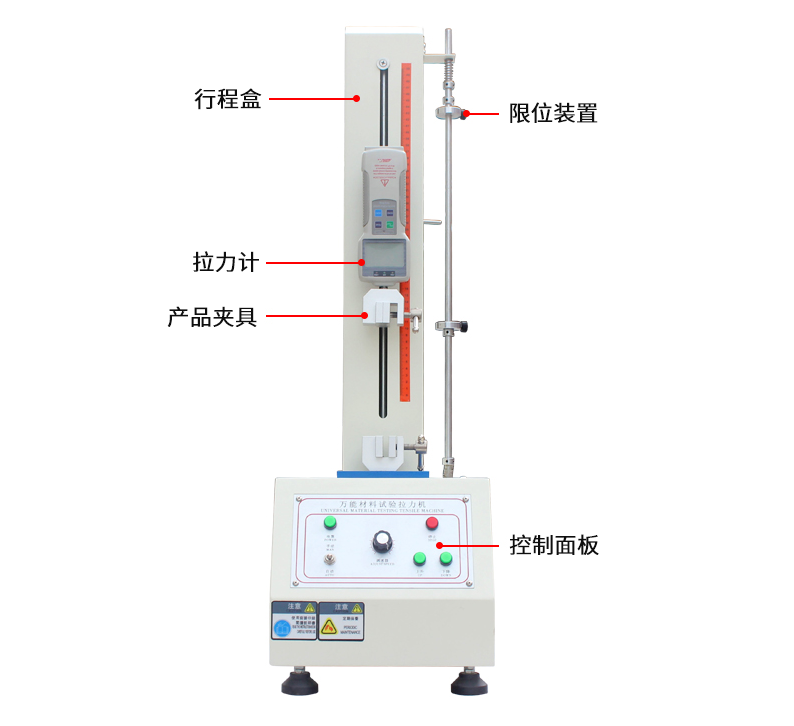

          Product Structure

          Details of domestic (CN) brand NBC-1001B small universal material Tensile Testing Machine Figure 1


          VS

          Factory NBC-1001B Small universal material Tensile TesterSpecifications

          LIST VALUE
          Force Measurement Range 10~500N（50KG)
          effective travel 350mm
          induction method Force Gauge
          Test speed range 5~ 300mm/min adjustable
          Power system AC motor
          Dimensions 560*345*1080mm
          Weight 30Kg
          Power AC220V single phase

          Factory NBC-1001B Small universal material Tensile Tester Packing list

          machine X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          I want to test the tensile strength of Plastic film, do you have a suitable Universal Testing Machine recommendation?
          [A]
          The NBC-1001B Small Universal Testing Machine is recommended. It is suitable for testing Plastic films because its Measurement range of 10-500N (about 50KG) can accurately capture the tensile force of the film, the effective stretching Travel 350mm is enough to complete the standard tensile test, and the adjustable speed of 5-300mm/min can simulate the stretching process under different conditions to ensure the accuracy and Reliability of the test results.
          [Q]
          Our laboratory needs a device to test the tension and insertion force of Wire and cable. Which instrument is better?
          [A]
          The NBC-1001B is ideal for tensile and plug force testing of wires and cables. This Universal Testing Machine can be tested with corresponding fixtures (such as tensile fixtures and plug force fixtures). Its Force Gauge induction method can accurately measure force values. AC motors provide stable power. It is suitable for industrial and mining enterprises, R & D institutions and other scenarios. It can effectively evaluate the Mechanical Properties and durability of Wire and cable.
          [Q]
          Do paper tearing and wire tensile damage test, how to choose the function?
          [A]
          For paper tearing and wire tensile destructive force experiments, NBC-1001B functionally meets the needs. It realizes a variety of tests by changing fixtures (such as tearing fixtures and tensile fixtures). The force range covers 10-500N, which can accurately measure the tearing force of paper and the tensile destructive force of wire. The adjustable speed range allows you to set the test conditions according to the material characteristics to ensure the professionalism and efficiency of the experiment. It is a common equipment in engineering mass supervision stations and other departments.
