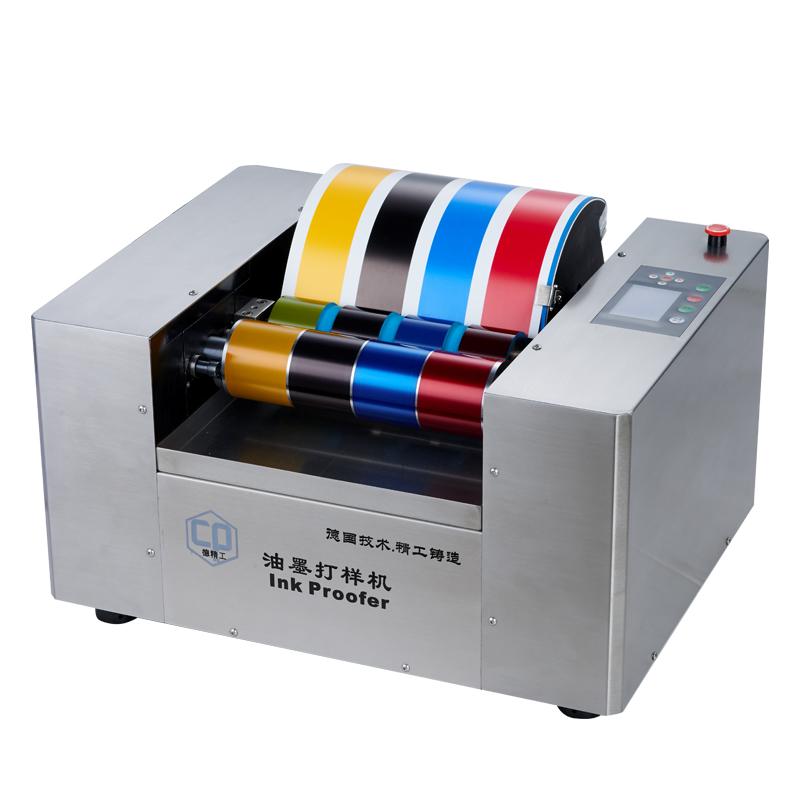

CP225-B offset ink color display instrument, offset printing Ink Proofer
The ink leveling speed is 450, 600, 800 rpm, and the speed is directly adjusted in three gears. The ink leveling time can be adjusted from 1 to 120 seconds. The ink leveling pressure can be adjusted accurately by disassembling the device shell according to the usage of the rubber roller.
HuiNuo
CP225-B
-
CHINA Flexographic Color Developer NBC-100
$ 8259.14 -
Offset ink colorimeter NBC-225 Printing ink adaptability, spot color four-color Printing ink colorimeter
$ 3201.67 -
HUINUO intelligent CP120 inks quantifier 0.0012CC
$ 320.45 -
CHINA Gravure Color Display Machine NBC-130
$ 5561.83 -
MODERNER Rubber roller inks printing proofing machine accessories
$ 565.66
Introduction
CP225-B Offset Ink Spreader, as a commonly used equipment in the printing industry, has a series of advanced technical parameters, designed to provide efficient and accurate color display and ink leveling function. From power and color spreading speed to ink leveling pressure, every detail has been carefully designed to meet the needs of the printing process.Whether it is in terms of color display or ink uniformity, the equipment can meet the various needs of professional printing houses, improve printing quality and production efficiency.
Features
The CP225-B can display different color bars at the same time, including 45×210mm (4 bars), 106×210mm (2 bars) and other options, providing a variety of display options to suit the needs of different printing jobs.
Compact structure, small footprint, easy to arrange in the workplace.
The device provides three speed adjustments of 450, 600 and 800 rpm on the control panel, and also supports stepless frequency conversion speed regulation in the device to ensure that the ink equalization effect is more accurate.
It provides three color development speeds of 12, 18 and 25 rpm on the control panel, and supports stepless frequency conversion speed regulation to meet the color development needs of different printing materials.
The equipment provides adjustable ink mixing time from 1 to 120 seconds, which can be flexibly adapted to different printing process requirements.
According to the thickness of the printed material, the color spreading pressure can be adjusted to ensure the accuracy and stability of color display.
The equipment has a built-in function of precisely adjusting the ink leveling pressure, which can be adjusted according to the use of the rubber roller to ensure that the ink leveling effect is lasting and stable.
The equipment has the function of factory initialization, which can restore the device to the factory state through simple operation during use to ensure the accuracy and stability of parameters.
The colorimeter can be configured with ordinary or UV ink rollers to meet the needs of different printing materials and processes.
HuiNuo CP225-B INKS colorimeterSpecifications
| LIST | VALUE |
|---|---|
| Instrument Power | AC220V 50HZ 380W |
| Net weight of the whole machine | 85KG |
| Display the number of color bars at one time | 45 × 210mm (4 pieces), 106 × 210mm (2 pieces), 106 × 210mm /45 × 210 mm/45 × 210mm (3 pieces) Optional |
| Dimension | 550*450*330mm |
| ink rate | On the control panel of the device at 450, 600, 800 rpm, the third gear is directly regulated. The device shell can be disassembled and the speed can be adjusted by stepless frequency conversion in the device. |
| color development speed | On the control panel of the device at 12, 18, 25 rpm, the third gear is directly regulated. The device shell can be disassembled and the speed can be adjusted by stepless frequency conversion in the device. |
| ink leveling time | 1 to 120 seconds, adjustable |
| development pressure | Refer to the thickness of the printing material and adjust the color development pressure (-20 to 80) accordingly. Example: 175g copper plate paper thickness is 0.15mm Pressure value: "15" |
| homogeneous ink pressure | According to the usage of the rubber roller, the device shell can be disassembled and precisely adjusted inside the device. |
HuiNuo CP225-B INKS colorimeter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
