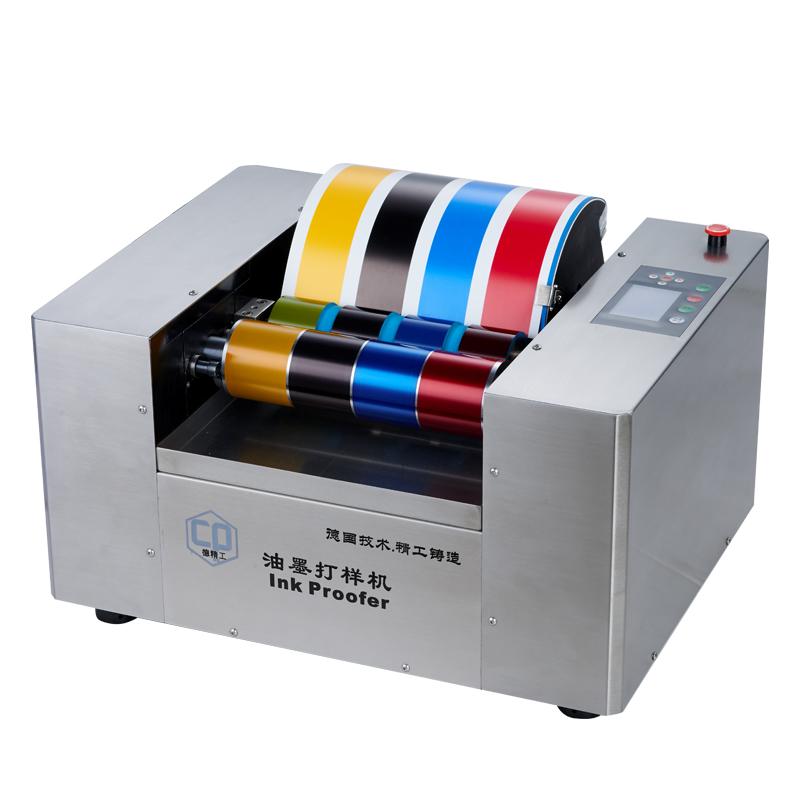

HUINUO Intelligent CP235-A Automatic Eight-Color Display Instrument, Offset Ink Proofer
The number of color strips can be displayed at one time 45 × 210mm + 30mm (8 strips), 106 × 210mm + 30mm (4 strips), 106 × 210mm + 30mm /45 × 210mm + 30mm/45 × 210mm + 30mm (6 strips) Optional, uniform ink speed on the control panel of the device 450, 600, 800 rpm, three direct speed regulation.
HuiNuo
CP235-A
-
China single printing gravure plate Proofer (servo) NBC-120 dot printing gravure plate Proofer electric model
$ 4918.15 -
YOUKE YK2205 four color offset plate ink color matching instrument printing Proofer
$ 3416.23 -
IMT-301A Gravure Printing ink Spot Color Proofer (Pneumatic)
Login -
CP225-B offset ink color display instrument, offset printing Ink Proofer
$ 7063.74 -
HUINUO intelligent CP225-A inks color display instrument, plastic printing proofing machine
$ 4918.15
CP235-A automatic eight-color color analyzer is a popular multi-functional color development equipment in the printing industry. Stable and reliable performance, flexible adjustment function and reliable color presentation make it the printing industryreliableChoose. It is suitable for different sizes of printed matter, and the ink leveling speed and color development speed can be adjusted as needed to ensure accurate color presentation. Equipped with intelligent initialization function, it is convenient for users to operate. At the same time, it can be equipped with ordinary or UV ink rubber rollers to meet various printing needs and improve work efficiency and versatility.
peculiarity
Rugged and durable, it is suitable for long-term work
The number of display color bars includes 8 strips of 45×210mm+30mm, 4 strips of 106×210mm+30mm, and a variety of other options to meet the needs of different sizes.
THE COLOR BAR IS EQUIPPED WITH A 30MM SECONDARY COLOR DEVELOPMENT LIGHT COLOR AREA, WHICH MAKES IT MORE ACCURATE WHEN COMPARING INKS AND MAKES IT EASY TO COMPARE THE DIFFERENCES BETWEEN THE TWO COLORS.
Flexible adjustment function for ink blending speed and color development speed. It can also disassemble the equipment shell to realize stepless frequency conversion speed regulation in the equipment, which is more flexible and changeable.
The ink mixing time can be adjusted from 1 to 120 seconds, which can be adjusted according to specific needs.
The color spreading pressure can be adjusted according to the thickness of the printing material, ranging from -20 to 80, which ensures that the color can be displayed vividly and accurately on different materials.
The ink leveling pressure can also be precisely adjusted according to the use of the rubber roller to ensure the stability and uniformity of the ink leveling effect.
With factory initialization function, it can be restored to the factory state during the use of the device to ensure the accuracy and stability of the parameters.
It can be configured with ordinary or UV ink rollers to meet different printing needs and improve the versatility and applicability of the equipment.
HuiNuo CP235-A INKS colorimeterSpecifications
| LIST | VALUE |
|---|---|
| Display the number of color bars at one time | 45 * 210Mm + 30mm (8 pieces), 106 * 210mm + 30mm (4 pieces), 106 * 210mm + 30mm /45 * 210mm + 30mm/45 * 210mm + 30mm (6 pieces) Optional |
| Dimension | 550*450*330mm |
| ink rate | 450, 600, 800rpm, third gear speed regulation |
| color development speed | 12, 18, 25rpm, third gear speed regulation |
| ink leveling time | 1~ 120S, adjustable |
| development pressure | Refer to the thickness of the printing material and adjust the color development pressure (-20~ 80) accordingly. For example, the thickness of 175g copper plate paper is 0.15mm. Pressure value: "15" |
| homogeneous ink pressure | According to the usage of the rubber roller, the device shell can be disassembled and precisely adjusted inside the device |
| Power | 380W |
| Power supply voltage | AC220V 50HZ |
| Net weight of the whole machine | 85KG |
HuiNuo CP235-A INKS colorimeter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
