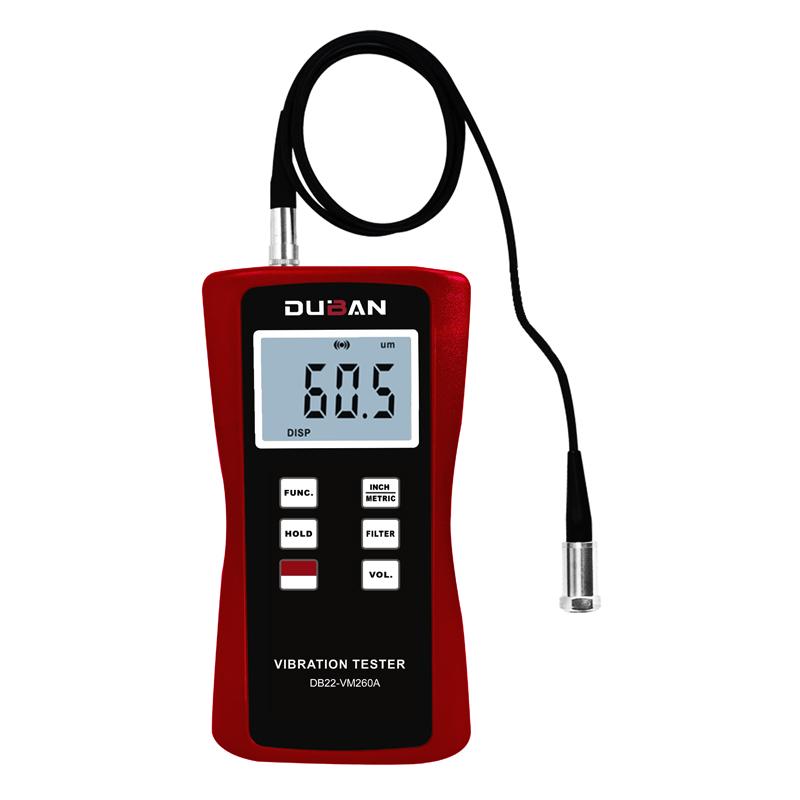

DUBAN DB22-VM260A16 Vibrator, displacement D 0.001~ 16.0mm
Measurement range displacement D: 0.001~ 16.0mm (peak-peak P-P); Speed V: 0.01~ 1600.0 mm/s (true RMS); Acceleration A: 0.1~ 1600m/s ² (peak P); Frequency: 1~ 20,000Hz, Frequency range displacement D: 5Hz~ 1KHz; Speed V: 5Hz~ 1KHz; Acceleration A: 5Hz~ 10KHz.
Duban
DB22-VM260A16
-
LANDTEK VM-6310 Vibration Meter (Basic)
$ 190.26 -
LANDTEK VMC-606 Vibrator calibrator
$ 512.23 -
DUBAN DB22-VM260A Vibration instrument, displacement D 0.001~ 4.0mm
$ 332.85 -
DUBAN DB22-VM260A20 Vibrator, circumferential displacement D 0.001~ 20.0mm
$ 691.62 -
Hypertherm CZ-S Vibration meter, miniature vibration measurement instrument
$ 332.85
Introduction
DB22-VM260A series vibrometers are used in periodic motion measurements to detect imbalances and deviations in moving machinery. Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance. Choose a high-performance accelerometer for accurate, reproducible measurements.
Features
Compliant with international standards ISO2954 for periodic motion measurement to detect imbalances and deviations in moving machinery.
Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance.
Wide frequency range, in acceleration mode, the frequency can reach 5-10KHz.
Piezoelectric accelerometers are used to convert them into vibration signals.
It has the function of bearing condition measurement.
With AC signal output, it is convenient for auscultation and recording.
An optional headset can be used as a stethoscope.
It uses "USB cable output" to communicate with the PC.
Serial models
| Model | DB22-VM260A | DB22-VM260A8 | DB22-VM260A12 | DB22-VM260A16 | DB22-VM260A20 |
| Measuring range | Displacement D: 0.001~4.0mm (peak-peak P-P) | Displacement D: 0.001~8.0mm (P-P) | Displacement D: 0.001~12.0mm (peak-peak P-P) | Displacement D: 0.001~16.0mm (peak-peak P-P) | Displacement D: 0.001~20.0mm (peak-peak P-P) |
| Speed V: 0.01~400.0mm/s (RMS) | Speed V: 0.01~800.0mm/s (RMS) | Speed V: 0.01~1200.0mm/s (RMS) | Speed V: 0.01~1600.0mm/s (RMS) | Speed V: 0.01~2000.0mm/s (RMS) | |
| Acceleration A: 0.1~400m/s² (peak P) | Acceleration A: 0.1~800m/s² (peak P) | Acceleration A: 0.1~1200m/s2 (peak P) | Acceleration A: 0.1~1600m/s² (peak P) | Acceleration A: 0.1~2000m/s² (peak P) | |
| Frequency: 1~20,000Hz | |||||
| Frequency range | Displacement D: 5Hz~1KHz | ||||
| Speed V: 5Hz~1KHz | |||||
| Acceleration A: 5Hz~10KHz | |||||
| Operating conditions | Temperature: 0~50°C | ||||
| Humidity: <90% | |||||
| output | 2.0V AC load resistance 10K | ||||
| size | 140x77x32mm | ||||
| power supply | 4x1.5v AAA7 battery | ||||
| sensor | Piezoelectric vibration sensors | ||||
Duban DB22-VM260A16 VibratorSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | Displacement D: 0.001~ 16.0mm (peak-to-peak P-P); Speed V: 0.01~ 1600.0 mm/s (true RMS); Acceleration A: 0.1~ 1600m/s ² (peak P); Frequency: 1~ 20,000Hz |
| Frequency range | Displacement D: 5Hz~ 1KHz; Speed V: 5Hz~ 1KHz; Acceleration A: 5Hz~ 10KHz |
| operating conditions | Temperature: 0~ 50 ℃; Humidity: < 90% |
| output | 2.0V AC load resistance 10k |
| size | 140x77x32mm |
| power supply | 4X1.5vAAA 7 batteries |
| Sensors | Piezoelectric Vibration Sensors |
| Precision | +/- 5% + 2 words |
Duban DB22-VM260A16 Vibrator Packing list
Host X1, magnetic suction seat X1, probe (tapered) X1, probe (spherical) X1, measurement Sensors X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
