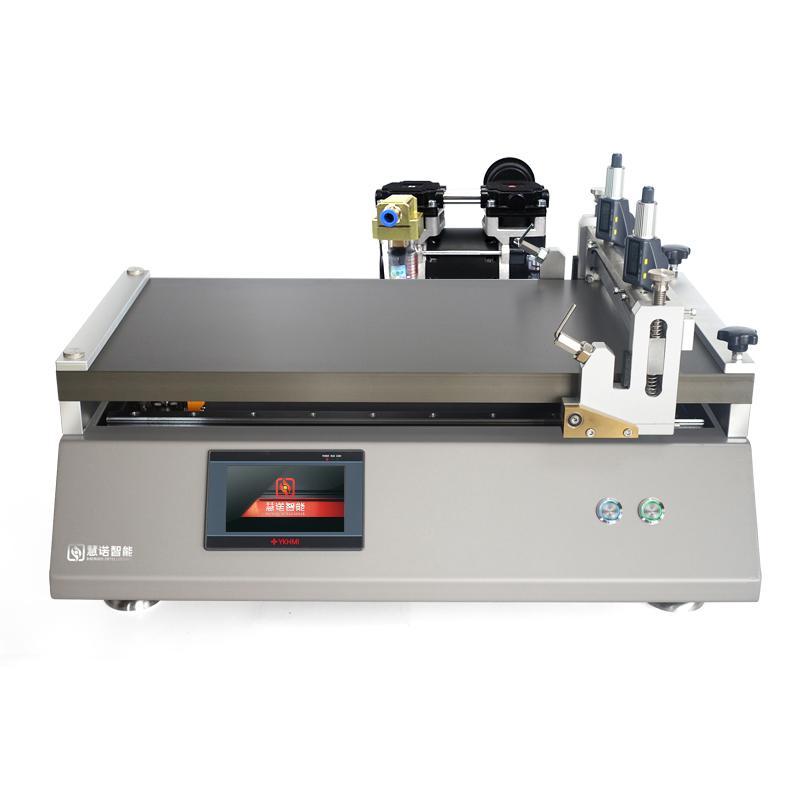

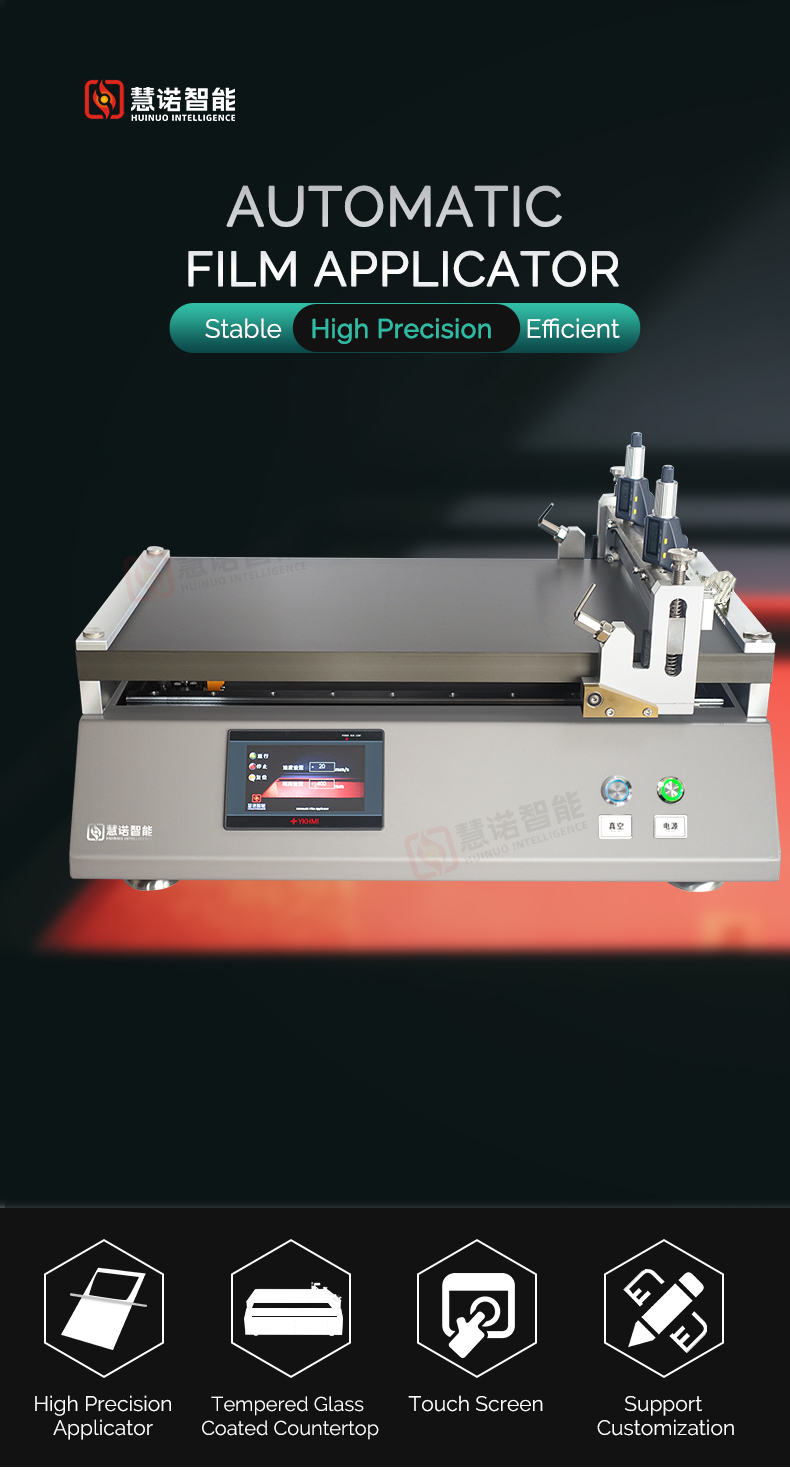

HuiNuo TM3300/05 Bar & drawdown blade heating vacuum adsorption Small Film Applicator 500 * 1000mm
Bar + drawdown blade + heating + vacuum adsorption integrated, effective Spreader area 500 * 1000mm, snap bar installation, simple operation, digital adjustable clamshell drawdown blade cleaning fast, high Smoothness surface hardening treatment aluminum alloy baseplate, wear resistance and anti-corrosion.
HuiNuo
TM3300/05
TM3300/01
TM3300
TM3300pro+
TM3300/04
TM3300AK/03
TM3300AK/02
-
China TBJ-A3-DJ7 Automatic film applicator with automatic feeding system
$ 15289.97 -
China TBJ-X3-DJ8 Automatic lame plating heating Vacuum adsorption Film Applicator lame plating machine
$ 7346.41 -
HuiNuo TM3200/11 drawdown Bar & blade vacuum adsorption coater Effective area 120cm * 100cm
$ 14984.45 -
CHINA TBJ-X2-DJ2 Automatic Film Applicator with Automatic Inking System
Login -
China TBJ-B4-DJ6 metering rod & drawdown blade heating coater with automatic feeding system
$ 9179.54
Overview
The automatic coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically performs coating to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic coating machine is to uniformly apply the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

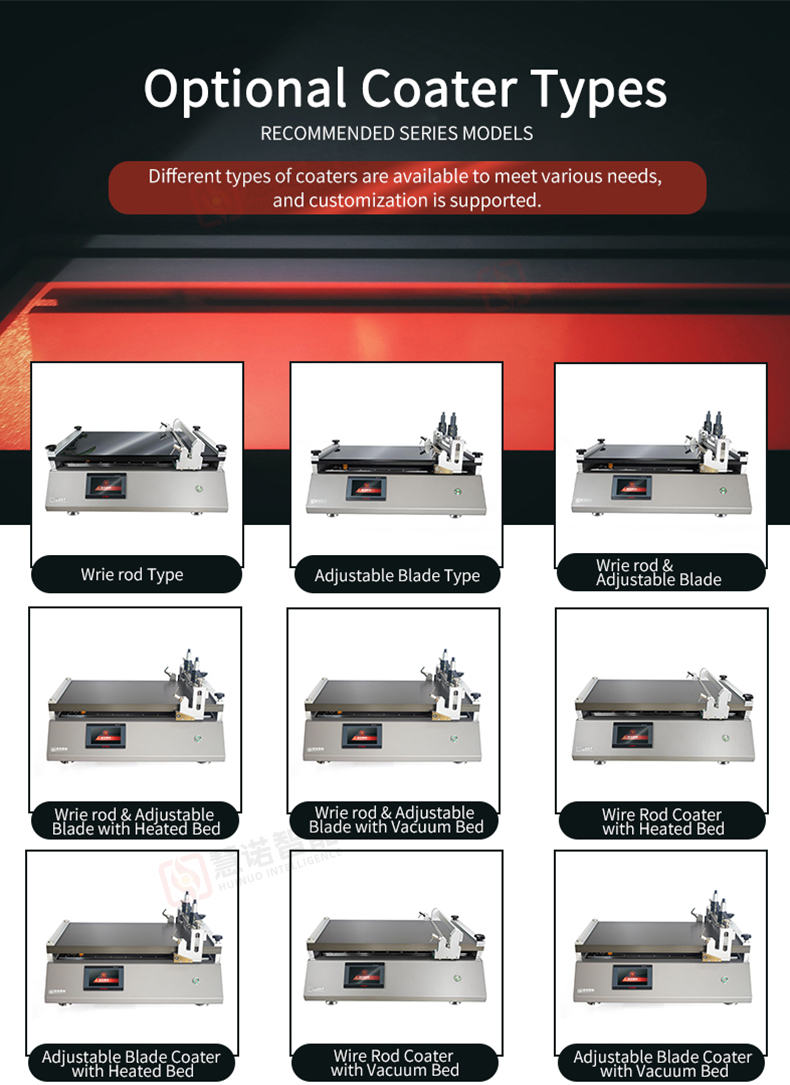

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating. The innovative wire rod installation method and clamshell scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories. It is used for film making and proofing in laboratories such as university research institutes, new materials, lithium electricity, glue, resin, etc.
Product use

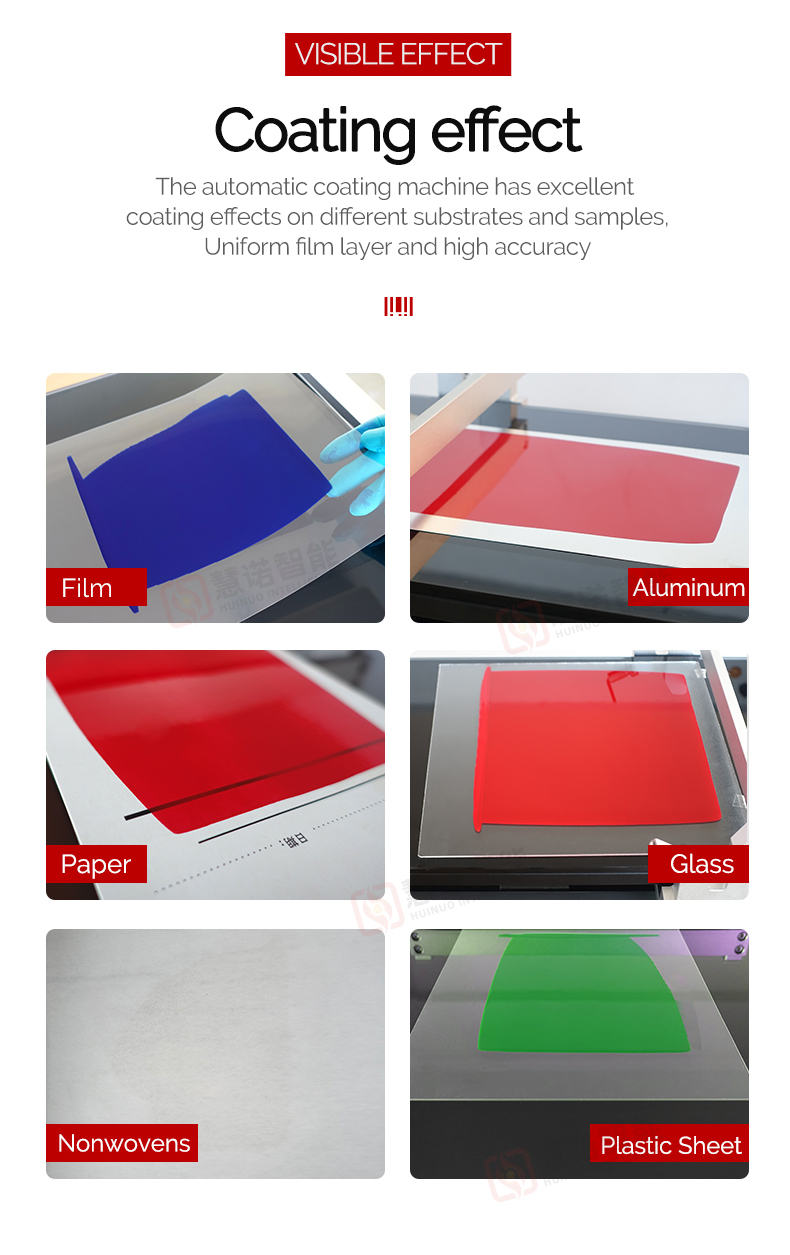

The coating machine is suitable for coating samples of coatings, inks, paints, slurries, lithium batteries, pressure sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

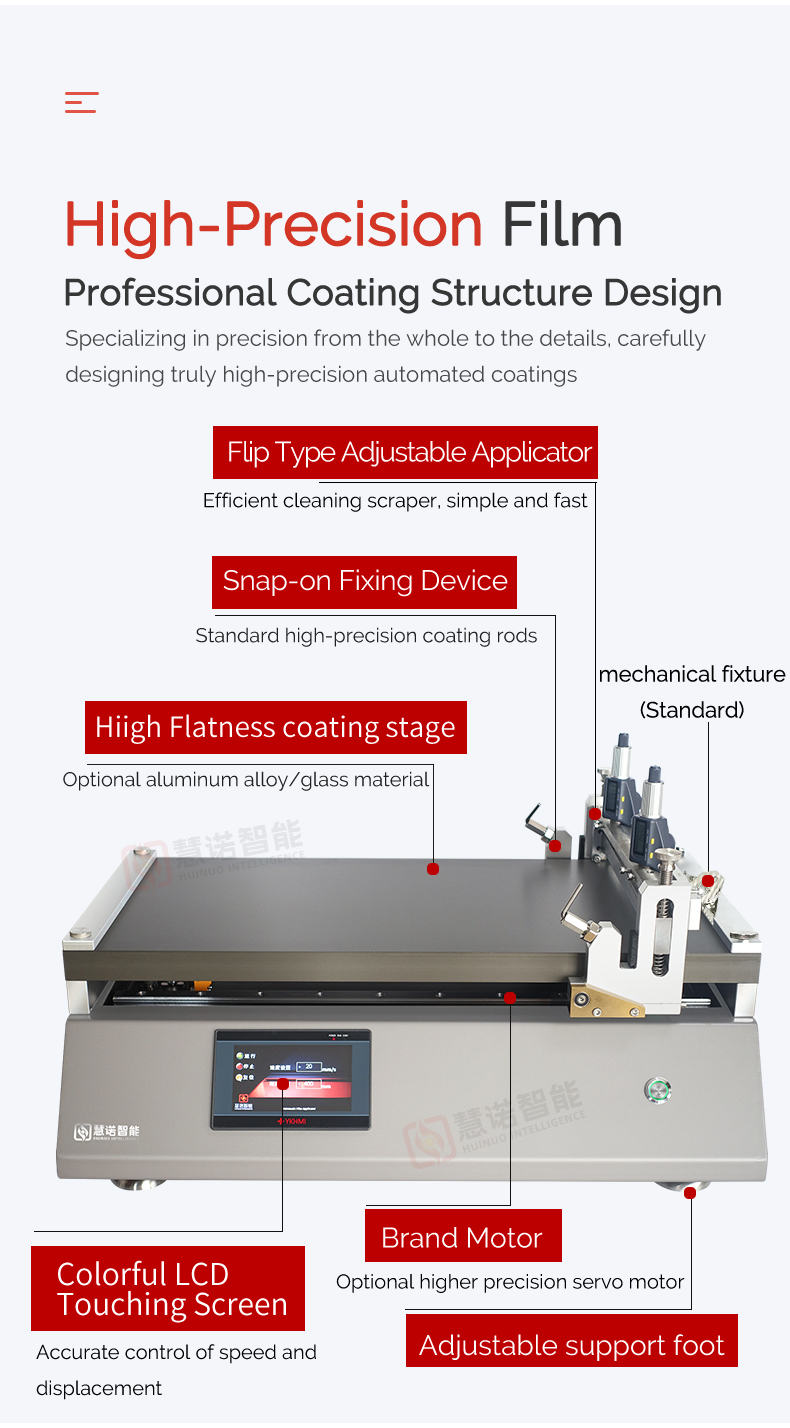

Product features

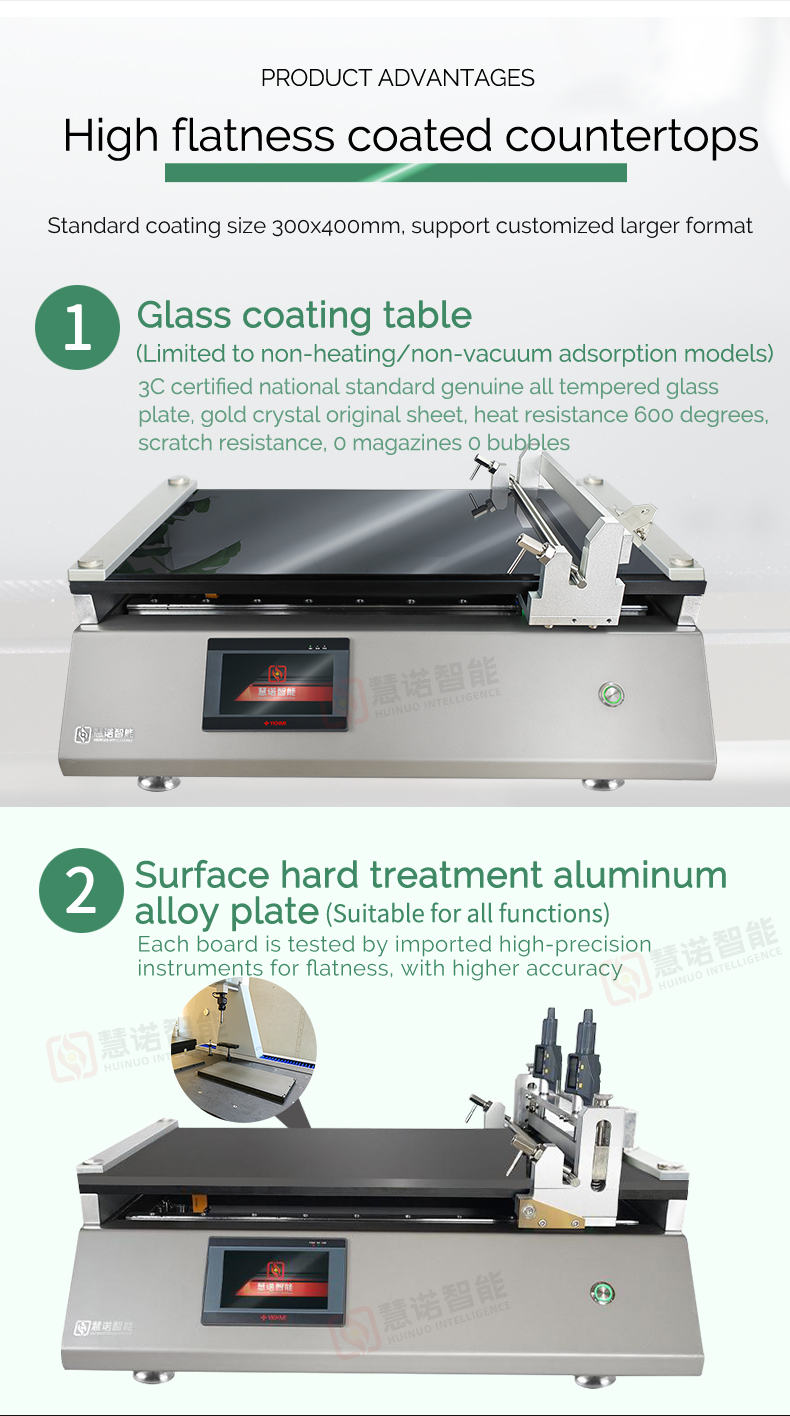

1) The surface of the hard-treated aluminum alloy countertop has high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments.
2) Big brand differential regulator with high film thickness control accuracy

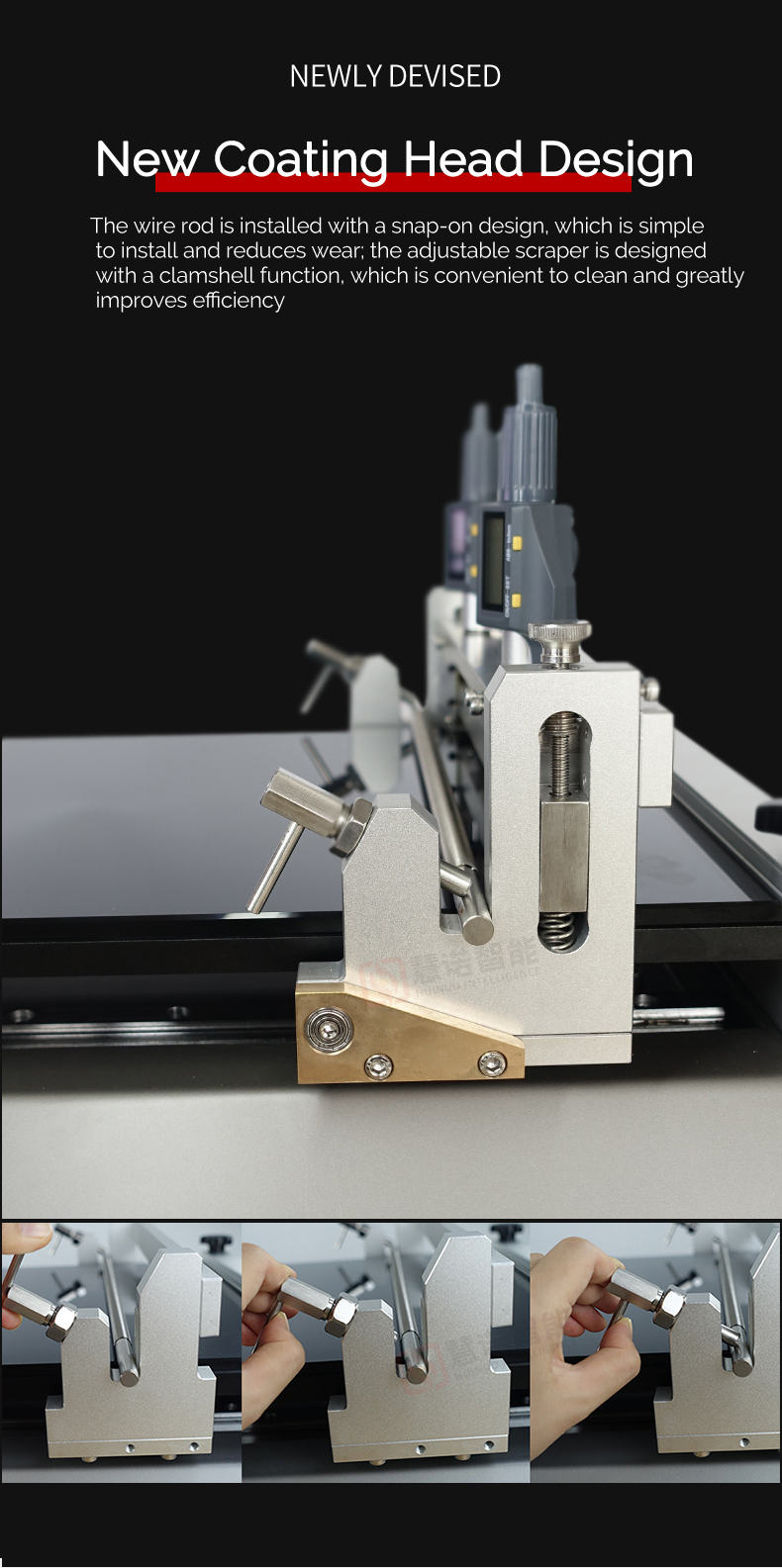

3) Flip type scraper coating head, easy to clean
4) Equipped with a high-precision film applicator, the original imported wire rod has high uniform film accuracy
5) Touch screen control panel, easy to operate
6) Free adjustment of coating length and coating speed

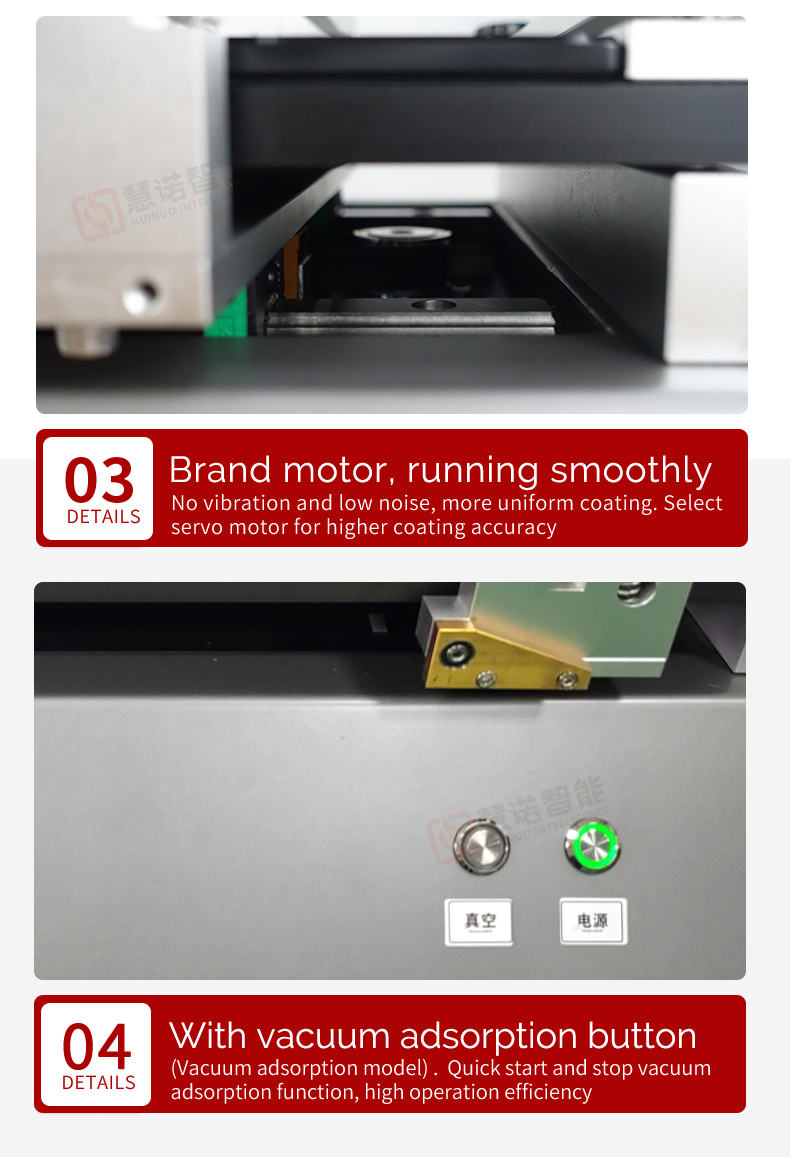

7) With vacuum adsorption and heating functions
HuiNuo TM3300/05 Bar & casting knife heating vacuum adsorption coaterSpecifications
| LIST | VALUE |
|---|---|
| Spreader mode | Bar + drawdown blade |

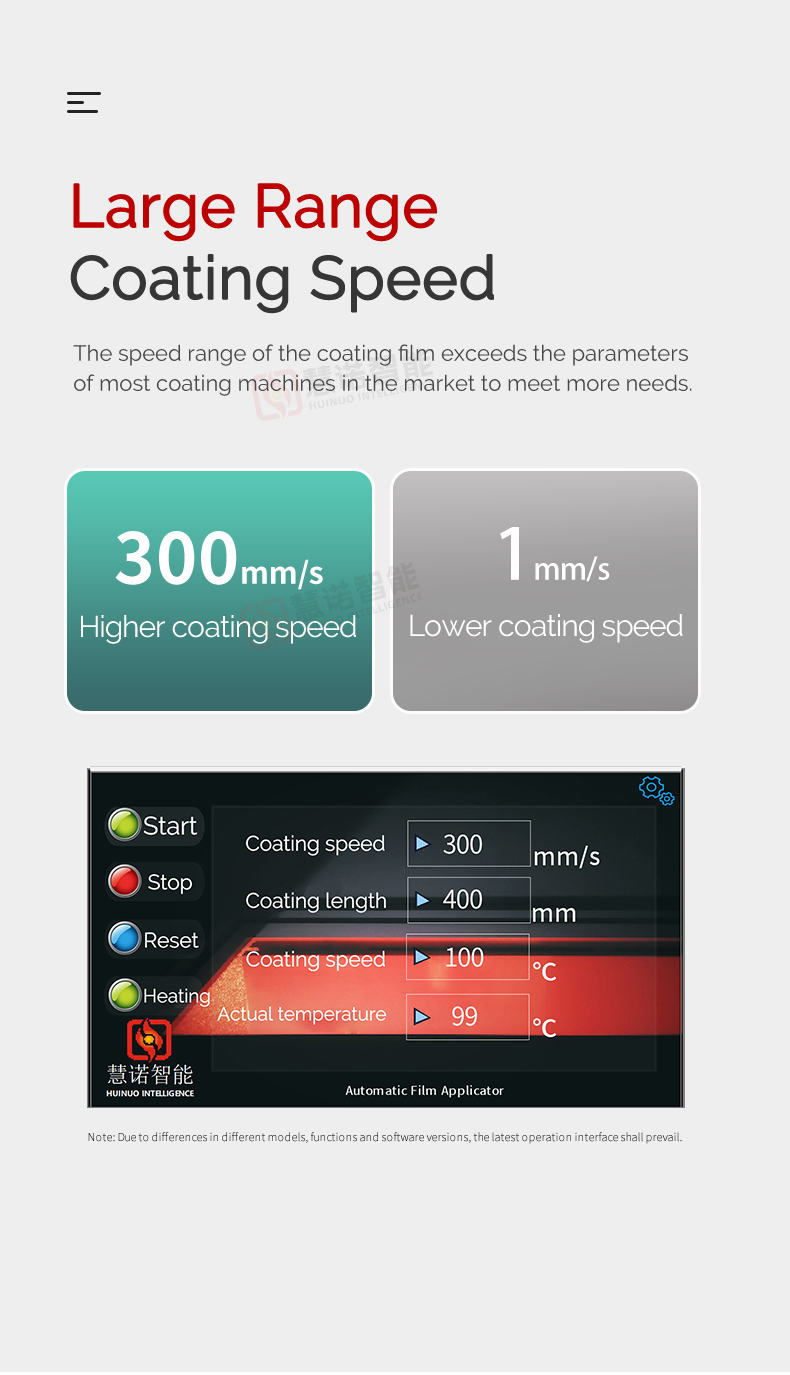

| Spreader rate | 1~ 300Mm/s stepless speed regulation (can be customized) |

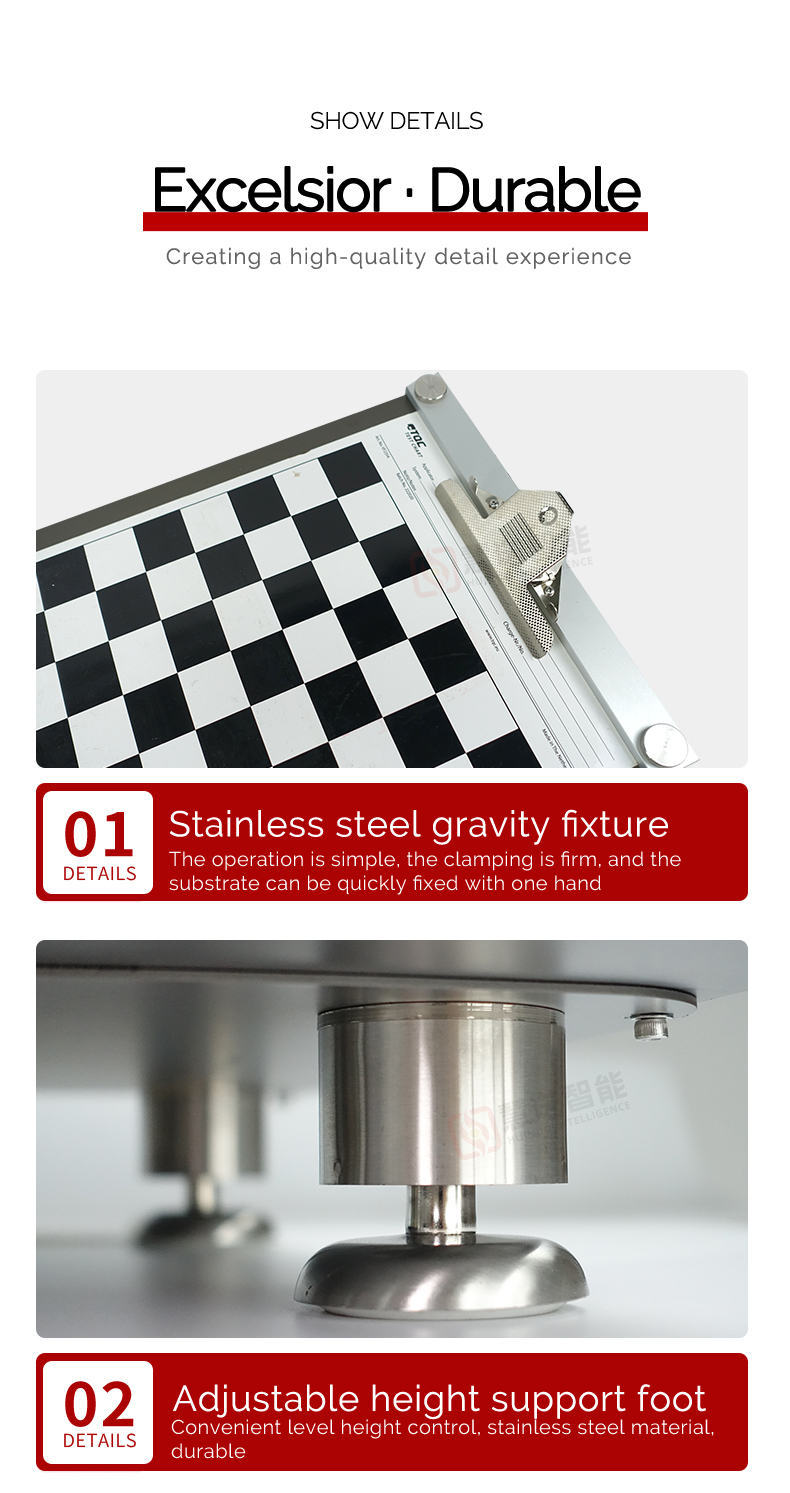

| Substrate fixing method | Vacuum adsorption + fixture |
| Spreader material | Surface hard treatment aluminum alloy |
| Spreader size | 1240*530mm |
| Effective Spreader Area | 1000 * 500Mm (can be customized) |
| Bar Spreader Thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Bar Spreader accuracy | ±0.003mm |
| Drawdown blade Spreader thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 500mm |
| Drawdown blade Spreader accuracy | ±0.003mm |
| Vacuum adsorption size | 1080 * 460Mm (can be customized) |
| vacuum aperture | Φ0.8mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump pumping rate | 5.4m3/h |
| ultimate vacuum | 50KPa |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating Temperature range | RT +~ 180 ℃ (higher temperature can be customized) |
| Temperature uniformity | ±1℃ |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD touch screen |
| Host power supply | 100V~220V/50~60HZ |
| Power | 1800w |
| Dimension | Subject to the actual product |
| weight | Subject to the actual product |
HuiNuo TM3300/05 Bar & casting knife heating vacuum adsorption coater Packing list
Host X1, manual X1, casting knife x1, imported bar X1, certificate X1, vacuum pump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
