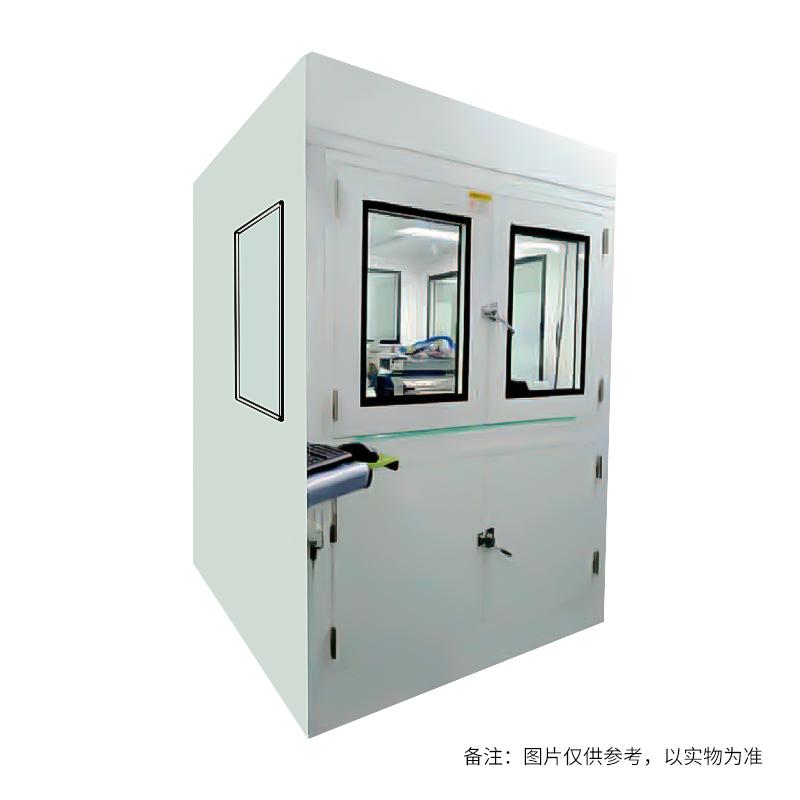

China TBJ-B2-DJ18 Bar & drawdown blade Cabinet Film Applicator Coating size 600 * 800mm
Fully enclosed cabinet structure, bar + drawdown blade Spreader, film thickness 0.1~ 10mm, Coating size 600 * 800mm, Glass plate Spreader countertop, drawdown blade film accuracy +/- 5%.
zy
TBJ-B2-DJ18
-
China TBJ-A1-DJ8 high-precision wire rod Lab Film Applicator Servo Motor Film Applicator
$ 1847.02 -
HUINUO Intelligent TM3300pro+ High-precision Rod & Drawdown Blade coater with Heated Vacuum Table
$ 5971.56 -
China 12-25 Film Applicator Special Differentiator Head, Differentiator
$ 90.27 -
HuiNuo TM 2000/02 Drawdown blade Film Applicator Effective Area 40 * 30cm
$ 2763.58 -
HUINUO Intelligent TM2200Pro/02 drawdown blade vacuum adsorption Small Film Applicator Effective area 500 * 600mm
$ 5818.80
TBJ-B2-DJ18 wire rod scraper type film coating machine is an automatic film coating machine with fully enclosed cabinet structure, using double coating method of wire rod and scraper, coating width 600*800mm, coating thickness range of 0~10mm, coating accuracy 0.001mm, coating table is made of glass, suitable for coating, polymer materials, inks, pastes, resins, etc.
Optional
|
|
|
zy TBJ-B2-DJ18 Bar & casting knife Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Spreader accuracy | ±5% |
| Drawdown blade reading method | digital reading |
| Drawdown blade resolution | 0.001mm |
| Spreader thickness range | 0~ 10Mm drawdown blade can be lifted |
| Spreader rate | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 600*800mm |
| Bar film thickness | Spreader thickness according to bar type |
| Host power supply | 220V 50Hz |
| Total Power | 400w |
| speed control | Infinitely variable speed |
| Spreader material | Glass plate |
| Bar Spreader accuracy | ±5% |
| customizable function | Automatic feeding, air injection system device, UV solid inclusion device |
| Speed regulation accuracy | 1mm/s |
| Dimension | Subject to the actual product |
| Spreader mode | Bar + drawdown blade |
zy TBJ-B2-DJ18 Bar & casting knife Film Applicator Packing list
Film Applicator X1, casting knife X1, imported bar X1, product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
