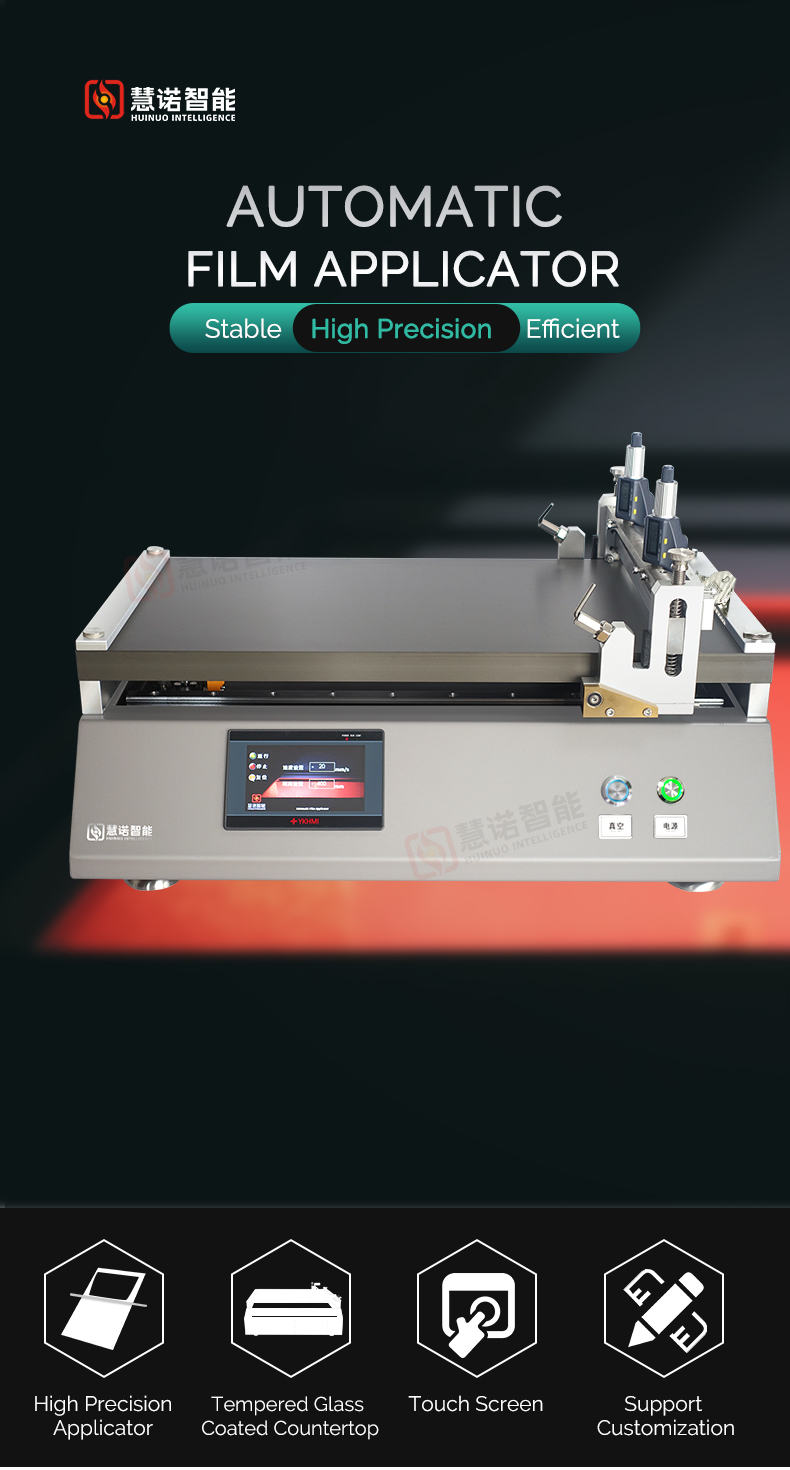

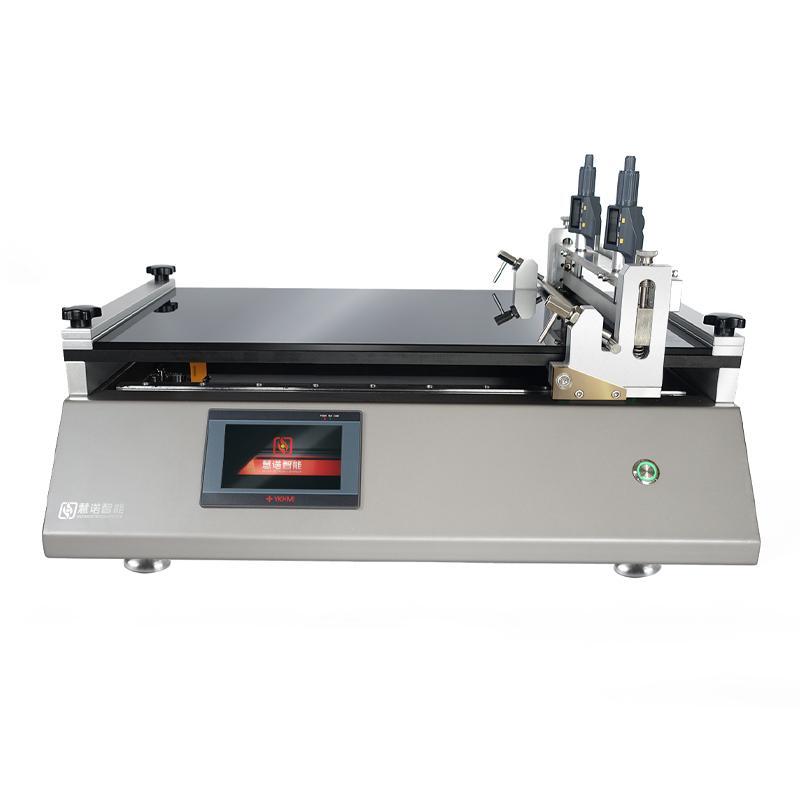

HuiNuo TM3000/09 bar drawdown blade coater Coating size 700 * 700mm

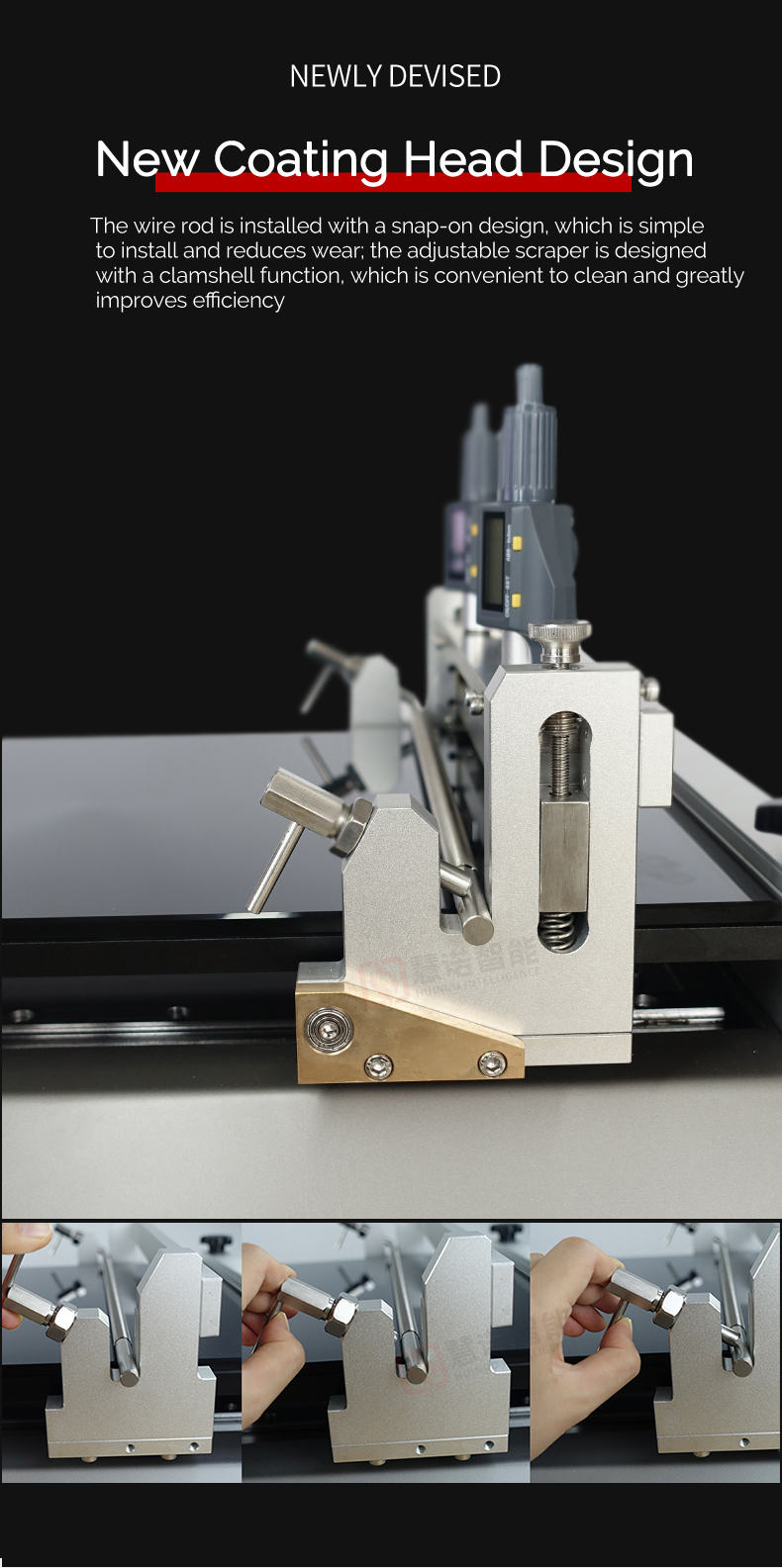

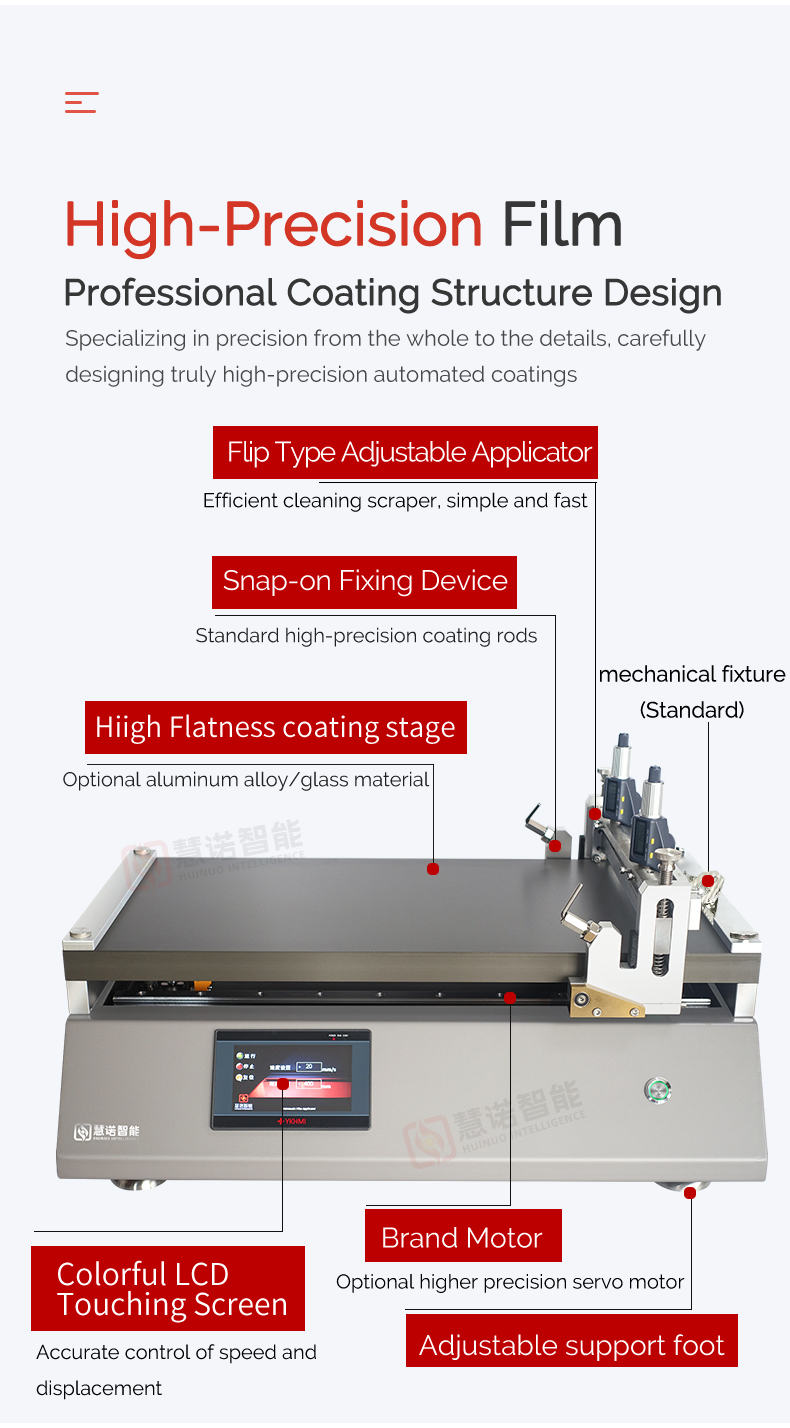

Drawdown Bar & Blade Integrated, Effective Coating size 700 * 700mm, Snap bar groove design, bar installation is simple, clamshell drawdown blade design, easy cleaning, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
HuiNuo
TM3000/09
-
China metering rod & drawdown blade vacuum adsorption heating multifunctional coater TBJ-X3-DJ10 custom model
$ 7054.50 -
HuiNuo TM 2200/02 drawdown blade Vacuum adsorption Film Applicator Adjustable bracket height, effective Spreader area 400 * 400mm
$ 6901.45 -
China NBC-A3-DJ6 Automatic Film Applicator with automatic feeding system
$ 15319.54 -
CHINA Perovskite Cell Automatic Film Applicator Applicator TBJ-GD-JKXB
$ 1850.59 -
China TBJ-X5-DJ9 Floor Type Automatic Film Applicator Automatic Feeding drawdown blade coater
$ 12564.53
HuiNuo TM3000/09 Bar drawdown blade coaterSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Bar + drawdown blade |

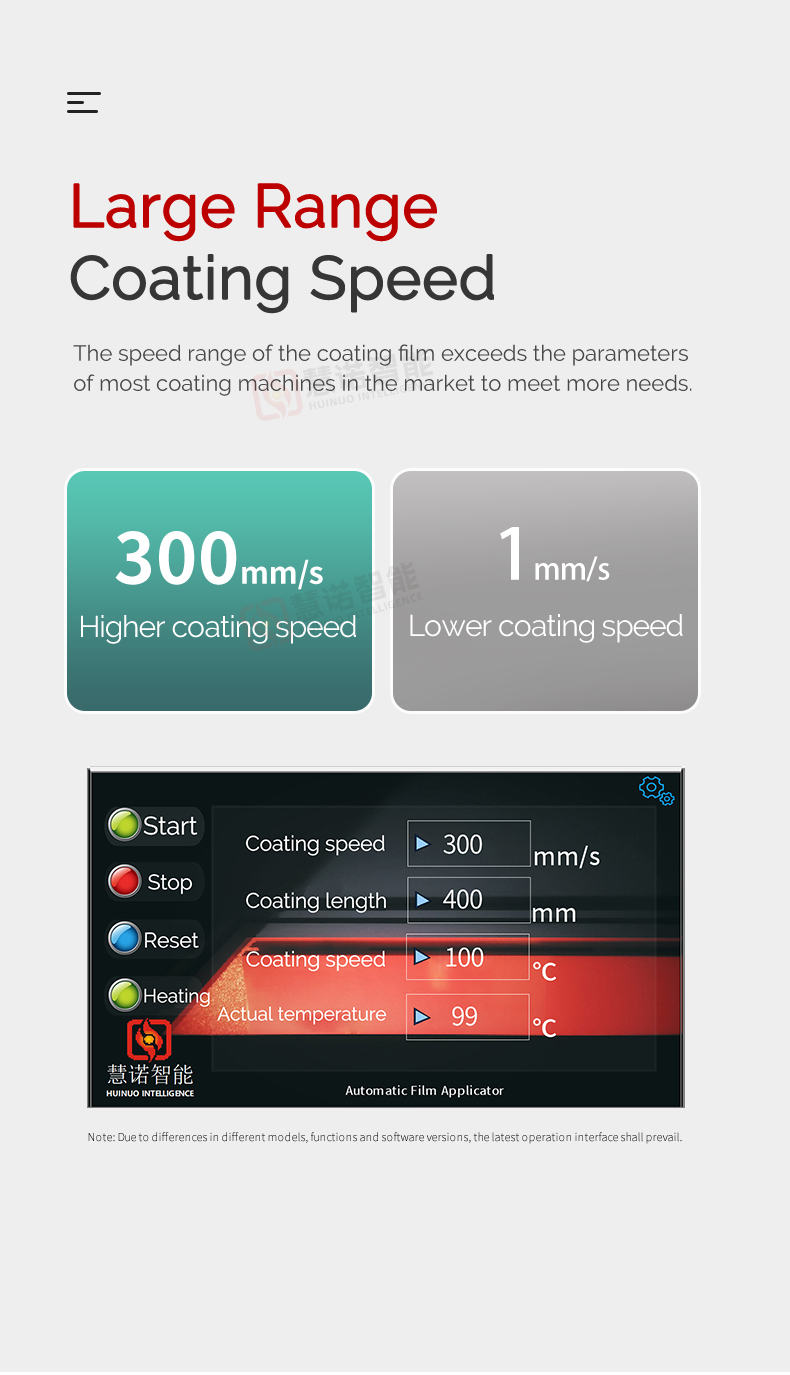

| Coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

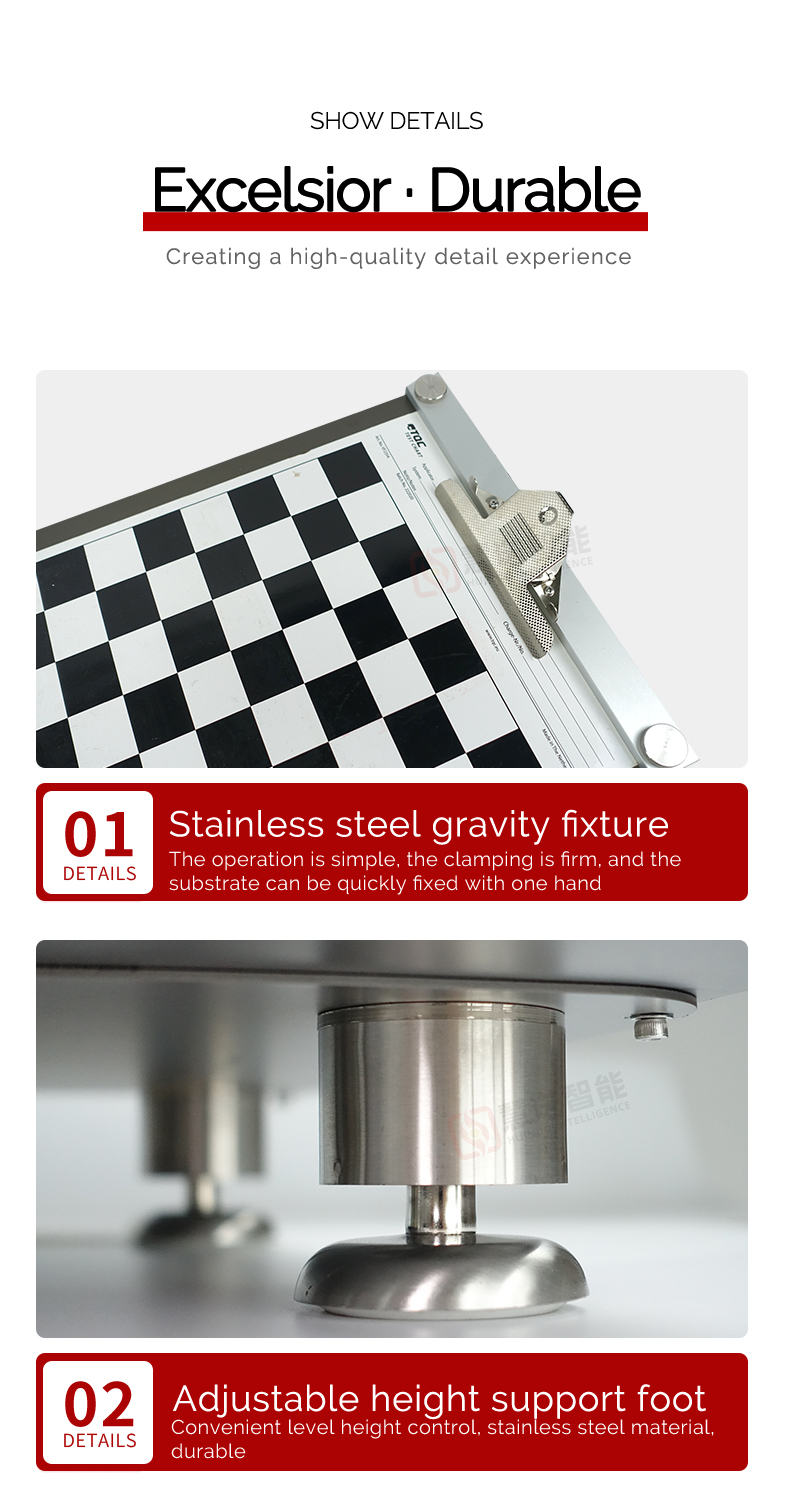

| Substrate clamping method | fixture |

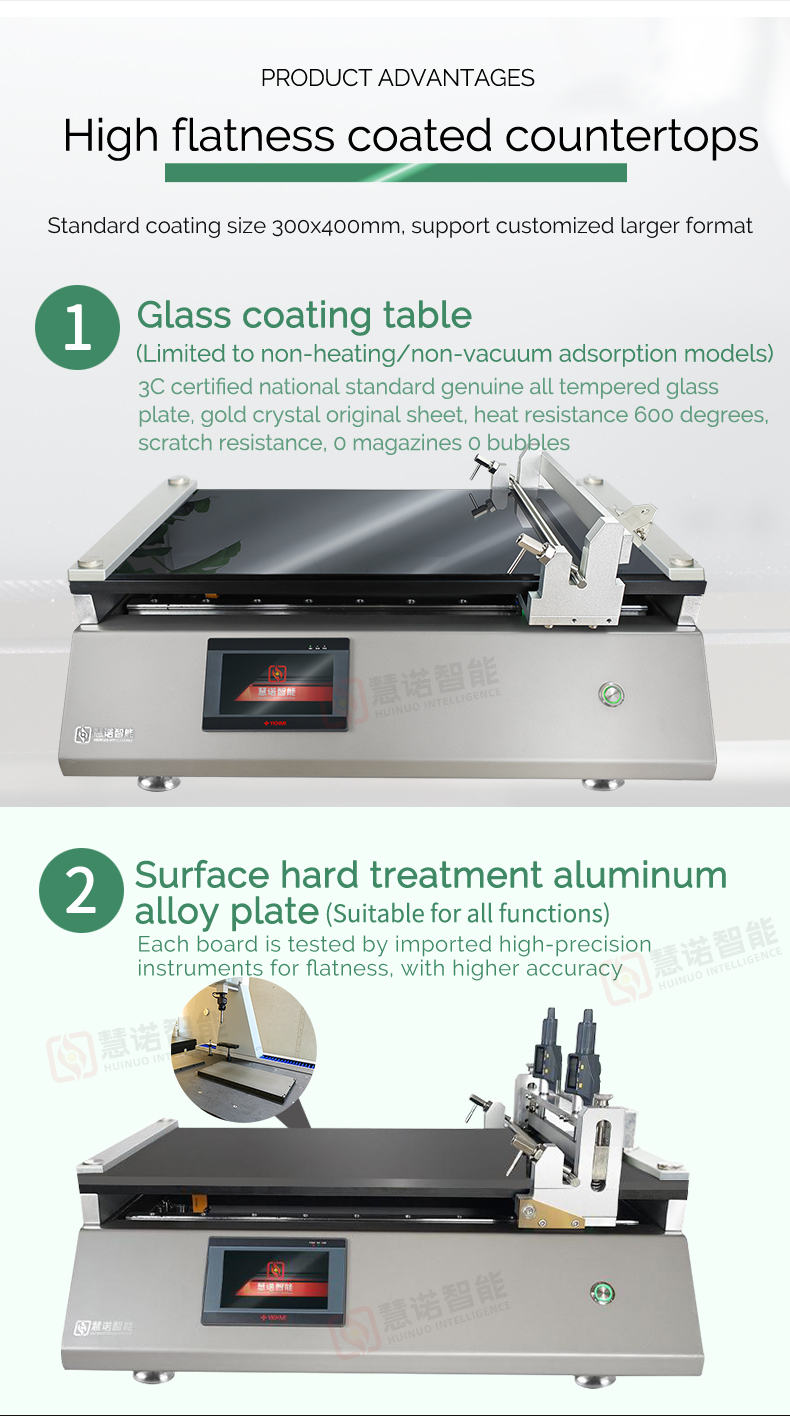

| Coating table material | Glass plate |
| Coating table size | 940*730mm |
| Effective coating Area | 700 * 700Mm (can be customized) |

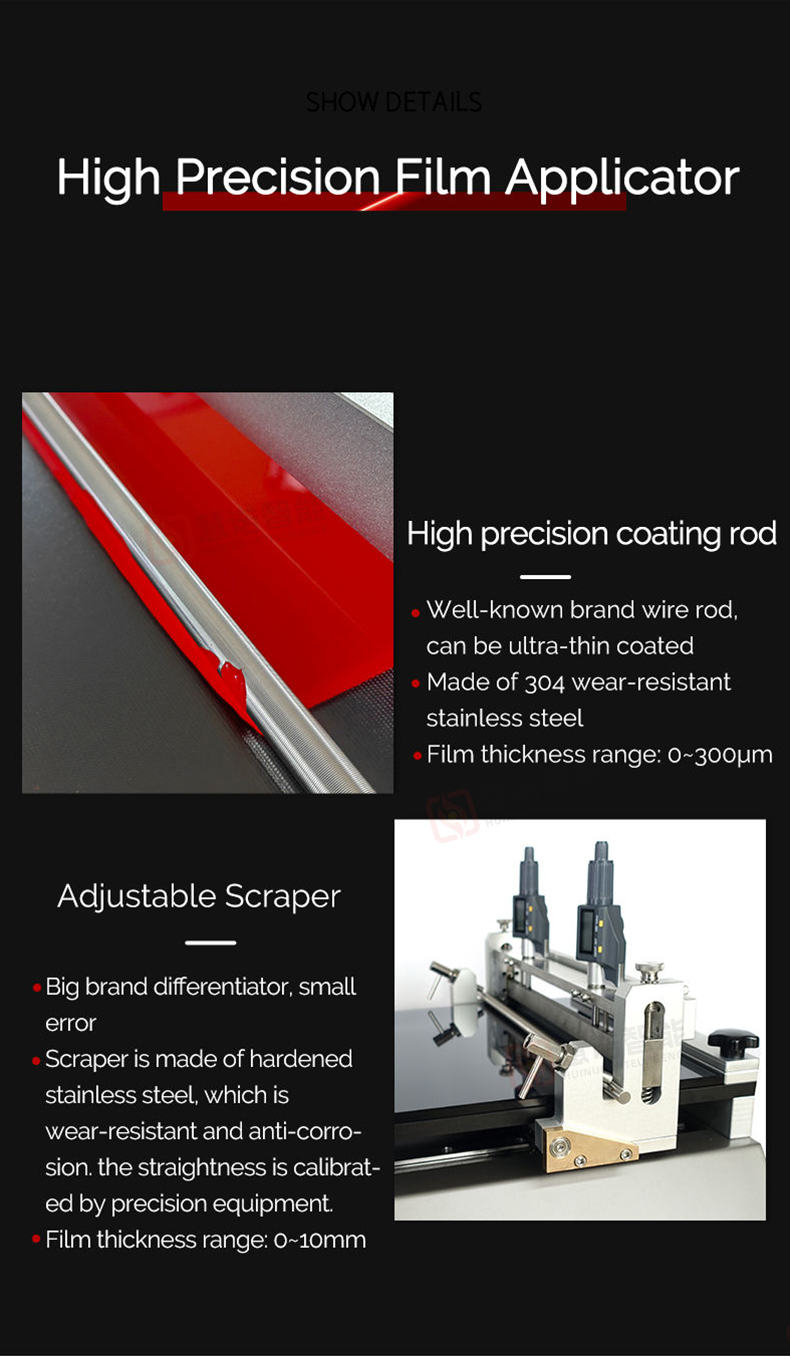

| Mayer Rod Thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Bar accuracy | ±0.001mm |
| Drawdown blade thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 700mm |
| Drawdown blade accuracy | ±0.003mm |
| Power | 400w |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD touch screen |
| Host power supply | 100V~220V/50~60HZ |
| Dimension | 960*840*430mm |

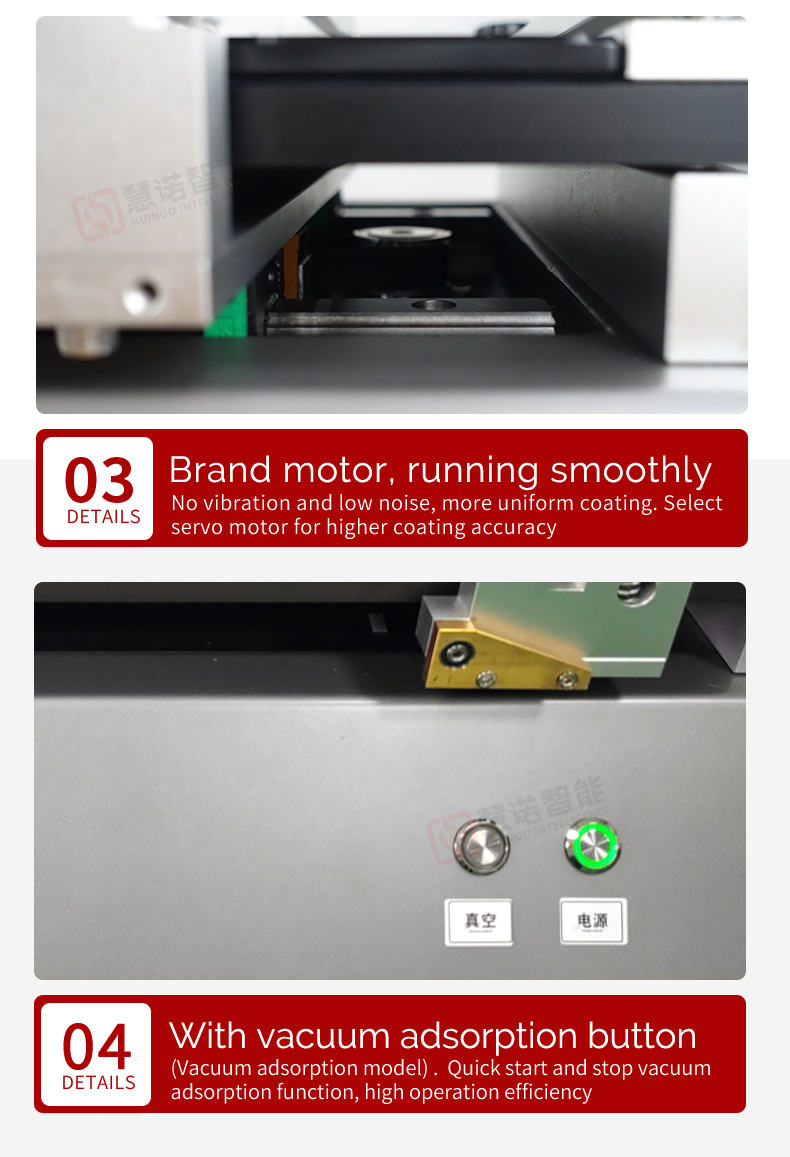

| optional feature | Heating, vacuum adsorption |
HuiNuo TM3000/09 Bar drawdown blade coater Packing list
Host X1, manual X1, fixture X1, drawdown blade x1, import bar X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
