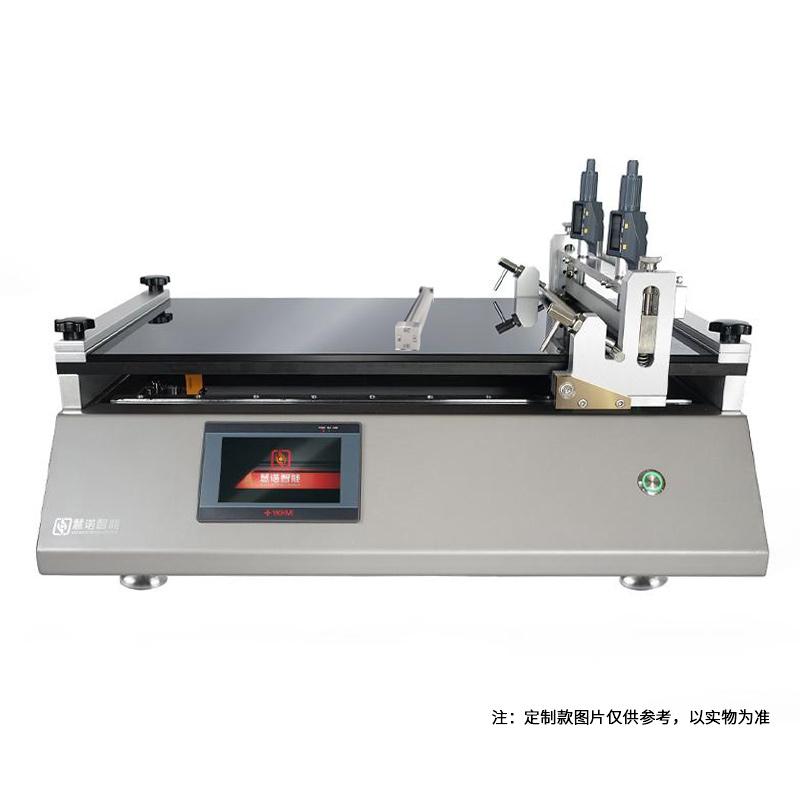

HuiNuo TM 2000/02 Drawdown blade Film Applicator Effective Area 40 * 30cm
Coating method Drawdown blade, Spreader head adjustable thickness Drawdown blade + 4-sided Applicator, effective Spreader area 400 * 300mm (customizable), Drawdown blade application width 300mm, Drawdown blade accuracy +/- 0.003mm.
HuiNuo
TM2000/02
-
China Experimental Automatic Film Applicator Vacuum adsorption + wire rod + drawdown blade + heating TBJ-GDHO-JKXB
$ 3258.71 -
China TBJ-A3-DJ9 Floor Type Automatic Film Applicator with Automatic Feeding System + Waste Recycling Tank
$ 18380.66 -
HuiNuo TM3000/11D drawdown Bar & blade coater (floor model) Effective area 120 * 60cm
$ 6136.16 -
TQC AB4320 Automatic Film Applicator with Dual Channel Vacuum Table
Login -
HuiNuo TM 2200/04 Drawdown blade vacuum adsorption coater small size size 21 * 15cm
$ 3381.15
product description

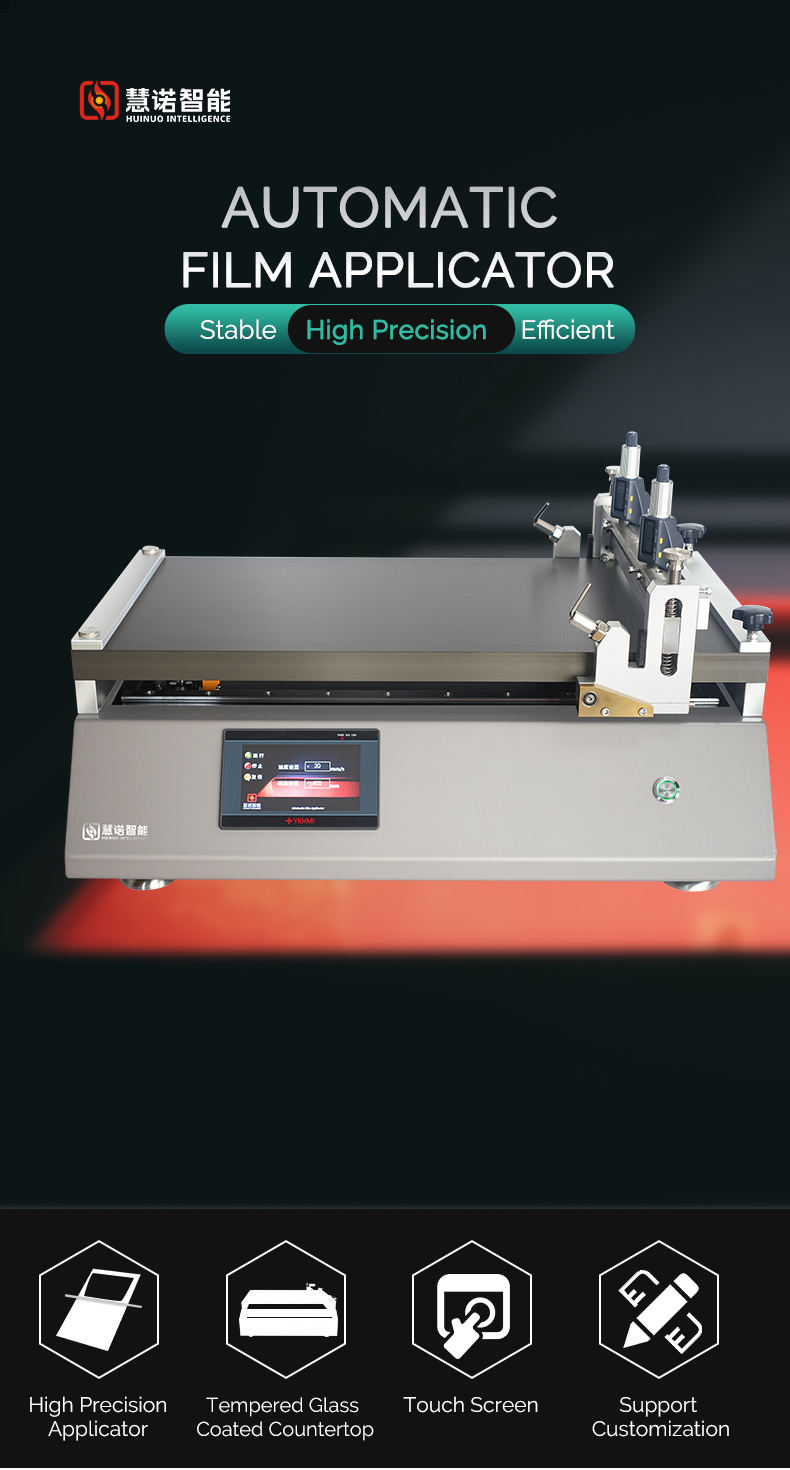

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

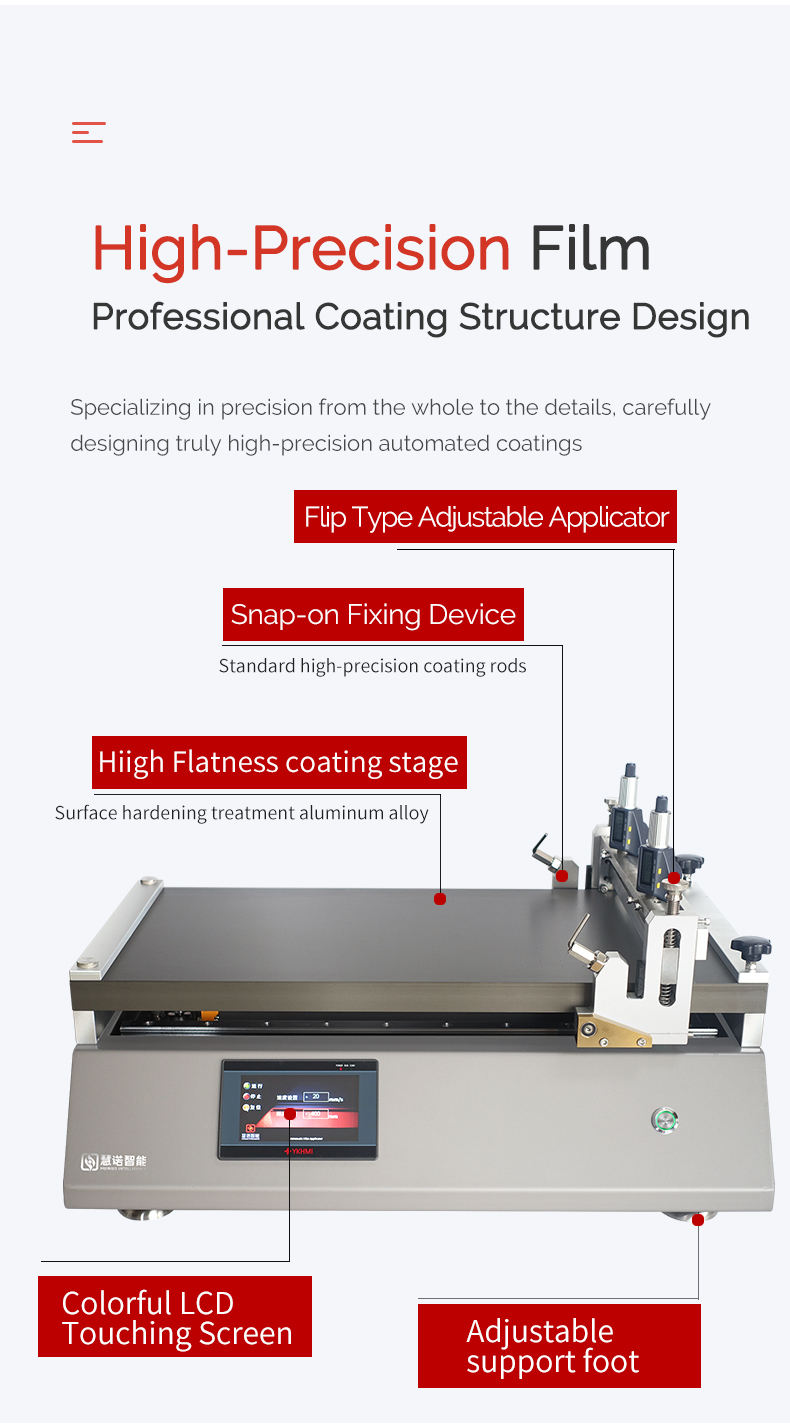

This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features

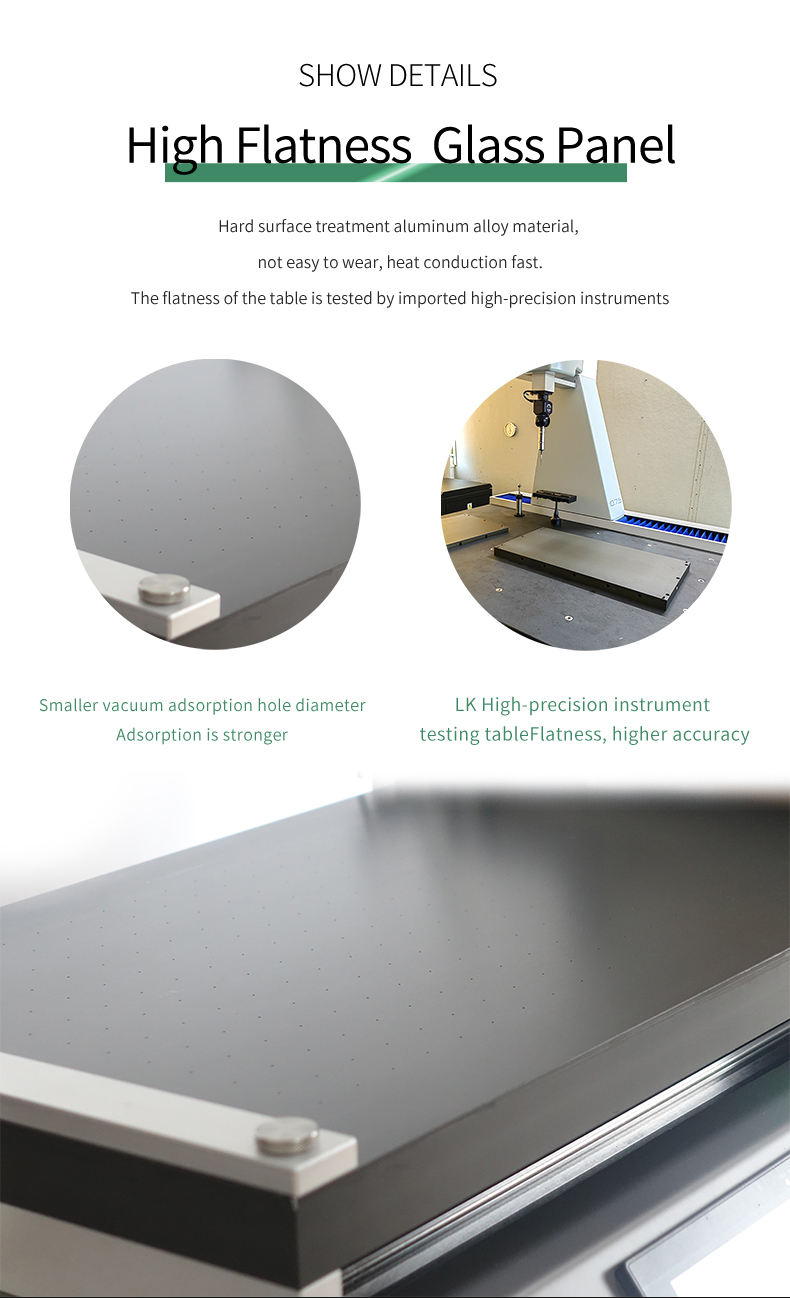

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy

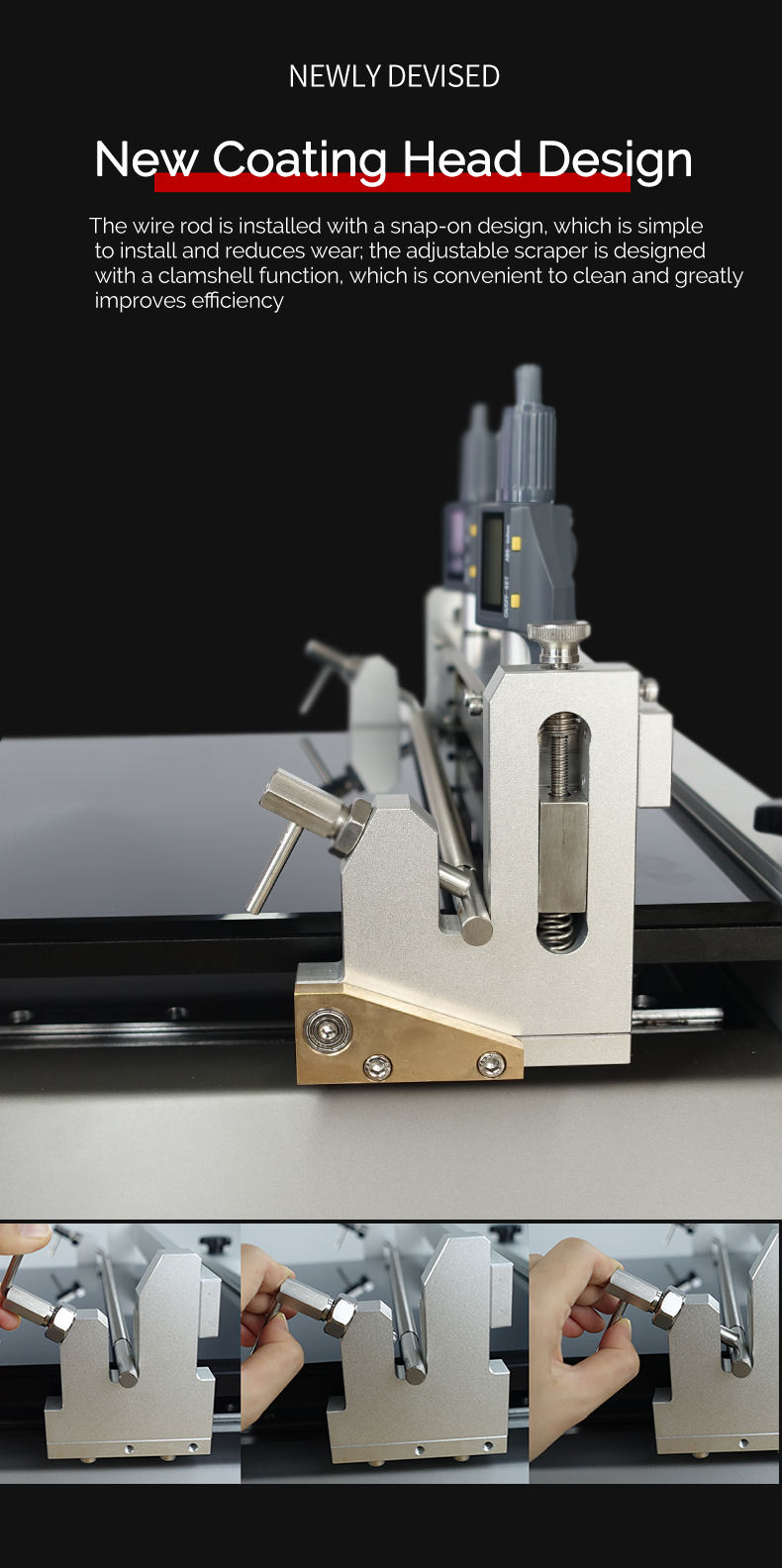

3) Flip-type doctor blade coating head, easy to clean

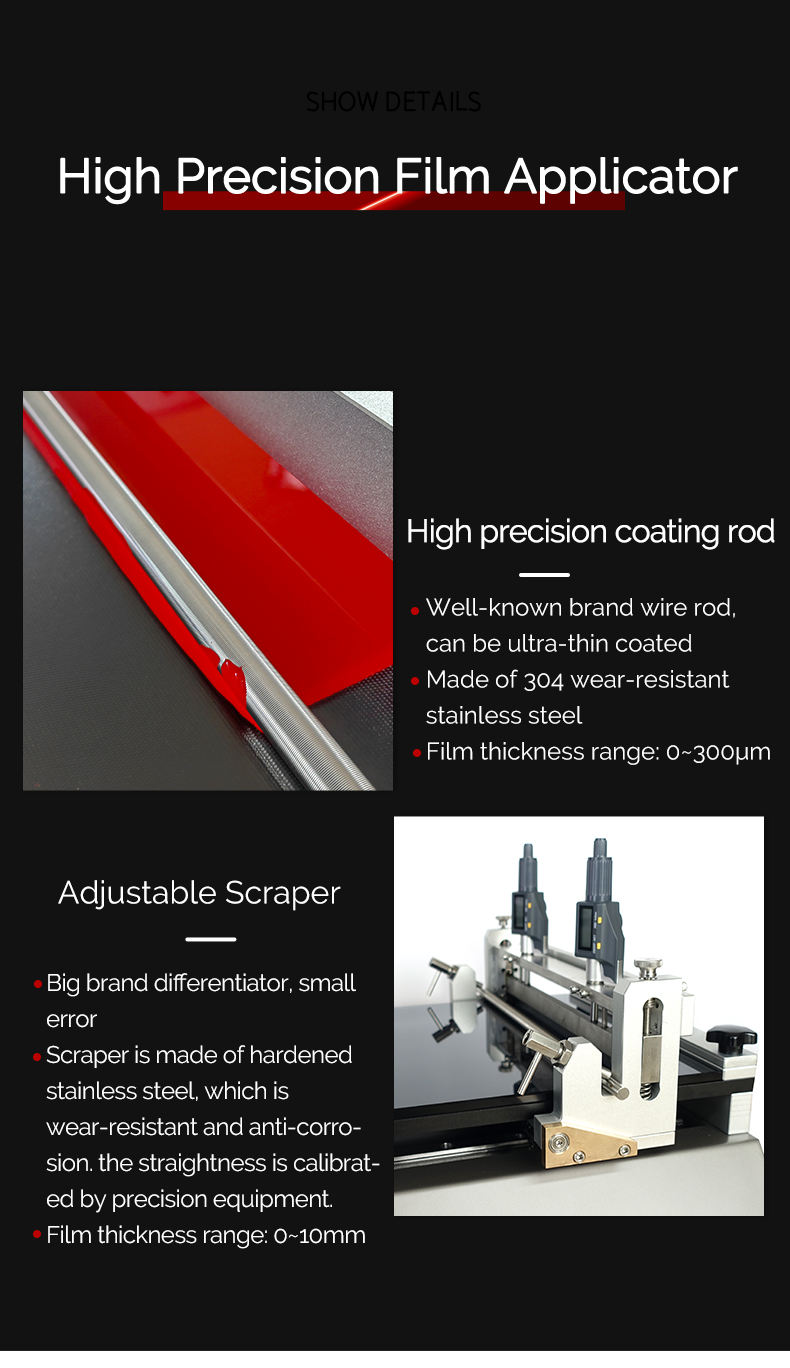

4) Equipped with a high-precision film applicator, the original imported wire rod can apply the film uniformly and with high precision

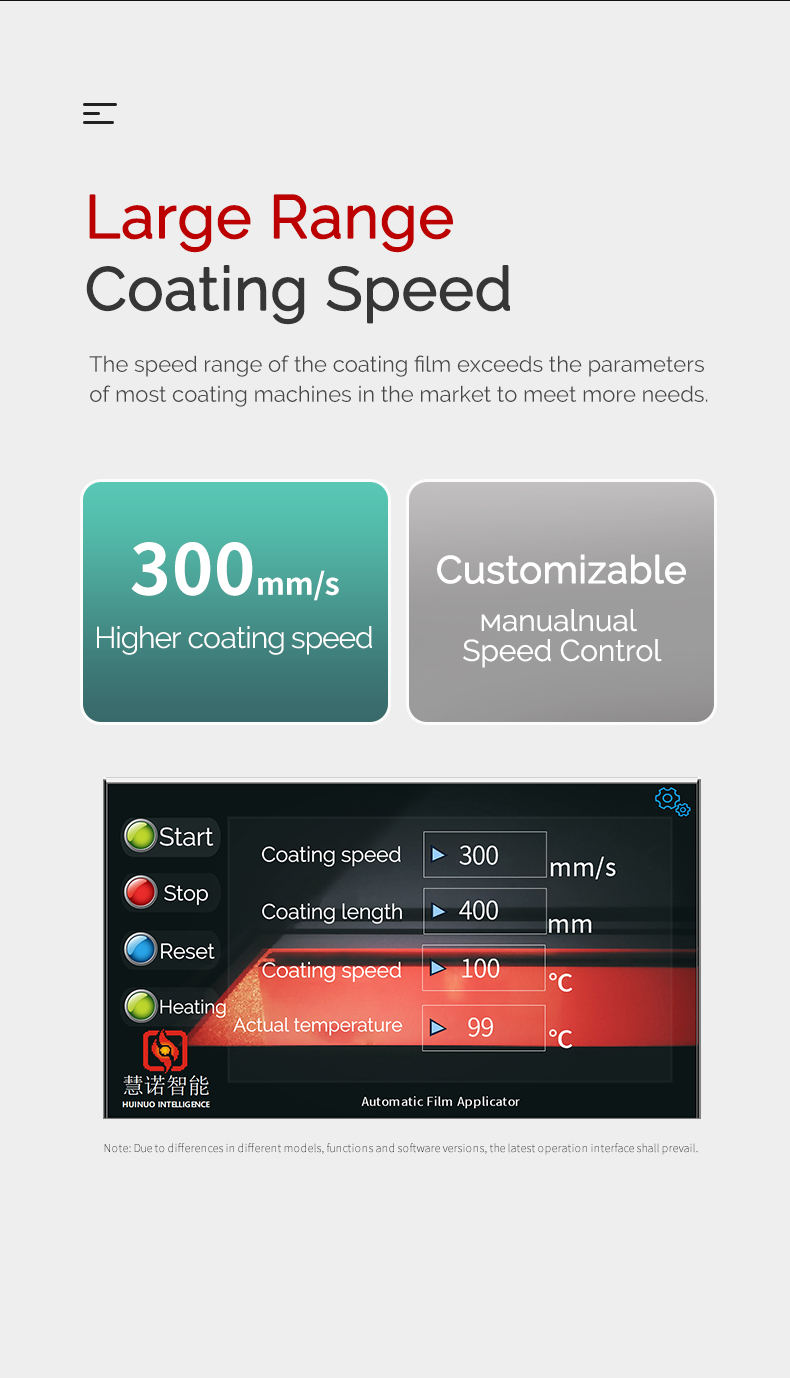

5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely
HuiNuo TM2000/02 Drawdown blade Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Coating method | Drawdown blade |
| Spreader head | Adjustable Thickness Drawdown blade + 4-sided Applicator |
| Coating speed | 1~ 300Mm/s stepless speed regulation (can be customized) |

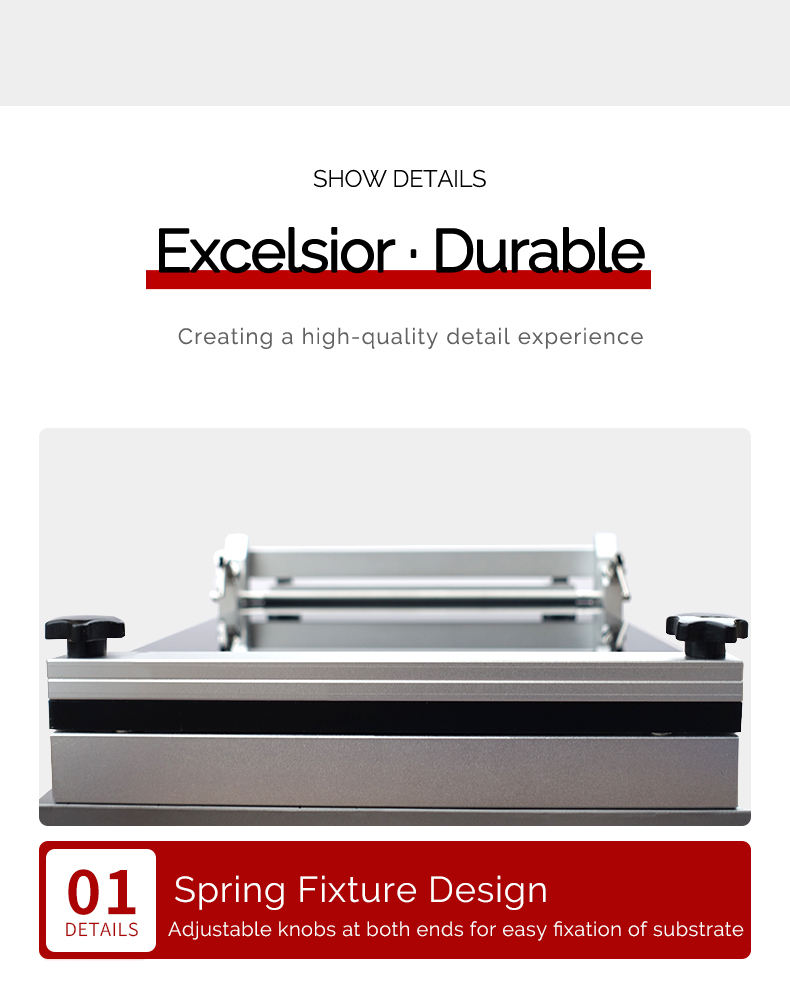

| Substrate clamping method | fixture |
| Coating table material | Glass plate |
| Coating table size | 640*430mm |
| Effective coating Area | 400 * 300Mm (can be customized) |
| Drawdown blade thickness range | 0~ 10Mm (clamshell design is easy to clean) |
| 4-Sided Applicator Specifications | The thickness is customized according to customer requirements, and the effective width is customized according to customer substrate size |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 300mm |
| Drawdown blade accuracy | ±0.003mm |
| Power | 400w |
| display screen | Color LCD touch screen |
| Operating language | Chinese (can be customized in English) |
| Host power supply | 100V~220V/50~60HZ |
| Dimension | Subject to the actual product |
| optional feature | Heating, vacuum adsorption |
HuiNuo TM2000/02 Drawdown blade Film Applicator Packing list
Machine x1, Adjustable Drawdown blade x1, 4-sided Applicator x1, Manual x1, Certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
