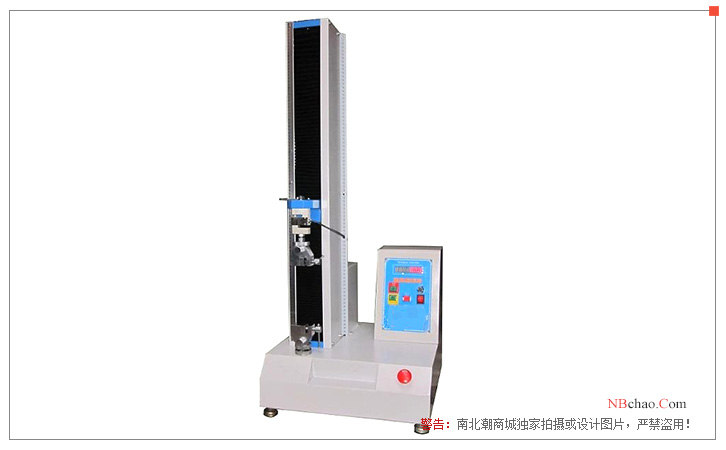

Huida HD-1003 Tensile machine Effective force measurement range 0.5~ 100% F · S
Huida HD-1003 Tensile machine is a single-arm Tensile machine used for tensile, compressive, tensile, compressive, flexural, tear and other tests. The capacity of HD-1003 is 200kg, and the force measurement range is 0.5~ 100% F · S.
Huida
HD-1003
-
Taichang TC-DLJ01 Microcomputer Tensile machine Imported Sensors
$ 1237.44 -
Hypertherm LY-5T electronic universal testing machine, measuring range 50KN/5000KG
$ 3428.39 -
HBO LTD-5000 Gantry Microcomputer Controlled Spring Testing Machine, Range 5000N
$ 3627.71 -
Haibao XYD-5T small gantry microcomputer-controlled universal testing machine, measuring range 50KN/5000KG
$ 4029.41 -
Patek Jushi LY-7012C Material Tensile Testing Machine 800KG
$ 1853.79
Introduction
Huida HD-1003 tensile testing machine can test the physical properties of various materials, finished products, and semi-finished products. You can choose a variety of different fixtures to do tensile, compressive, holding, holding, bending, tearing and other tests. It is the testing and research equipment that is satisfactory for various factories, enterprises, technical supervision departments, commodity inspection agencies, scientific research institutes and colleges and universities.
Application
HD-1003 tensile testing machine is suitable for aerospace, petrochemical, machinery manufacturing, leather and products, wire and cable, rubber and plastics, paper products and color printing packaging, adhesive tape, turtle glue, luggage and handbags, textile fibers, food, pharmaceuticals and other industries.
plan
Huida HD-1003 Tensile machineSpecifications
| LIST | VALUE |
|---|---|
| Capacity selection | 200KG |
| Load analysis | 1/10000 |
| Force value accuracy | <0.5% |
| Force range | 0.5~100%F.S |
| Sensors Sensitivity | 1~20mV/V |
| Displacement error of indication | Better than ± 0.5% |
| effective travel | 700mm (including fixture) |
| Force unit | Contains kgf, lbf, N, (with printing function) |
| Dimensions | 43*43*110cm |
| Machine weight | About 85kg |
| Power | 1PH，AC220V，50/60Hz，5A |
Huida HD-1003 Tensile machine Packing list
Host X1, power cord X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
