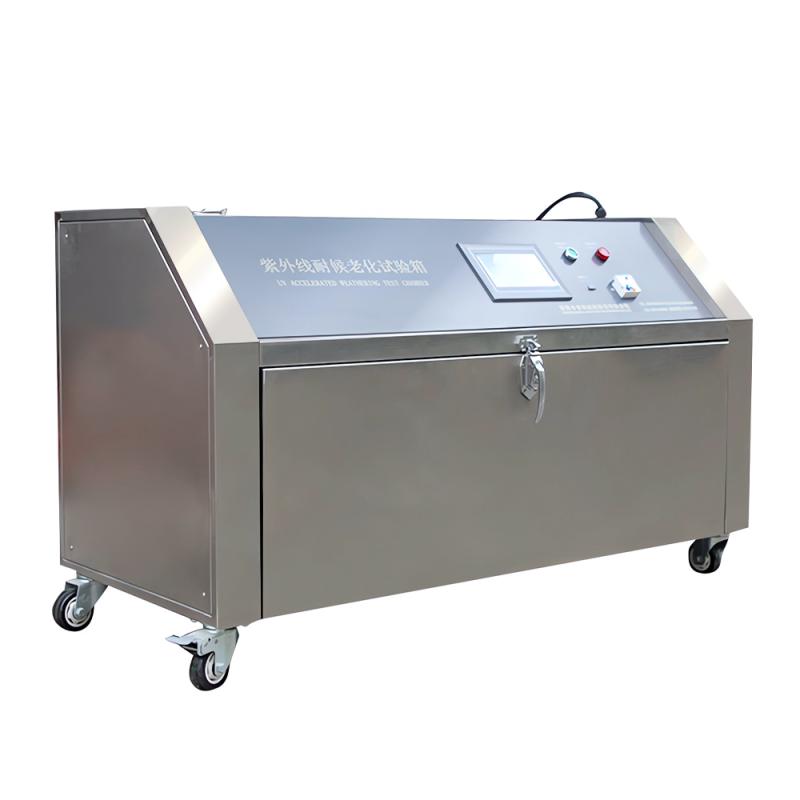

The UV Aging Resistance Test Chamber is a device used to simulate the aging of materials under the conditions of ultraviolet radiation from sunlight. It simulates ultraviolet radiation in sunlight to accelerate the aging process of materials and help evaluate the durability and stability of materials in outdoor environments.
Acrylic polyurethane coating is a commonly used protective coating material, which is widely used in construction, automobile, aerospace and other fields. In outdoor environments, acrylic polyurethane coatings will be irradiated by ultraviolet rays, resulting in aging problems such as color fading, surface chalking, and reduced adhesion.
The UV aging chamber can simulate prolonged UV radiation under controlled experimental conditions, providing an assessment and prediction of acrylic polyurethane coatings by accelerating the material aging process. In this chamber, samples of acrylic polyurethane coatings are exposed to UV light sources, while periodic damp-heat cycles may also be performed to more realistically simulate the outdoor environment.
Through the UV aging resistance Test Chamber, the UV resistance, weather resistance and color stability of acrylic polyurethane coatings can be evaluated. This data can help paint manufacturers and users choose more suitable materials and determine their life expectancy. In addition, the formulation and process of acrylic polyurethane coatings can be optimized to improve their durability and performance by performing UV aging tests under different conditions in the Test Chamber.
Test method
To perform a UV burn-in test for acrylic polyurethane coatings, follow these steps:
Prepare samples: Prepare samples of acrylic polyurethane coatings with a certain thickness and uniformity. Samples can be in plate, film or other forms, depending on the application and requirements of the desired test.
Set test conditions: According to the test requirements, determine the parameters such as UV radiation source, temperature, humidity and radiation time in the Test Chamber. Select appropriate test conditions according to the environment and expected use conditions.
Mounting the sample: Fix the prepared acrylic polyurethane coating sample on the sample table of the Test Chamber to ensure that the distance and angle of the sample from the UV radiation source are consistent.
Start the test: Start the UV aging Test Chamber and expose the sample to UV radiation. According to the set test conditions, the radiation is for a certain period of time. At the same time, the damp-heat cycle can be selectively performed to simulate the real outdoor environment.
Monitoring and recording: Regularly monitor and record the performance changes of acrylic polyurethane coating samples. It can include testing of indicators such as color change, surface chalking, adhesion, gloss, etc. Quantitative or semi-quantitative testing can be carried out using instruments and equipment such as Colorimeters, chalking evaluators, adhesion Testers, etc.
Evaluation results: According to the test data and evaluation indicators, analyze the aging degree and performance changes of the acrylic polyurethane coating. Compare the differences between different test samples to evaluate the durability and stability of the coating.
Interpretation of results: Based on the test results, evaluate the suitability and life expectancy of the acrylic polyurethane coating. Determine the optimization plan and improvement measures of the coating to improve its UV resistance and durability.
During the test process, the experimental conditions need to be strictly controlled, and appropriate data recording and analysis should be carried out. In addition, the test results should be combined with the actual application situation, taking into account other factors, such as temperature, humidity, chemical environment, etc., to fully evaluate the performance of acrylic polyurethane coatings.
Industry standard
UV aging testing for acrylic polyurethane coatings generally refers to the following industry standards:
ASTM D4329: "Standard Practice for Fluorescent UV Exposure of Plastics"
ASTM D4329 is a standard published by the American Society for Testing and Materials (ASTM) for the aging test of plastic materials under UV radiation. Although this standard primarily applies to plastics, some of these test methods can also be used to evaluate the UV aging properties of acrylic polyurethane coatings.
ISO 4892-3: "Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps"
ISO 4892-3 is a standard published by the international standards organization (ISO) concerning methods of exposure of plastic materials to laboratory light sources, including fluorescent UV lamps. The standard provides a method for evaluating the UV aging properties of acrylic polyurethane coatings.
Specific application
Specific application cases include but are not limited to the following areas:
Construction and building materials industry: Acrylic polyurethane coatings are commonly used for waterproof and weatherproof coating of building exterior walls, roofs, floors, etc. UV aging testing evaluates the durability and color stability of the coating to ensure its long-term performance in outdoor environments.
Automotive industry: Acrylic polyurethane coatings are widely used in the painting of automotive exterior and interior parts, such as body painting, bumpers, door handles, etc. UV aging testing evaluates the coating's weather resistance and appearance stability to ensure its durability in sun exposure and harsh weather conditions.
Aerospace industry: Acrylic polyurethane coatings are used in aerospace for exterior painting of aircraft, aircraft marking, etc. UV aging testing evaluates the coating's UV resistance and weather resistance to ensure its protective function under prolonged exposure at high altitudes.
Furniture and decoration industry: Acrylic polyurethane coatings are commonly used for surface coating of furniture, upholstery materials and wood products. UV aging testing evaluates the color stability and durability of coatings to ensure their long service life in indoor lighting conditions.
According to the specific industry requirements and application requirements, the corresponding standards and test methods should be selected for the UV aging test of acrylic polyurethane coatings.
