Defelsko PosiTector6000 series coating Thickness Gauge is a kind of non-destructive testing coating Thickness Gauge. It is produced by Defelsko in the United States. It has a high degree of familiarity in related industries at home and abroad and is widely used in coatings, paints, and plastics. , metal, industry, chemical and other fields. Defelsko PosiTector6000 series coating Thickness Gauges are divided into more than 20 models according to the type of probe, the substrate to be measured, and standard/advanced models.
This article compares the entire series of coating Thickness Gauges from the selection and probe types of the Defelsko PosiTector6000 coating Thickness Gauge, so that users can more clearly know how to select the PosiTector6000 series Thickness Gauge .

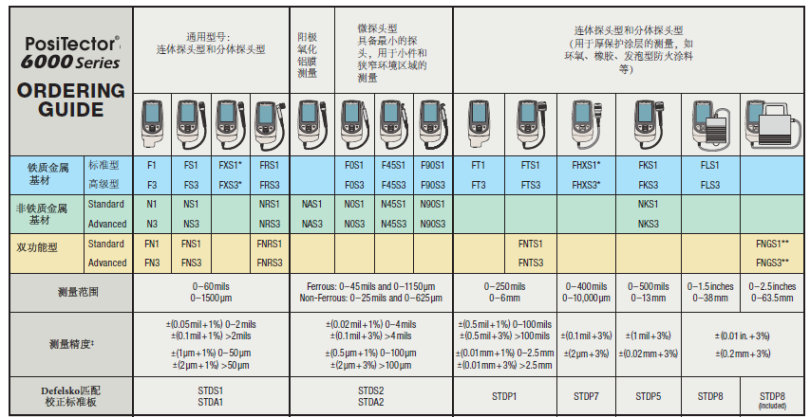

Model parameter comparison table of Defelsko PosiTector6000 series coating Thickness Gauge
Application Comparison of Defelsko PosiTector6000 Series Coating Thickness Gauge Probes
| probe name | Dimensions | Corresponding Thickness Gauge model | Application Features | Example diagram |
| Replaceable built-in probe |  | F, N, FN, FT | Suitable for one-handed operation |  |
| Split ordinary probe |  | FS, NS, FNS, NAS, FTS | The force is uniform, and the stainless steel probe is waterproof, which is very suitable for underwater thickness measurement. |  |
| FXS Xtreme |  | FXS | The probe has a zirconia-toughened alumina wear face suitable for measuring coating thickness on rough steel surfaces. |  |
| Split 90 degree universal probe |  | FRS, NRS, FNRS | Ideal for measuring coating thickness in confined areas, waterproof and suitable for underwater measurements |  |
| FNDS probe |  | FNDS | Double coating thickness measurement, suitable for measuring double coating thickness of paint/zinc layer |  |
| Split 0° Micro Probe |  | F0S, N0S | The probe comes with a quick release adapter. Ideal for measuring narrow spots, hard-to-reach areas or areas close to edges |  |
| Split 45° Micro Probe |  | F45S, N45S | Ideal for measuring narrow spots, hard-to-reach areas or areas close to edges |  |
| Split 90° miniature probe |  | F90S, N90S | Ideal for measuring narrow spots, hard-to-reach areas or areas close to edges |  |
| Thick Coated Probes |
FT
FTS
FNTS, FKS, NKS | FT, FTS, FNTS, FKS, NKS | Ideal for measuring thick protective coatings such as epoxies, rubbers, concrete linings, intumescent fire protection and more. |  |
| FHXS Xtreme |  | FHX | The surface of the probe has aluminum oxide and the connection editing cable. Suitable for measuring coating thickness on high temperature or rough surfaces. |  |
| FLS probe |  | FLS | Measure intumescent paint or other thick protective coatings on steel. (up to 38 mm (1.5 in)) |  |
| FNGS probe |  | FNGS | Suitable for measuring very thick coatings (up to 63.5mm) on all metals, especially for measuring hull coatings intumescent by thickness fire protection coatings |  |
In addition to the selection list of the above-mentioned Defelsko PosiTector6000 series coating Thickness Gauge and the comparison of different probe types, another technical difference of the Defelsko PosiTector6000 coating Thickness Gauge is the advanced type and the standard type. The advanced type is more functional than the standard type. The type is more powerful, for details, please refer to the detailed introduction of the product page of Defelsko PosiTector6000 coating Thickness Gauge.
