As an important protective material, film not only needs to be beautiful and durable in appearance, but also needs to have certain mechanical properties to resist the physical action of external factors on its surface. The evaluation of film mechanical properties is crucial to ensure the mass and performance of the film. This article will discuss the detection of mechanical properties of films, with a particular focus on hardness and scratch resistance, as well as test methods and Applications.
Hardness - mechanical stability of films
Hardness is the ability of a film to resist various mechanical effects, usually expressed as the resistance of the film surface to another harder object. Hardness testing can help evaluate the Mechanical Properties of a film such as collision resistance, compression resistance, scratch resistance, etc. Different hardness testing methods can characterize the hardness of a film from different angles.
1. Pendula damping hardness
The Pendulum damping hardness method is one of the commonly used hardness testing methods. Its principle is to apply a load through a steel ball suspended from the swing rod so that it contacts the film template. When the swing rod starts to swing, the film will generate resistance, and the hardness of the film will be evaluated according to the cycle time of the swing rod. The specific operation is to place the test sample film facing up on a horizontal table, and then slowly lower the swing rod to the test plate to measure the time it takes for the swing rod to swing from one angle to another. Longer swing times indicate higher film hardness.
2. scratch hardness

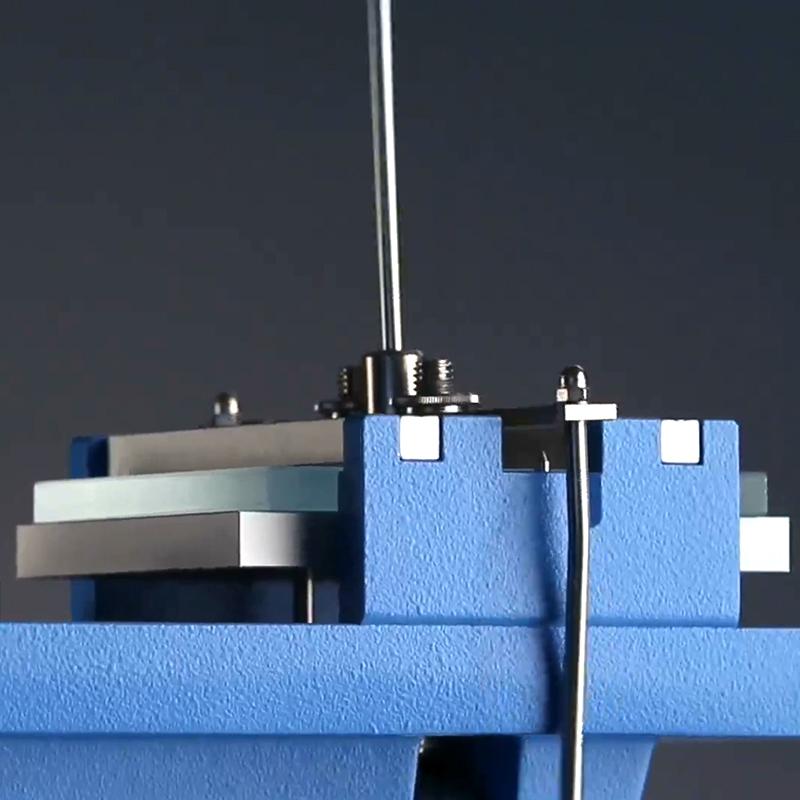

The scratch hardness method is another commonly used hardness testing method that evaluates the hardness of a film by applying a scratch load to the surface of the film. In this test, a standard scratch tool, such as a pencil Hardness Tester or steel tip with different hardness, is usually used to scratch the film surface. Hardness evaluation is based on the depth and shape of the scratch.
3. indentation hardness
The indentation hardness method is another method of film hardness testing, which evaluates hardness by applying a uniform pressure load to the film surface. In this test, a spherical indenter or diamond indenter is generally used to form an indentation on the film surface with a certain pressure. Hardness evaluation is based on the diameter and depth of the indentation.
Choosing the appropriate hardness testing method depends on the specific application and requirements of the film. For example, for automotive coatings, scratch and crash resistance are key performance requirements, so scratch hardness and Pendula damping hardness testing may be more applicable. In the film industry, hardness testing helps assess the mechanical stability of films, ensuring that they maintain good performance during use.
Scratch resistance - protects the surface from damage
Scratch resistance is a key aspect of film mechanical properties, which relates to the resistance of the film surface to mechanical effects such as scratching and scratching. In real life, films often face various threats of scratching and scratching, so evaluating scratch resistance is critical to ensuring film durability.

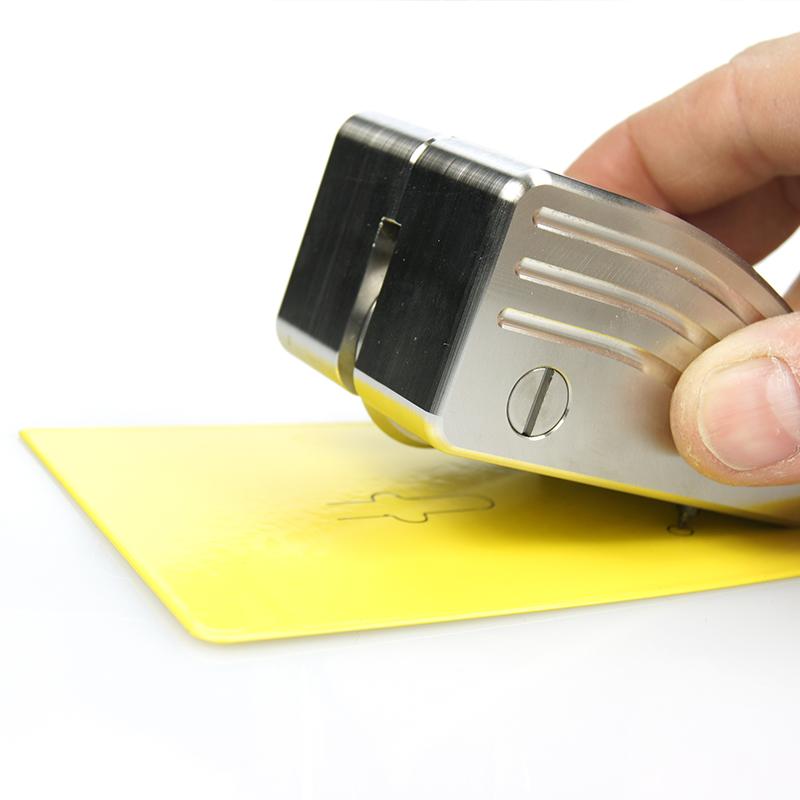

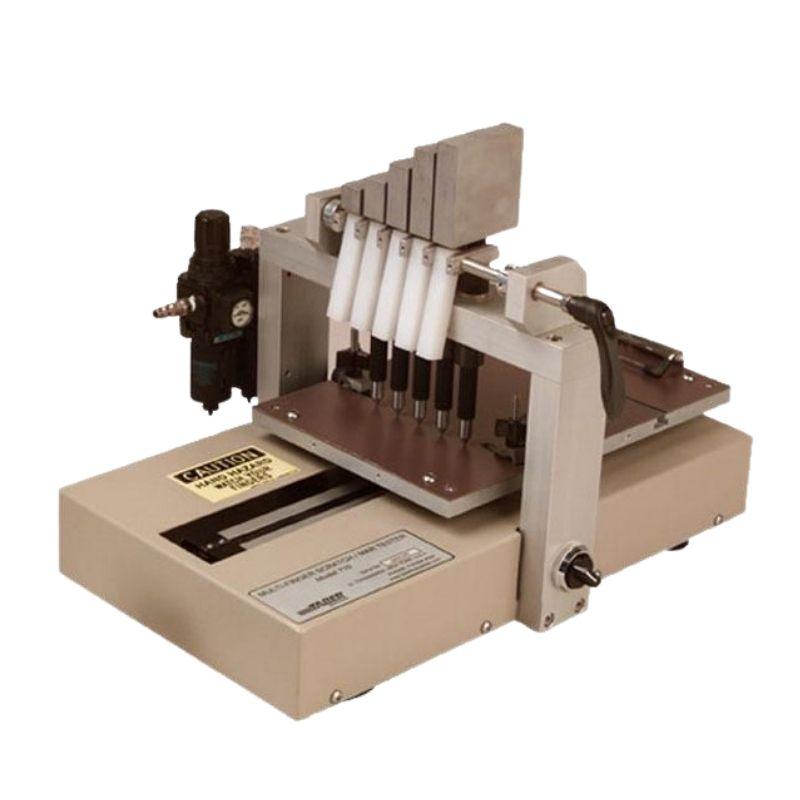

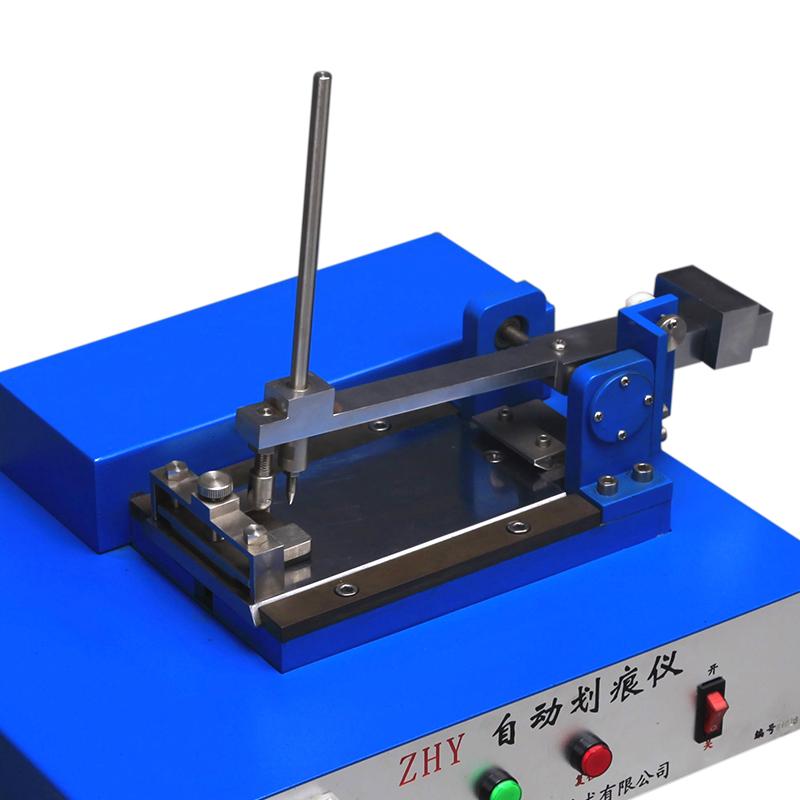

Scratch resistance evaluation usually uses different test methods, among which the common one is the scratch test. The scratch test can simulate the scratch and scratch situation in actual use to evaluate the scratch resistance performance of the film. In the scratch test, a standard scratch tool, such as an instrument with a hardness needle, is usually used to apply a certain load and motion to simulate the scratch and scratch effect. Based on the results of the test, the scratch resistance performance of the film can be evaluated and its performance under different scratch conditions can be determined.
Scratch resistance testing is important for a variety of film Applications. For example, in the automotive industry, body coatings need to have excellent scratch resistance performance to maintain the long-term appearance of the vehicle. In home decoration, the film on the surface of furniture needs to resist scratches and scratches to protect the appearance of furniture. Therefore, scratch resistance testing is an important tool to ensure that the film can maintain good performance in actual use.
The mechanical properties of a film include hardness and scratch resistance, which are essential for the mass and durability of the film. Hardness testing can help evaluate the mechanical stability of the film, while scratch resistance testing can evaluate its resistance to wear and tear in actual use. Choosing the appropriate test method depends on the Application and requirements of the film, ensuring that the film can maintain its performance in different environments. The evaluation of the film mechanical properties will help increase the mass of the film, extend its service life, and ensure that it performs well in various applications.
