In many industrial applications, such as oil and gas transmission pipelines, it is crucial to ensure the integrity and performance of the coating, as this is directly related to the durability and safety of the pipeline. Especially in complex underground environments, pipelines may be subject to various impacts, such as excavation, soil movement, etc., which may damage the coating and thus affect its corrosion resistance. Therefore, it is crucial to evaluate the impact resistance of double-layer epoxy powder coatings. This article will explore in detail the impact resistance test methods and significance of double-layer epoxy powder coatings based on the references provided.
The scope and background of the experiment
This test method is mainly suitable for testing the impact resistance of double-layer epoxy powder coatings for pipelines at room temperature. The impact resistance of the coating indicates its ability to maintain its integrity and performance in the face of external shocks. To ensure the accuracy and reliability of the test, such tests should be carried out under strictly controlled conditions.
Materials and equipment required for the test
In order to conduct this test, the following materials and equipment are required:
Impact testing machine with a spherical punch with a diameter of 25 mm.
A curved anvil dedicated to the tube segment specimen, with a radius of 40mm and a hardness of (55 ± 5) HRC.
Wooden spacers with dimensions of at least 600mm x 600mm x 600mm and a hardwood top surface.
Electric spark leak Detector, used to inspect pinholes or defects in coatings.

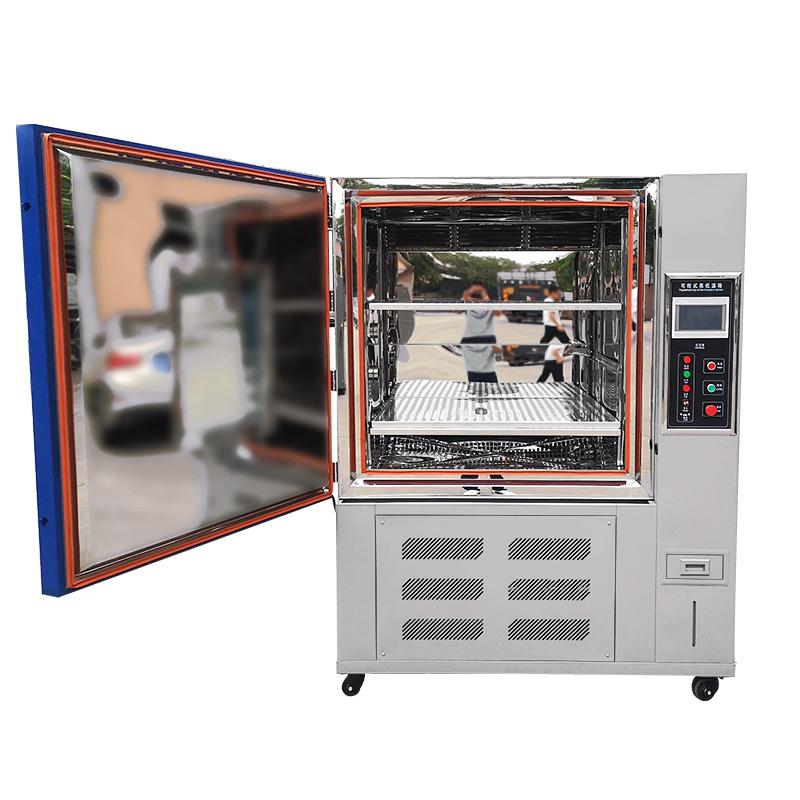

An Incubator is used to ensure that the specimen is tested at a constant temperature.
Standard laboratory coated specimens are approximately 100mm x 100mm x 6mm in size and 100mm x 100mm x 100mm x wall thickness in tube section. 3 specimens are required for each set of tests.
Determination method and steps
The determination process is divided into several key steps:
First, place the specimen in an Incubator and ensure that the temperature is controlled at (23 ± 2) C. The specimen needs to be kept in the Incubator for at least 1 hour to ensure that its temperature is stable. Then, place the constant temperature specimen into the impact Tester and ensure that it is aligned with the wooden pad.
Shock each specimen 3 times with an impact energy of at least 10J or 15J. Between each impact, the spacing of the impact points should be at least 50mm. All impacts should be completed within 60 seconds of removing the specimen from the Incubator. Each spherical punch can only be used for a maximum of 10 impacts, after which it should be transferred to an unused position. When the total number of impacts reaches 200, the punch should be replaced.
After the impact test is completed, use an EDM leak Detector to inspect the coating for pinholes or defects. The leak detection voltage is 5V/um.
Recording and interpretation of results
The test results should be detailed as follows:
The value of the impact energy used.
The voltage value used in the electric spark leak Detector.
The number of pinholes detected.
The date of the trial.
Through the analysis of the above data, the impact resistance of the double-layer epoxy powder coating can be obtained. A small number of pinholes means that the coating has good integrity and impact resistance, while a high number of pinholes may indicate that the coating is brittle or incomplete under impact.
The importance of reference standards
This test method is based on the "Technical Specification for Double-layer Fusion Bonded Epoxy Powder Outer Coating of Buried Steel Pipelines" Q/CNPC 38-2002, which is the corporate standard of CHINA National Petroleum Corporation. Adhering to these standards not only ensures the accuracy and consistency of the test, but also provides a recognized and reliable performance evaluation benchmark for coating manufacturers and users.
conclusion
The impact resistance of the double layer epoxy powder coating is critical to its success in industrial applications. Through rigorous test methods and standards, we can ensure that the coating can provide the required protection and performance in practical applications. This not only enhances the safety and durability of the pipeline, but also provides a solid foundation for the development of related industries.
