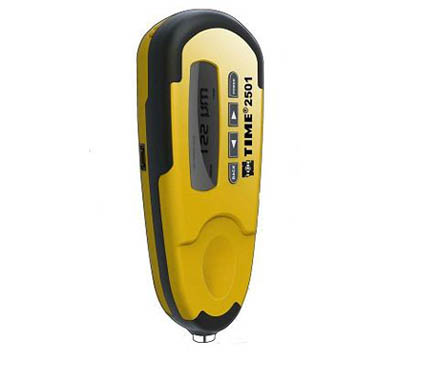

Eddy current coating Thickness Gauge is a professional equipment used to measure the thickness of metal surface coatings, which is widely used in automobile manufacturing, aerospace, metal processing and other fields. This article will introduce the working principle, application areas, and selection points of eddy current coating Thickness Gauges to help readers better understand and choose the right equipment for their needs.
Principle
The working principle of eddy current coating Thickness Gauges is based on the eddy current effect. When the coating Thickness Gauge comes into contact with a metal surface, the eddy current coating Thickness Gauge generates eddy currents by sending an AC electromagnetic field signal to the metal surface. The induced resistance of eddy currents is inversely proportional to the thickness of the coating. By measuring the change in the eddy flu strain resistance, the thickness of the coating can be calculated. Its main components include transmitting probes, receiving probes and signal processing systems.
Apply
In the automobile manufacturing process, eddy current coating Thickness Gauges are widely used to measure the thickness of anti-corrosion coatings on the surface of automobiles, such as primers, topcoats, etc. By measuring the thickness of the coating, the uniformity and quality of the coating can be ensured, and the durability and appearance quality of the car can be improved.In the aerospace field, eddy current coating Thickness Gauges can be used to measure the thickness of aircraft surface coatings, such as anti-corrosion coatings, thermal insulation coatings, etc., to ensure the flight safety and performance stability of aircraft.In the metalworking industry, eddy current coating Thickness Gauges are used to measure plating, coatings, etc., on metal surfaces. For example, the coating thickness of an electroplated part is measured to ensure that it meets the specified requirements for corrosion protection and mechanical properties.
Selection points
Different application scenarios have different requirements for the scope and accuracy of coating thickness measurement, so it is necessary to consider whether the measurement range and accuracy meet the actual needs when selecting the model.Probe types for eddy current coating Thickness Gauges include single and dual probes. Choosing the right probe type needs to be evaluated based on the nature and surface condition of the object to be measured.Modern eddy current coating Thickness Gauges are often equipped with data processing software that can process and analyze the measurement data and output corresponding reports. When selecting a model, it is necessary to consider whether the data processing and output methods meet the actual requirements.For applications that require on-site coating thickness measurement, portability and ease of operation are important considerations. Therefore, choosing an eddy current coating Thickness Gauge that is portable and easy to operate can increase productivity.
Epilogue
As an important quality inspection equipment, eddy current coating Thickness Gauge plays an important role in automobile manufacturing, aerospace, metal processing and other fields. Choosing the right eddy current coating gauge is important to improve production efficiency and product quality.
