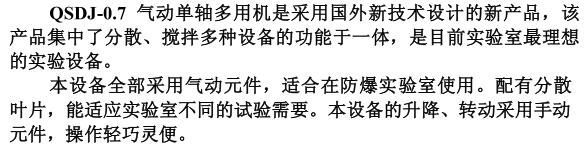

I. Overview
2. Main technical parameters
1. Air motor power: 0.7KW
2. Speed range: 0～3000r/min
3. Dispersion blade diameter: Φ50mm Φ60mm
4. Sanding disc diameter: Φ45mm Φ60mm
5. Lifting stroke: 200mm
6. Dimensions: 450×420×550 (length×width×height)
7. Weight: 25kg
3. Structure
1. This machine adopts an air motor, and the rotation speed of the rotating shaft is controlled by adjusting the motor air valve. sanding blade
And the dispersing blade is directly connected with the sea thread of the rotating shaft.
2. Use manual lifting, loosen the brake handle, you can easily go up and down.
4. Use and maintenance
1. When in use, fix the selected dispersing blades to the main shaft.
2. Adjust the height of the main shaft and the container, clamp the container, and cover the container.
3. When using, open the air source valve, and then adjust the speed to the required speed; when shutting down,
The speed should be reduced to zero before closing the air supply.
4. Connect the air source to the interface of the air source valve, and then adjust the pressure on the oil-water separator to 0.6MPa
5. Loosen the motor air valve on the air inlet of the air motor to adjust the motor speed.
6. Loosen the brake handle, lift up and down to the desired position, and then lock the brake handle to start the machine. (The lifting speed should not be too fast, so as not to damage the machine.)
7. When the dispersing blade is not installed, it is not advisable to drive empty when the speed is greater than 3000r/min, otherwise it will be easily damaged
