*320×240 color screen display
*Measurement mode: normal measurement and through coating measurement
*A-scan and B-scan
* Probe automatic zero calibration
* Probe automatic recognition
* Measuring range: 0.65-400.0mm
* Gain, gate, etc. can be adjusted automatically or manually
*A-scan, large character or B-scan display
*Standard configuration 5MHz penetrating coating probe, other probes are optional
* Indication accuracy 0.01mm
*Store 10000 sets of data
*USB output interface, read data directly
hardware
Weight: 260g
Dimensions: 133×75×29 mm
Operating temperature: -10°C to 50°C
Keyboard: Keyboard: 8 keys
Housing: ABS plastic
Data output: USB interface, free of software
Display: 320×240 TFT color screen
performance
performanceMeasurement Mode:
launch to echo
echo to echo (through coating)
Echo reception:
Manual and automatic gain adjustment
calibration:
Built-in auto-calibration function
Measuring material:
Can measure steel, cast iron, aluminum, copper and other materials
Language: Multiple languages are optional

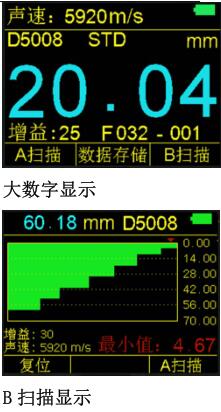

show
Real-time A-scan
large digital display
Real-time A-scan
large digital display
Real-time B-scan
power supply
Two 1.5V AA alkaline batteries. Normally
Use 24 hours.
Measurement
Pulse to echo mode:
Measuring range from 0.65 to 400mm echo
to echo mode (through coating)
echo
to echo mode (through coating)
The measuring range is from 3 to 25mm.. Depending on the thickness of the coating , the measuring range will vary slightly.
Accuracy: 0.01mm (0.001 inches)
Sound velocity range:
1000 to 9999 m/s
Indication unit: metric or imperial
probe
Probe Type:
Dual crystal probe (2 to 10 MHz) Probe line length 1.25 meters According to customer requirements, special probes .
storage
Storage form:
Storage group number + serial number of the group
storage:
100 groups of 100 readings each for a total of 10,000 readings
features
Range, gain, pan, gate, blanking and E blanking can be adjusted .
Standard measurement mode:
Range, gain, pan, gate, blanking and E blanking can be adjusted .
Standard measurement mode: suitable for general measurement situations
Minimum Measurement: Displays the minimum value .
Differential value mode: Displays the deviation from the reference value set by the customer .
Average Mode: Displays the average of 2-9 measurement points .
Upper and lower limit mode:
Upper and lower limit mode:
Set the upper and lower limits, display and sound alarm when the measured thickness exceeds the set limit.
standard
Certificate traceable to ASTM E0797-05.

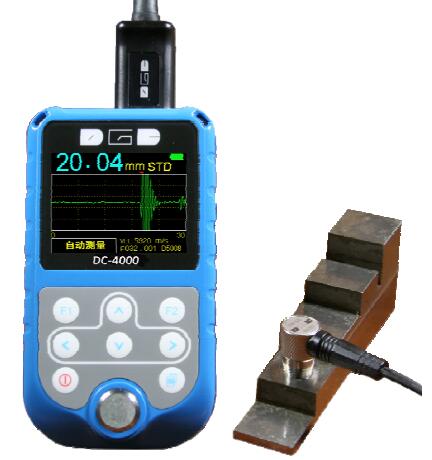

Standard configuration
one host
One D5301 probe
75ml bottle of couplant
Two AAA batteries
A set of random information
one cable
instrument box
