1. What is the definition of non-volatile matter content in powder coatings? How to determine the non-volatile content?
(1) Definition
The non-volatile content is the percentage of weight loss due to the volatilization of volatile matter when a certain amount of powder coating is baked under specified temperature conditions, and the unit is expressed in %.
(2) Equipment
Oven: It can be heated and controlled to 105°C ± 2°C or 230°C ± 3°C.
Aluminum foil dish: flat bottom, diameter 50mm, height 10mm.
Balance: Sensitivity 0.0lg.
(3) Test steps
Weigh out 2.0g ± 0.1g powder sample, put it into a weighed aluminum foil dish, put the dish into an oven with a constant temperature of 105°C ± 2°C and bake for 1 hour, or in an oven at 230°C - 13°C for 5 minutes, Put it in quickly to prevent the temperature of the box from dropping significantly. After the specified time, take out the aluminum foil dish, cool it to room temperature and weigh it.
(4) Results

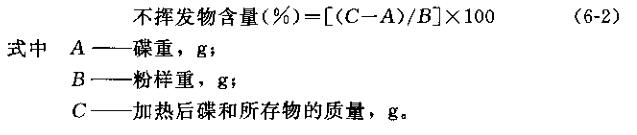

Use formula (6-2) to calculate the non-volatile matter content, accurate to 0.1g.
2. How is the "curing time test of epoxy powder" test carried out in the SY/T0315-97 standard?
(1) Test equipment
Electric Heating Plate: temperature configuration is ± 3°C.
Metal plate: the size is 150mmX150mmX25mm.
Release agent (glycerin): It is required to be able to withstand high temperature of 300°C without sticking to epoxy powder.
Touch the thermometer.
timer.

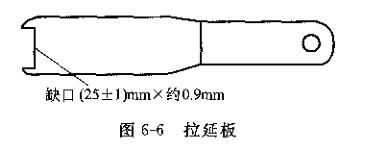

Drawn plate (see Figure 6-6 for shape).
Tweezers (small pliers).
scraper.
General purpose knife.
Differential Scanning Calorimetry (DSC).
(2) Test procedure
(2) Test procedure① Spray two layers of release agent on the upper surface of the metal plate.
②Heat the metal plate and keep the temperature at 230°C±3°C or 180°C±3°C.
③ Use a drawing board to quickly spread the NaO powder coating on the metal plate, and apply several layers of film, so that the film thickness can be between 300 and 400 μm; when the powder removal material on the metal plate 1 begins to melt, start immediately The timer starts counting.

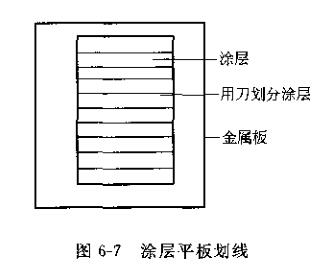

④ Before the coating film is completely gelled, use a general-purpose knife or scraper to divide the coating film into 10 strips (as shown in Figure 6-7) for later use.
⑤ After 30 seconds or 3 seconds, use tweezers to pick up the first coating film and immediately quench it into cold water.
⑥ Repeat the above operation once every 30s±3s. Note that they should be removed from top to bottom, quenched and placed in order.
⑦ Using a differential scanning calorimeter (DSC), according to the requirements of SY/T0315-97? Thermal characteristics test of epoxy powder and its coating? value) or curing percentage.
⑧According to the regulations of the powder coating manufacturer, the percentage curve.
(3) Test results
The time corresponding to ΔT of 2°C or the time s corresponding to 99% curing percentage.
