2. Operating Instructions:
※Heating function description
1. Prepare the beaker, put the stirring bar into it, and place the beaker in the center of the panel.
2. Turn on the power, the power indicator light (Power) is green.
3. Adjust the heating knob to the desired position, at this time the heating indicator light (HEAT) is orange. 4. When the surface temperature exceeds 55°C, the anti-scalding warning light (HOTTOP) turns red.

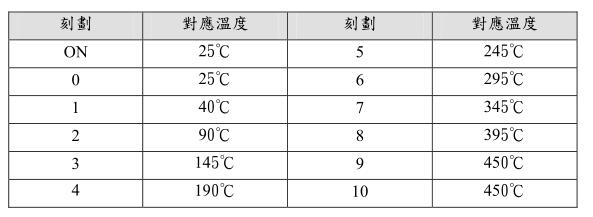

5. Temperature setting (reference data)
◆The above listed are reference data, the specific heating effect is related to the load
※Speed function description
1. Prepare the beaker, put the stirring bar into it, and place the beaker in the center of the panel.
2. Turn on the power, the power indicator light (Power) is green.
3. Adjust the stirring knob to the desired position, at this time the stirring indicator light (STIR) turns orange. 4. When the surface temperature exceeds 55°C, the anti-scalding warning light (HOTTOP) turns red.

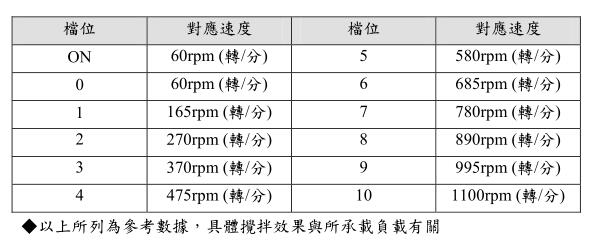

5. Speed setting (reference data)
3. Matters needing attention:
1. For indoor use, when the machine is heating, the distance from the wall should be more than 30cm, and the distance from the upper plate should be more than 1.2m.
2. The supply voltage should be within ±10% of the rated voltage.
3. Keep the panel clean and prevent fluid from overflowing into the machine.
4. If the surface of the Heating Plate is stained, do not wash it directly with water, please wipe it with a soft damp cloth.
5. Do not heat or stir explosive substances.
6. When the knob is in the "OFF" position, it is in a closed state, do not turn the heating or stirring knob counterclockwise. 7. Do not modify the circuit and mechanical structure without authorization.
8. This is for laboratory use, not for industrial use.
9. When heating, do not place metal foil, fiberglass or other insulating substances on the panel.
10 sides. The maximum weight of the board is 34kg.
