Brief explanation:

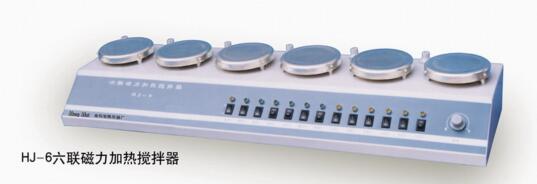

HJ-6 magnetic heating stirrer is widely used in major transfer schools, environmental protection, scientific research, sanitation and epidemic prevention chemical industry, and medical units. This instrument can be used for comparison with six heads at the same time, and can also be used alone. It has the function of one machine with multiple functions , It is a satisfactory instrument for laboratory laboratory personnel.
1. Performance:
1. Power supply: single-phase AC 50HZ, 220V±10%
2. Electric power: 6*25W
3. Heating power: 6*200W
4. Stepless speed regulation: 0-1600 rpm
2. Instructions for use
When using this instrument, please first check whether the accessories that come with the whole machine are complete, then install the fixtures in order, put the solution to be stirred in the center of the chrome plate, and then plug in the power plug connected to the instrument first, and turn on the power. Turn on the power switch, the stirring indicator light is on, it starts to work, the speed is adjusted from low speed to high speed, and the high-speed gear is not allowed to start directly, so as to avoid the agitator being out of sync and causing jumping, and it cannot be heated when not stirring, and the red indicator is indicated when the heating device is working The light is controlled by a switch, and the red indicator light is on when it is not working. To ensure safety, please connect the ground wire when using it .
3. Matters needing attention:
1. When you find that the stirrer jumps or does not stir during stirring, please cut off the power, check whether the bottom of the beaker is flat and whether the position is correct, and please measure whether the current voltage is between 220V±10V, otherwise the above will appear Condition.
2. The heating time is generally not too long, and the intermittent use can prolong the service life.
3. It can work continuously for 8 hours at medium speed and 4 hours at high speed.
