Application of TD-3A Centrifuge in Laboratory

I. Overview

TD-3A centrifuge for blood type serology absorbs the advantages of similar products at home and abroad and achieves multiple functions through independent innovation. , used in immunomagnetic bead experiments) to make it more accurate in separation, easy to operate, economical and practical.

This centrifuge can not only be used in blood group serology work in blood stations, blood banks, laboratory departments, etc., but also in routine detection and research work in microbiology, biochemistry, etc.

2. Purpose

1. blood group serology microcolumn agglutination test

1) Red blood cell experiment: red blood cell blood typing, antibody screening, identification and cross-matching (cross-matching has more advantages: no washing is required, and the detection of incomplete antibodies can be completed in one step - Coombs cross-matching), red blood cell washing, cell separation wait.

2) Platelet test: platelet matching, platelet blood typing, platelet antibody screening and identification (platelet blood matching and platelet antibody screening are completed in one step, as simple and accurate as the saline hemagglutination test).

2. Red blood cell agglutination test, microbiology, biochemistry hemagglutination test.

three. Structural features:

1. The unique design of the aluminum alloy centrifugal rotor and the rack for hanging the six-tube test tube ensures that the angle between the axis of the six-tube test tube and the micro-column gel card and the centrifugal direction is zero during centrifugation. Ensure that after centrifugation, the liquid level in the hole is in a horizontal state, thus achieving satisfactory negative and positive results.

2. The centrifuge adopts an all-plastic shell, stainless steel hinges and a sapphire plexiglass cover, making it sturdy, beautiful, safe, and easy to clean and handle.

3. Fully automatic speed regulation program, when the load of the centrifuge is different, it can accurately achieve the required centrifugal force.

Four. Technical parameters:

1. Power supply: 220V±22V50Hz±1Hz2. Rated power: <200W

3. Ambient temperature: 5°C ~ 40°C 4. Relative humidity: <80%

5. Maximum rotation speed: 3000r/min6. Maximum relative centrifugal force: 730Kg

7. The highest timing: 99 minutes and 59 seconds 8. The noise of the whole machine: <85dB(A)

9. Dimensions: 410mm×320mm×210mm10. Weight: 9kg (excluding rotor)

11. Can be equipped with test pieces: angle rotor: can be equipped with eight test tubes (inner diameter 14mm, length 100mm).

Rotor for washing red blood cells: it can be equipped with 12 test tubes (inner diameter 10mm, length 100mm).

Horizontal rotor: can be equipped with micro-column gel cards and six-tube test tubes.

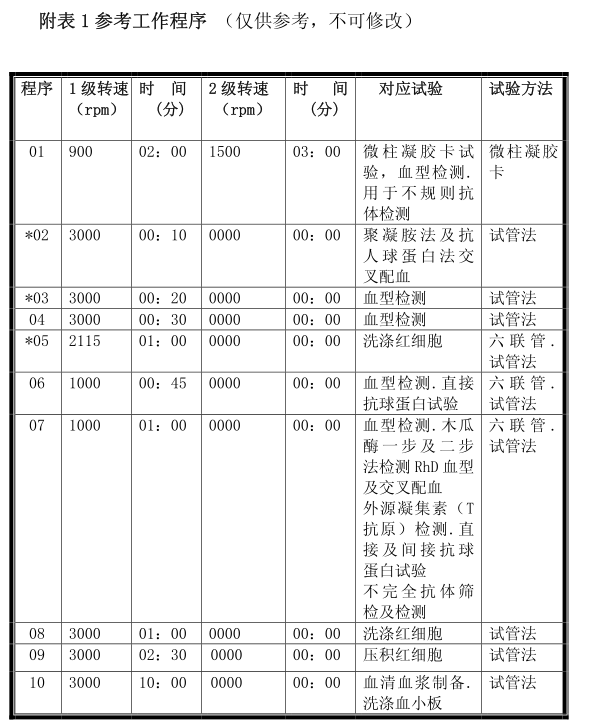

12. Programs can be set: 60 groups of programs can be set on this machine. There are 10 built-in reference programs (see attached table 1 for non-modification), and another 50 programs for users to set, modify and store by themselves.

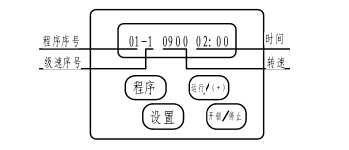

5. Operation guide (see panel diagram)

Application diagram of TD-3A centrifuge in the laboratory 1

1. Turn on the power: connect the cable, turn on the power switch, and the LCD screen will display "ChangChunBoYan" (Changchun Boyan). After a few seconds: "PleaesePressKey" is displayed.

2. Place the test piece: press the "Unlock/Stop" button, the door lock will pop open automatically, and the LCD screen will display "Lidisopen" (the lock has been opened). Open the upper cover, install the centrifuge rotor and test pieces (the test pieces, test tubes, cards, etc. need to be put in even numbers and symmetrically), then press the upper cover to lock the cover, and the LCD screen will display "Ready".

3. Run the program: press the "Program" button, select the desired program number, and then press the "Run/(+)" button. The centrifuge starts to work, and counts down. When the work is over, the door lock will automatically pop open, accompanied by a prompt sound.

Note: If the door lock is not locked, press the "Run/(+)" key, and the LCD screen will display "CloseTheLid!" (Please close the door!) with a prompt sound. At this time, press the upper cover to lock the cover lock, and it can be operated.

4. Stop operation: Press the "unlock/stop" button during operation, the operation will stop, and the door lock will automatically pop open after stopping, accompanied by a prompt sound.

5. Set the program: Press the "Setting" button, the LCD screen will start to flash from the first digit of the program number, and then press the "Setting" button to move the flashing digit to the right, and so on to set the program digit sequence. After the program bit sequence is set, press the "run/(+)" key to add 1 to the blinking bit value, then touch the "run/(+)" key to add 1 to the blinking bit value, and so on to set the program bit value. After all the program bit sequences and bit values are set, press the "Program" key to stop flashing and save.

6. Matters needing attention

1. The table on which the centrifuge is placed should be solid and flat, and the four rubber feet should be in contact with the table and be evenly stressed to avoid vibration.

2. The power supply needs to have a ground wire.

3. When the centrifuge is working, do not move the centrifuge, and do not open the upper cover.

4. After starting up, if there is no display on the LCD screen, please check the power supply and fuse.

5. Sometimes when the program displays incorrect characters, please turn off the power, and turn it on again after a few seconds to clear it.

6. If the cover lock cannot be opened due to an accident, you can use a lock-unlocking screwdriver to push through the hole on the right side of the box to open the lock.

7. After the work of the day is over, cover the upper cover, lock the cover and turn off the power.

8. This product is guaranteed for one year.
