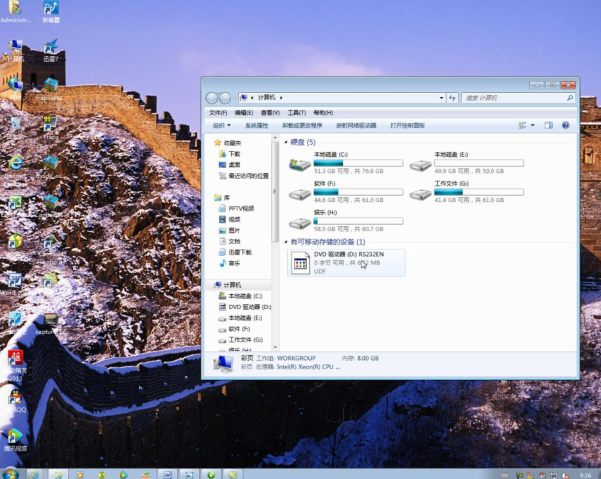

one. Put the RS232 CD into the CD-ROM drive, and click My Computer. Figure 1.
two. Right-click to open the disc. Figure 2

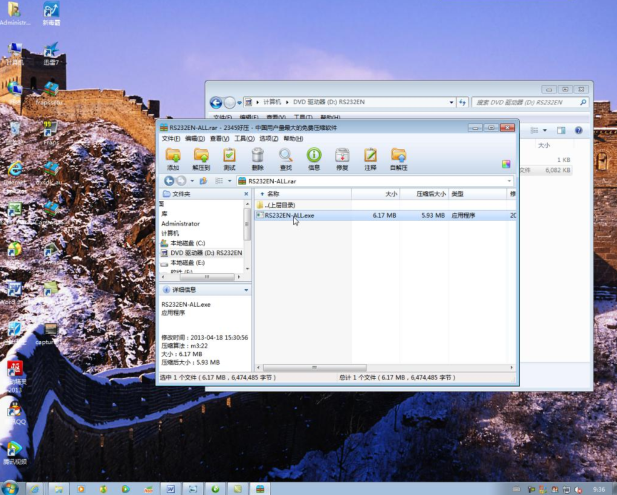

three. Select RS232EN, click RS232.EXE, and install S232 software. Figure 3. Figure 4.

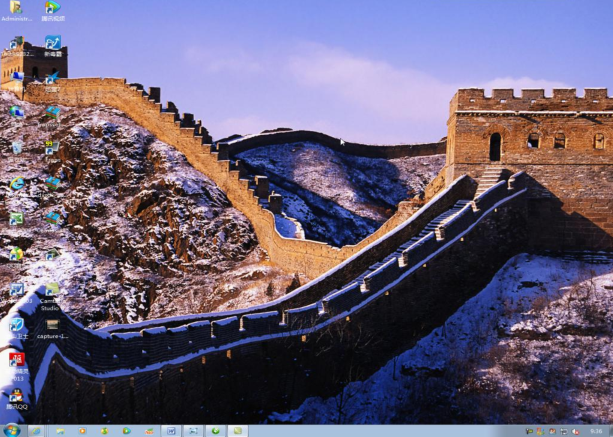

Four. Keep clicking Next until the installation is complete. As shown in Figure 5. There is an RS232 shortcut icon on the desktop.

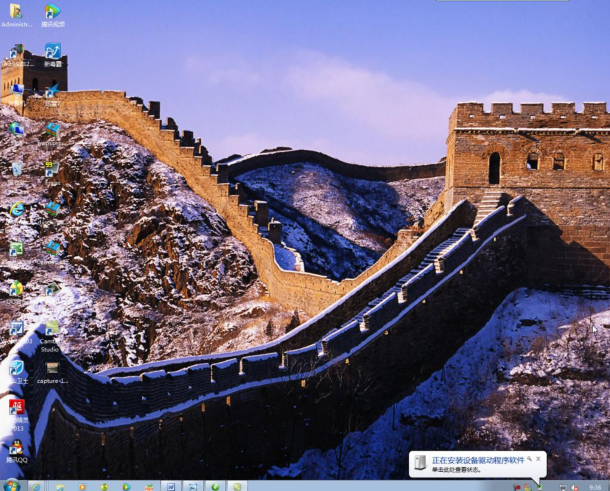

five. Plug in the bluetooth adapter, the bottom right corner of the desktop shows that it is searching to install the driver, and wait for the installation to complete. As shown in Figure 6,
six. After the installation is complete, the Bluetooth logo will be displayed in the lower right corner of the desktop, as shown in Figure 7.

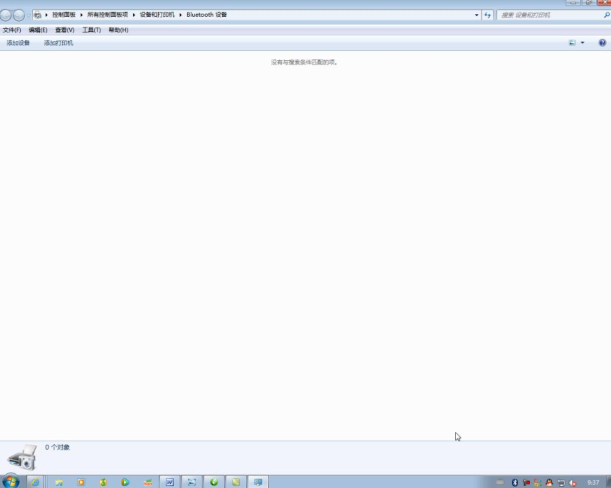

seven. Double-click the Bluetooth logo, and the interface shown in Figure 8 appears.

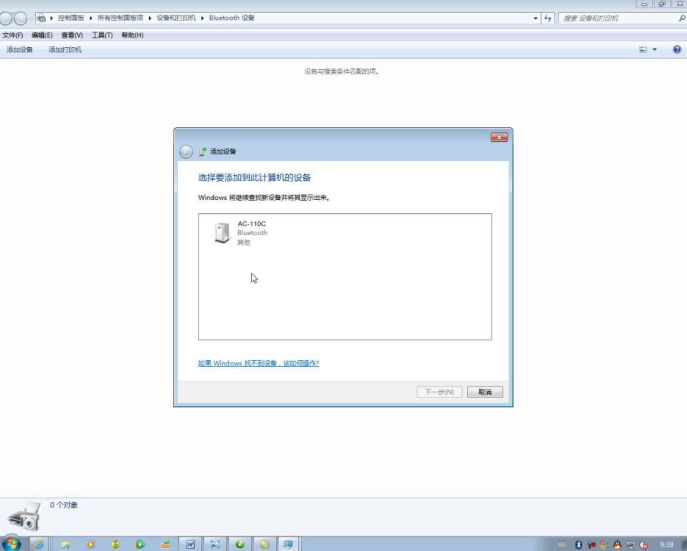

eight. Turn on the instrument, click Add Device in the upper left corner of the computer, and search for the instrument as shown in Figure 9.
Nine. Select the instrument, click Next, and the interface shown in Figure 10 will appear.

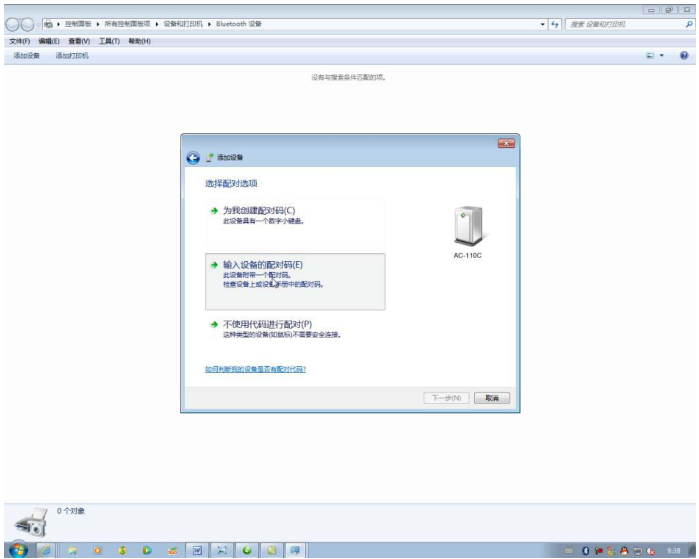

10. Choose to enter the pairing code: 1234, click Next, until the pairing is complete, close. Figure 11.

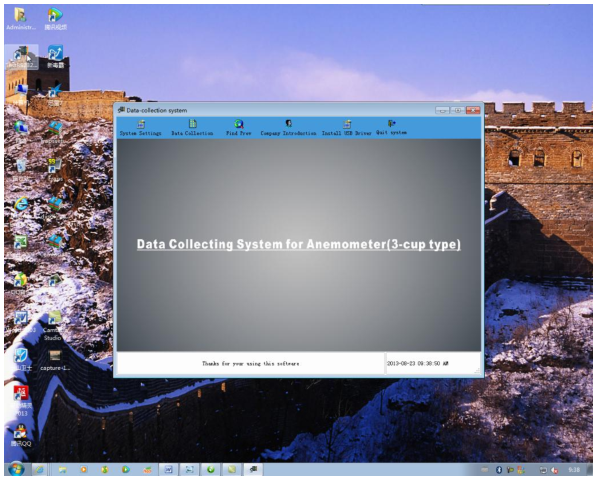

11. Click RS232 to enter the acquisition software system, as shown in Figure 12.

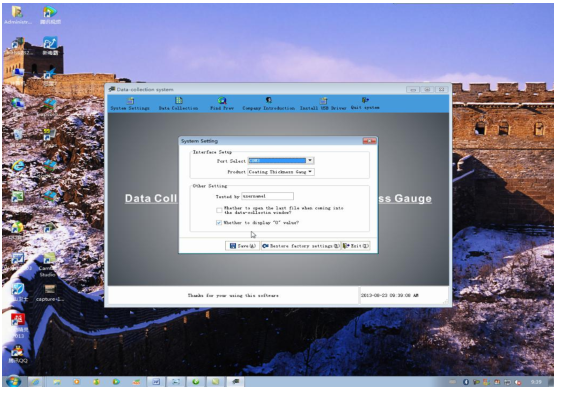

twelve. Click on the upper left corner of the software interface: Systansettings, select the com port and instrument type. Save and exit. Figure 13.

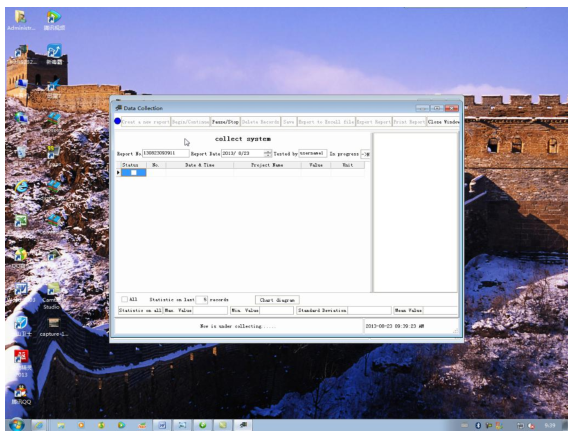

Thirteen. Click: Datacollection in the upper left corner of the software interface to enter the collection interface, and click to start collection or create a new collection. Figure 14

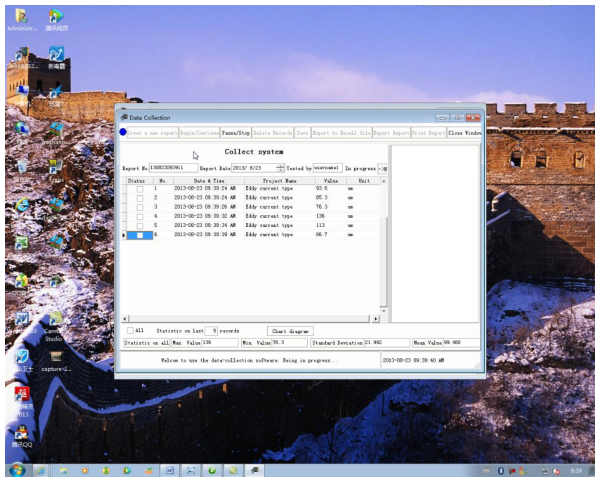

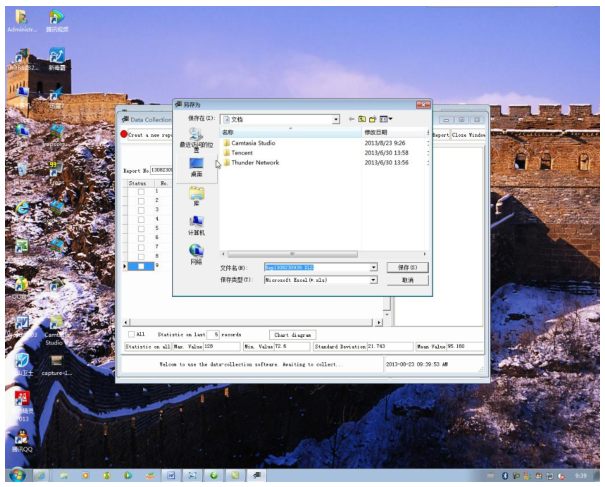

14. After the collection is completed, save and export to a folder. Figures 15, 16, complete.
