Beijing Times TH130 Leeb Hardness Tester manual

product description

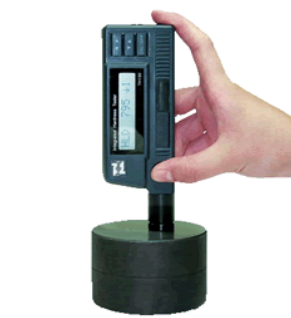

TH130 Leeb Hardness Tester is a new type of pocket type integrated hardness testing instrument, which is mainly suitable for testing the hardness of metal materials. It has the characteristics of high testing accuracy, small size, easy operation, convenient carrying and wide measuring range. Leeb hardness is the principle, the measured Leeb (HL) hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore and other hardness values ​​through the program, and various test accessories can also be configured to meet various test conditions It is mainly suitable for rapid hardness testing of metal materials, especially suitable for on-site hardness testing of large parts and non-detachable parts.

Features

●TH130 integrated Leeb Hardness Tester is a professional pocket-sized hardness testing instrument, which is easy to carry;

●TH130 is equipped with D-type impact device;

●Directly test large and heavy test pieces or permanently installed assembly parts;

Small size, easy to test small space for large workpieces;

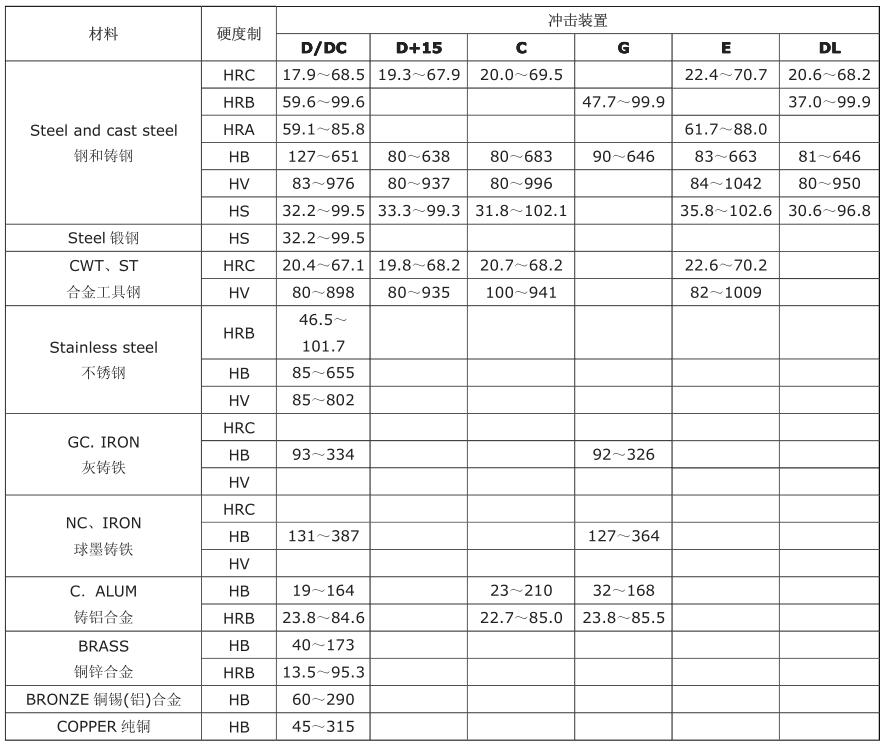

●It can test six hardness systems (HV, HRC, HRB, HB, HV, HS), and can be converted between them;

●Fewer keys, easy to operate, you can directly select the test material and test direction through the keyboard;

●External printer can be connected to print test results
