Beijing Infrared Times TH150 Leeb Hardness Tester instruction manual

product description

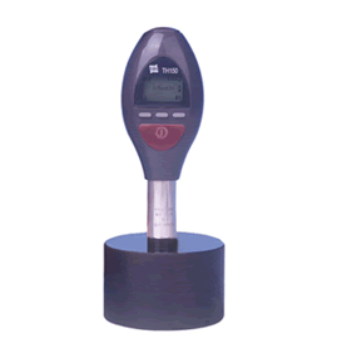

TH150 Leeb Hardness Tester is a new type of pocket type integrated hardness testing instrument, which is mainly suitable for testing the hardness of metal materials. It has the characteristics of high testing accuracy, small size, easy operation, convenient carrying and wide measuring range. Leeb hardness is the principle, the measured Leeb (HL) hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore and other hardness values ​​through the program, and various test accessories can also be configured to meet various test conditions It is mainly suitable for rapid hardness testing of metal materials, especially suitable for on-site hardness testing of large parts and non-detachable parts.

Features

●TH150 integrated Leeb Hardness Tester is a professional pocket-sized hardness testing instrument, which is easy to carry;

●TH150 is equipped with D-type impact device;

●Directly test large and heavy test pieces or permanently installed assembly parts;

Small size, easy to test small space for large workpieces;

●A maximum of 256 data can be stored

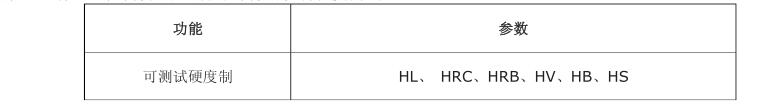

●It can test the conversion between six hardness systems (HV, HRC, HRB, HB, HV, HS);

●External printer can be connected to print test results;

●Low power indication and automatic shutdown function

●English interface, backlight display
