1. Product overview:

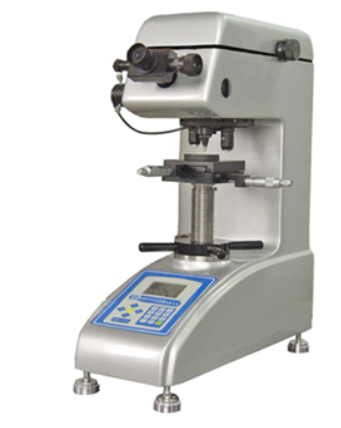

THV-5 small load Vickers Hardness Tester is a new type of Hardness Tester that combines precision machinery with light, electricity and computer software. It can be used to test Vickers or Knoop hardness, and the hardness value can be calculated by inputting the measured diagonal value into the all-in-one calculator. The test carried out by this machine is carried out in accordance with relevant standards of GB/T4340.1-1999 and EN-ISO 6507.
The test consists of two parts. In the first part, the diamond indenter is driven by a known force and pressed into the surface of the material under test. In the second part, the user measures the diagonal length of the indentation and inputs the measured reading into the host computer, and then the host computer calculates the corresponding Vickers or Knoop hardness value.
2. Features:
Tiny parts, thin steel plates, metal foils, IC foils good wires, thin hardened and plated glass, jewelry and ceramic material strength, heat treatment, depth of carburized layer and quench hardened layer.
3. Technical parameters:
HV0.2, HV0.5, HV1.0, HV2.0, HV
3.0, HV 5.0
Test force unit gf, mN
Test force (Kgf) 0.2, 0.5, 1.0, 2.0, 3.0, 5.0
Test Force Options
Change the handwheel selection through the test force, and the selected force is displayed on the screen. Loading and unloading control is automatic (loading/staying/unloading)
Test force holding time
1-99 seconds (1 second increments)
Test mode HV/HK
Hardness value
Manual measurement, keyboard input, automatic calculation and display
Objective lens 10×, 20× (measurement)
Eyepiece 10× total magnification 100× (observation), 200× (measurement)
Measuring range 400μm
The maximum height of the test piece is 85mm
Maximum depth 120mm (from the center)
Light source brightness 8 levels adjustable Loading motor 2.5W, 220V AC
Power AC220V, 60/50Hz
Machine power consumption≤20W
Display 5V/3W LED
Dimensions 490×185×553㎜
Weight 40kg
Resolution 100×: 1μm 200×: 0.5μm
XY platform size: 100×100㎜; stroke: 25×25㎜; resolution : 0.01mm;
