Latex paint is made by mixing water-dispersed polymer emulsion and pigment water slurry.
1. Polymer emulsion
The polymer emulsion is composed of various vinyl monomers, in the presence of an emulsifier, initiated , and the emulsion polymerization obtains a polymer dispersion with a high relative molecular weight.
Such emulsions are divided into two types: thermoplastic and cross-linked emulsions. Thermoplastic emulsions such as polyvinyl acetate and polyacrylic acid emulsions have good performance after film formation due to their high molecular weight. The crosslinkable ones have reactive groups and can be crosslinked at room temperature or thermally cured to form a film. More than 90% of latex paints are thermoplastic, while a small amount of cross-linked emulsion paints are mainly used in metal finishing and protection.
Some polymer emulsions use emulsifiers to forcibly in water to form resin emulsions. After the coating film is cured and cross-linked, the relative molecular weights are increased to give performance. Such as water emulsion of liquid epoxy resin, water emulsion of low molecular weight chlorosulfonated polyethylene resin , some polyurethane emulsion and alkyd resin emulsion, etc. Epoxy resin emulsion can be cured and cross-linked by modified polyamide , phenolic (amine adduct, polyurethane, etc.); chlorosulfonated polyethylene resin emulsion can be cured and cross-linked by metal oxide vulcanization.
2. Pigment water slurry
The latex paint can add corresponding coloring pigments, fillers and antirust pigments according to the application. Since the polymer emulsion will destroy the stability of the latex under strong mechanical force, the emulsion is not used as a vehicle for color (filler) material grinding. Usually, the pigment is dispersed in water with a pigment dispersant to make a pigment water slurry, which is then transferred into an emulsion form a latex paint.
3. Film-forming aids
Latex coatings need to add film-forming aids, which are low-volatility organic co-solvents. During the film-forming process of latex reduce the glass transition temperature of the resin, which is conducive to the deformation of micelles and promotes the fusion between colloidal particles. , so that it forms a continuous and uniform dense coating. Because it can reduce the film-forming temperature, so that the coating can form a good coating film at an ambient temperature lower than the glass transition temperature of the resin, it is called a film-forming aid.
4. Other additives
According to its characteristics, latex paints generally need to add thickeners to improve storage stability and improve construction performance; add defoamers to improve the appearance of the coating film; add polyols Add a mildewcide. For metal latex primers, early "flash corrosion" phenomenon is easy to occur after coating, and corresponding "flash corrosion" inhibitors need to be added.
Latex coatings are divided into two categories: architectural latex coatings and metal latex coatings according to their uses. Latex coatings for construction are mainly used for interior and exterior walls and ground finishing; latex coatings for metal can be used as primers and topcoats for industrial maintenance coatings and certain mechanical products. Latex paints are widely used thermoplastic emulsion polymer latex paints.
5. Characteristics of latex paint
(/1) Water is used as the dispersion medium, which is safe and low-pollution, generally only contains less than 5% co-solvent, and is low-toxic;
(2) The construction is convenient, and it can be used for rapid coating, roller coating and spraying, and the tools are easy to clean after construction;
(3) Latex coatings have good air permeability, can be applied on the surface of wet substrates, and are also very suitable for construction in hot and humid environments;
(4) The metal latex paint is diluted with water and has no fire hazard. It is very suitable for painting in the shipbuilding industry
Cross-operation with welding;
(5) The paint dries quickly, allowing recoating within 0.5~2h, which greatly shortens the construction period;
(6) The latex paint has a high solid content under the construction viscosity, and the coating film is thick at one time, which improves the construction efficiency ;
(7) The relative molecular weight of the resin in the emulsion dispersion system is very high, the coating film has good weather resistance, and has a good
Excellent mechanical properties, alkali resistance and water resistance. As architectural coatings, it has good gloss and decoration; as metal
Latex paints have general protective properties.
(8) The disadvantages of latex coatings are poor low-temperature film-forming properties, and generally need to be applied at temperatures above 10°C; the coatings are pseudo-plastic and easy to thicken, and the fluidity and wet film leveling of the coatings are poor; the viscosity rises rapidly after water volatilization, and the coating film is easy to Bubbles and pinholes are generated; the surface tension of water is high, and the wettability of the paint to the substrate is poor. In the process of paint making and use, strong mechanical force will destroy the stability of latex paint, causing the paint to flocculate and deteriorate.
6. Durability of latex paint

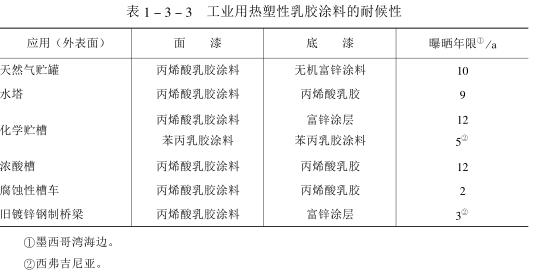

Because the relative molecular weight of latex paint is very high, if both the primer and the top coat are made of latex paint, the durability will be more than 5 years when the total thickness of the coating is 100-150 μm, which is better than that of solvent-based paint. The weather resistance of latex coatings for industrial use is shown in the table.
