Choice of film drying method

The film drying method should be selected according to the drying specification of the paint, the quality of the parts, the wall thickness and shape, and the production batch. You can refer to the following table:

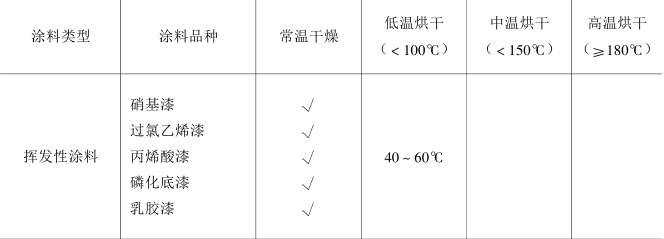

Selection of coating film drying method with picture 1

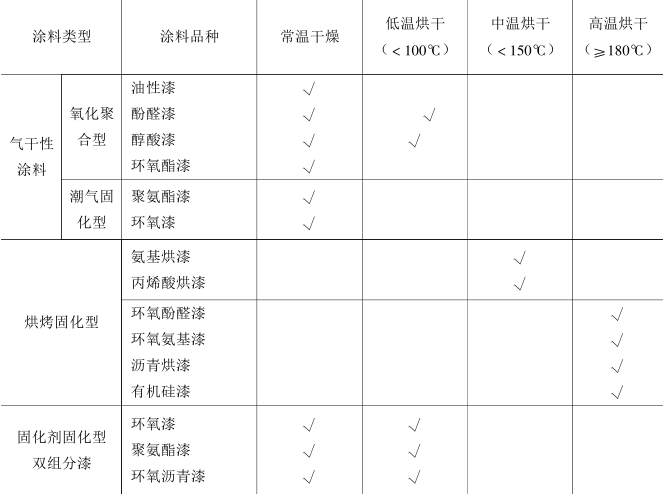

Selection of coating film drying method with picture 2

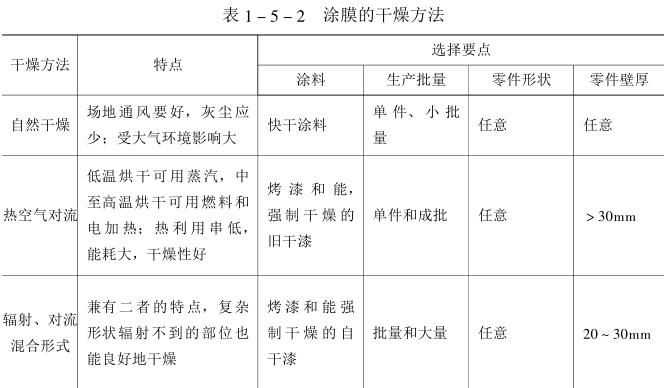

Selection of coating film drying method with Figure 3

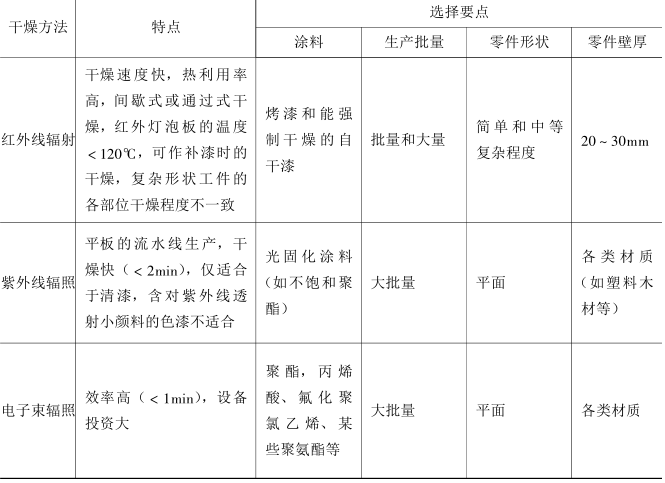

Selection of coating film drying method with Figure 4
