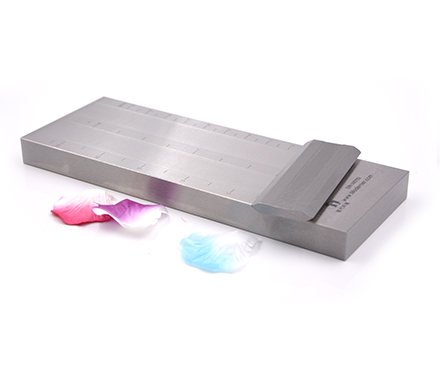

The scraper Fineness Meter is a precision instrument used to check the size or dispersion uniformity of particles such as paint, color paint or paint paste, inner color (filler), that is, to detect the fineness. The fineness of the coating can affect the gloss, appearance, corrosion resistance and storage stability of the coating.
How to use the Fineness Meter
1. The scraper fineness gauge needs to be cleaned and dried with solvent before use, and a soft cloth should be used for scrubbing.
2. During operation, drop the sample into the deepest part of the groove (it is advisable to fill the groove with a little excess), hold the scraper with both hands, and place it horizontally on the upper end of the polished plate (at the edge of the sample), so that the scraper and the The polished flat surface is in vertical contact.
3. Within 3 seconds, pull the scraper from the deep part of the groove to the shallow part, so that the paint sample fills the groove without leaving any residual paint on the plate. Immediately (not more than 5s) after the scraper is pulled, make the line of sight and the groove plane form an angle of 15°~30°, and observe the scale line (accurate to the minimum division value) where the particles in the groove are evenly exposed to the light. If there are individuals exposed on other graduation lines, there shall not be more than 3 particles within the range of the reading and adjacent graduation lines.
Suggested articles:
★ "Detailed use of scraper Fineness Meter"
★ " Correct use of scraper Fineness Meter "
★ "Using Method of Scraper Fineness Meter: Measuring the Fineness of Slurry"
★ "Using method of scraper Fineness Meter to measure the fineness of paint"
★ "Using method of scraper Fineness Meter to measure the grinding fineness of paint"
★ "Introduction to Coating Fineness Test Instruments and Test Methods"
★ "How to deal with unqualified paint fineness"
★"Operating Instructions for Scraper Fineness Meter - Pushen"
★"Operation Instructions for Scraper Fineness Meter-Kexin"
☆ "Determination of Coating Fineness [GB1724-79]" (standard)
*Click on the article title to read
Fineness meter operation video
Suggested articles:
★"The video tells you how to use the scraper Fineness Meter"
*Click on the article title to read
How to read the fineness gauge
Immediately after scraping (no more than 3s), set the line of sight at an angle of 20-30 degrees to the board surface, observe the point where the particles in the groove are densely packed against the light, and record the reading (accurate to the minimum graduation value).
Observe the place where the dense particles appear in the sample, and look for a 3mm wide strip with no more than 5-10 particles. The upper limit reading of the strip is the fineness value. Particles may not be considered.
Suggested articles:
● "How to read the scraper Fineness Meter"
*Click on the article title to read
Fineness meter maintenance method
细度计的保养，除了工作中及时清洗干净外，还要避免磕碰，特别是工作面，刮刀更好放置于旁边，搁在细度板上，看上去整洁，稍不注意刀刃尖角会把凹槽磕出缺口。因使用频繁，刮刀的刀刃也容易磨损，当刀刃与细度板最浅凹槽垂直时，如果有光线透过，则表明刮刀的刃口已经严重受损，此时测量值会大于实际值，造成测量误差，这时需要更换新的刮刀，保证测量结果准确。
建议文章：
●《刮板细度计的保养方法》
*点击文章名进入阅读
细度相关知识标准
相关知识
*点击文章名进入阅读
相关标准
◆GB/T 13217.3-2008《液体油墨细度检验方法》现行
◆GB/T 27596-2001《染料 颗粒细度的测定 显微镜法》现行
◆GB/T 21867.2-2008《颜料和体质颜料 分散性的评定方法 第2部分：由研磨细度的变化进行评定》现行
◆GB/T 21990-2008《聚氯乙烯（PVC）煳 刮板细度的测定》现行
◆ASTM D1210-1994《用海格曼细度计测定颜料 漆料体系的分散细度》
◆ISO 1524-2000《色漆 、清漆和印刷油墨 研磨细度的测定》
◆GB/T 13217.3-2008《液体油墨细度检验方法》现行
◆GB/T 10664-2003《涂料印花色浆 色光、着色力及颗粒细度的测定》现行
◆GB/T 13217.3-1991《凹版塑料油墨检验方法 细度检验》废止
◆GB/T 10664-1989《涂料印花色浆色光、着色力及颗粒细度测定法》废止
◆GB/T 6753.1-2007《色漆清漆和印刷油墨研磨细度的测定》现行
*点击文章名进入阅读
刮板细度计国内外良好品牌
南北潮商城专业销售刮板细度计，点击下表图片，查询刮板细度计的价格、库存、选型方法及更多详细资料。
| 荷兰TQC | 现代环境 | 上海普申 |
 |  |  |
| British SHEEN | Shanghai Jingke | Tianjin Yonglida |
 |  |  |
| Kexin Instrument | Germany BYK | Jinfulun |
 |  |  |
For more scraper Fineness Meter products, technical knowledge, verification regulations, standards, etc., please enter NBCHAO Mall ( www.nbchao.com ) .
