Technical specification:
Range 1 | Measuring range: | 0-1500μm (0-60mils) | Accuracy*: ±1% or ±1μm (±0.04mil) | |
| Resolution: | 0.1μm: 0-200μm; 0.5μm: 200-500μm; 1μm: 500-1500μm (0.005mil: 0-8mils; 0.02mil: 8-20mils; 0.05mil: 20-60mils) | |||
|
|
|
| |

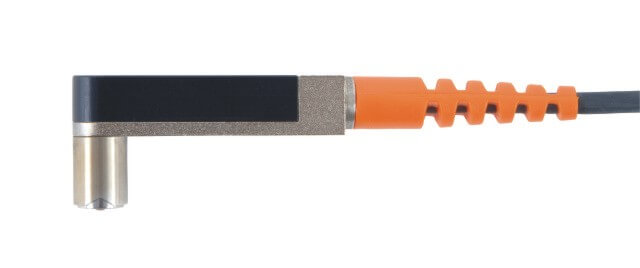

standard | right angle | remote | N1 standard | |
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F1 standard | T35511952 | 85mm (3.35") | 6mm (0.24") | • |
| F1 right angle | T35511953 | 28mm (1.10") | 6mm (0.24") | • |
| F1 remote | T35511959 | 30mm (1.18") | 6mm (0.24") | • |
| N1 standard | T35511982 | 85mm (3.35") | 8mm (0.31") | • |
Range 2 | Measuring range: | 0-5mm (0-200mils) | Accuracy*: ±1% or ±5μm (±0.2mil) | |
| Resolution: | 2μm: 0-500μm; 5μm: 500-5000μm (0.1mil: 0-20mils; 0.2mil: 20-200mils) | |||
|
|
| ||
| F2 standard | F2 remote | N2 standard | ||
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F2 standard | T35511954 | 89mm (3.50") | 10mm (0.39") | • |
| F2 remote | T35511960 | 36mm (1.42") | 10mm (0.39") | • |
| N2 standard | T35511984 | 88mm (3.46") | 18mm (0.71") | • |
Range 3 | Measuring range: | 0-13mm (0-500mils) | Accuracy*: ±2% or ±30μm (±1mil) | |
| Resolution: | 5μm: 0-1mm; 10μm: 1-13mm (0.2mil: 0-40mils; 0.2mil: 40-500mils) | |||
| ||||
| F3 standard | ||||
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F3 standard | T35511956 | 102mm (4.02") | 18mm (0.71") | • |
Range 4 | Measuring range: | 0-250µm (0-10mils) | Accuracy*: ±1% or ±1μm (±0.04mil) | |
Resolution: | 0.1µm: 0-250µm (0.005mil: 0-10mils) | |||
|
|
| ||
| F4 standard | F4 right angle (long) | N4 standard | ||
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F4 standard | T35511950 | 85mm (3.35") | 4mm (0.16") | • |
| F4 right angle (long) | T35511951 | 18mm (0.71") | 3mm (0.12") | • |
| N4 standard | T35511980 | 90mm (3.54") | 8mm (0.31") | • |
Range 5 | Measuring range: | 0-800µm (0-32mils) | Accuracy*: ±1% or ±2μm (±0.08mil) | |
| Resolution: | 1µm: 0-800µm (0.1mil: 0-32mils) | |||
| ||||
| F5 Rebar | ||||
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F5 (rebar) | T35511962 | 85mm (3.35") | 4mm (0.16") | • |
Range 6 | Measuring range: | 0-25mm (0-1000mils) | Accuracy*: ±2% or ±100μm (±4mils) | |
Resolution: | 10µm: 0-5mm, 50µm: 5-25mm (0.5mil: 0-200mils, 2mil: 200-1000mils) | |||
| ||||

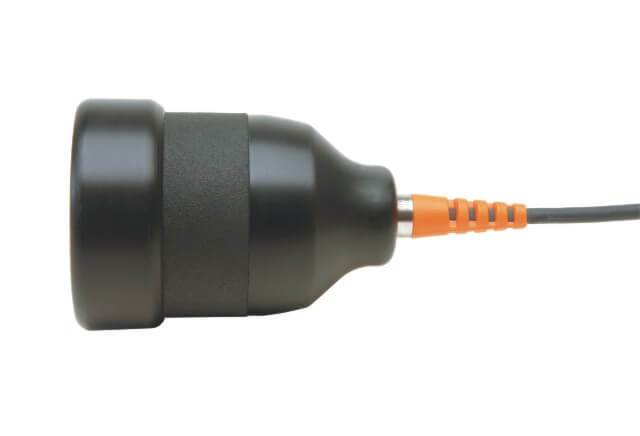

| F6 standard | ||||
probe style | part number | Minimum headroom | Minimum sample diameter | Certificate |
| F6 standard | T35511964 | 150mm (5.9") | 51mm (2.0") | • |
* whichever is greater
● Comes with test certificate as standard.
