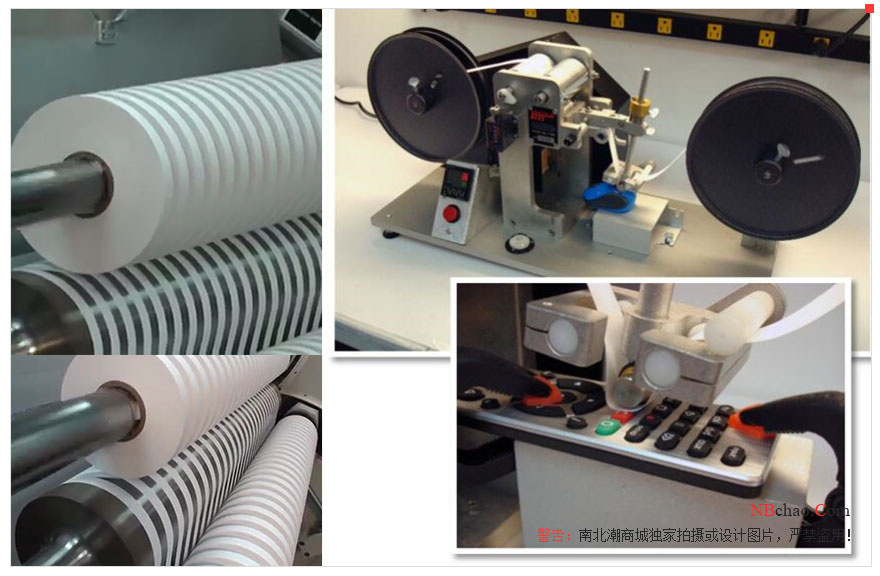

RCA paper tape abrasion machine is a small part of abrasion testing equipment, mainly used for abrasion testing of external coatings, mobile phone keys, etc., and is currently widely used in the mobile phone industry, rubber, silicone, plastic casings, etc., is a class of use Convenient, powerful test instrument. How to use the paper tape grinding machine?
RCA paper tape abrasion Tester operation method:
1. Install the paper tape: remove the alloy plate of the paper tape wheel on the right side of the Tester, fix the paper tape, and then lock the alloy plate.
2. Body level correction: Calibrate the body level with reference to the spirit level, that is, the water drop in the middle of the level meter needs to be in the middle part. If it is not in the middle, it can be adjusted to the level through the four tripods at the bottom of the machine.
3. Fix the object to be tested on the storage platform (the object to be tested needs to be located directly under the test roller), fix it with double-sided adhesive or hot melt adhesive, let the small roller press on the surface to be tested, and adjust the height of the small platform so that After the upper level bead is in the horizontal position, lock the small platform to prevent it from moving during the test.
4. Turn on the power, reset the counter and accumulative counter to zero, and set the number of operations according to different specifications of products.
5. Pass the RCA wear-resistant test paper tape under the right paper guide wheel, the surface of the object to be tested, and the roller seat (just insert the paper tape into the roller seat when the machine is running) under the left paper guide wheel, and finally insert The paper tape is fixed on the take-up tray.
6. Turn the ON/OFF power switch to the ON position, and the counter starts counting.
7. Accumulation function of detection times: When the preset number of rotations of the driving wheel has not detected the printing life, the detection action can be continued. At this time, just press the reset button (RESET), and the machine will automatically run the previously set rotation times (note that other detection products cannot be replaced), and automatically record the total running times of the driving wheel.
8. After the test: Take out the tested object, clean the test table, reset the counter to "0", and cut off the power switch.
Norman Tool has been focusing on the production of RCA tape abrasion Testers and providing professional technical services to global customers. And in 1964, it developed the first paper bag abrasion Tester. As a good example of the paper tape abrasion machine, Norman Tool has always been in a professional position in the paper tape abrasion machine market.
