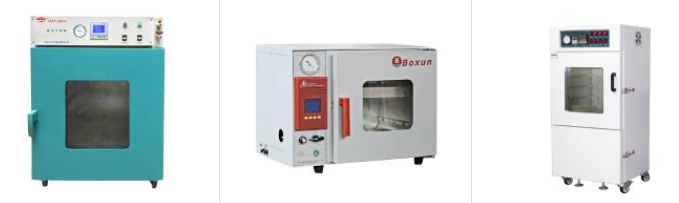

Digital Forced Air Drying Oven
The instrument is suitable for measuring moisture in coal, drying items, and other drying heat treatment. The heating and constant temperature system in the box is composed of a digital temperature controller, an electric heater and a low-noise motor; the temperature control is intuitive and easy to read; the temperature of the working room is constant between room temperature and 300 °C; the double-layer tempered glass observation window on the box door , easy to observe the heating in the box. The products produced by advanced laser and numerical control processing equipment are used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Precautions for digital Forced Air Drying Oven
1. The shell of the drying box needs to be well and effectively grounded for safety.
2. Do not put perishable, flammable and explosive items into the drying box for drying.
3. When the newly set temperature is lower than 100°C, use the second heating method to prevent the temperature "overshoot" phenomenon. Assuming 50°C, set it to 40°C for the first time, and then set it to 50°C after the temperature overshoot begins to fall .
4. When the drying box is working, it is necessary to turn on the fan switch to make it run, otherwise the temperature in the box and the measured temperature will have a large error, and this operation will cause the motor or sensor to burn out.
5. The inside of the box should always be kept clean, and if not used, it should be covered with a plastic dust cover and placed in a dry environment room.
6. When the temperature of the working chamber of the Drying Oven is close to the set temperature, the heating indicator light will turn on and off repeatedly, which is a normal phenomenon. Generally, about 30 minutes after the measured temperature reaches the control temperature, the temperature in the working room enters a constant temperature state.
The inside of the digital display Forced Air Drying Oven is made of mirror stainless steel argon arc welding, and the outside of the box is made of steel plate, which is beautiful and novel in shape. It adopts a microcomputer PID temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is reliable. The hot air circulation system is composed of a fan that can operate continuously at high temperature and a suitable air duct to improve the temperature uniformity in the working room. It adopts a new type of synthetic silicon sealing strip, which can run at high temperature, has a long service life and is easy to replace.
