Configuration of Metering rod on universal Spreader

The Mayer rod coating method is simple, accurate, uniform and inexpensive, making it the third most popular method of coating films. Quick coat weight changes and a wide range of film thicknesses make it flexible enough to work with virtually any coating and substrate.

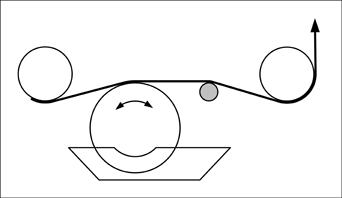

SINGLE MAYER ROD (COMMON)

The configuration method of the metering rod on the universal coating machine is shown in Figure 1

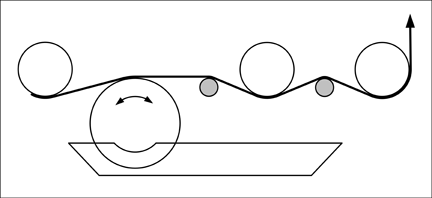

Double Meyer Rod

The configuration of the metering rod on the universal coating machine is shown in Figure 2

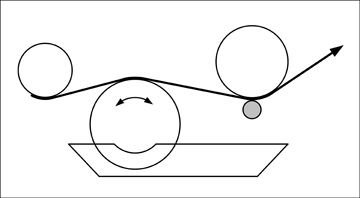

Meyer Rods & Backing Rolls

The configuration of the metering rod on the universal coating machine is shown in Figure 3

double sided configuration

The configuration of the metering rod on the universal coating machine is shown in Figure 4
