1. Basic measurement

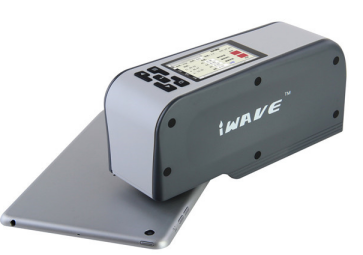

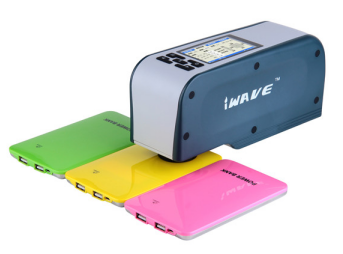

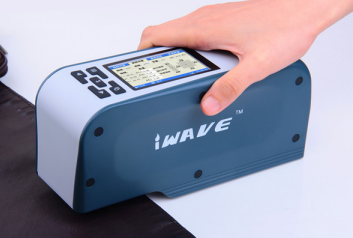

1) It can measure solid-color objects with flat surfaces (transparent or opaque)
2) Measurable surface texture, patterns, pitting, bumps (such as asphalt pavement), wet objects
The advantage of using a large-caliber measuring port for measurement is that the condition of the surface to be measured is consistent every time, which is an effect that is difficult to achieve with a small-caliber measuring port.

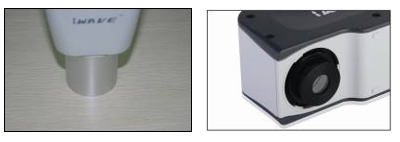

The following are the 40mm measuring aperture and 16mm measuring aperture unique to Weifu Optoelectronics:
2. Special measurement
1) Can measure curved surface

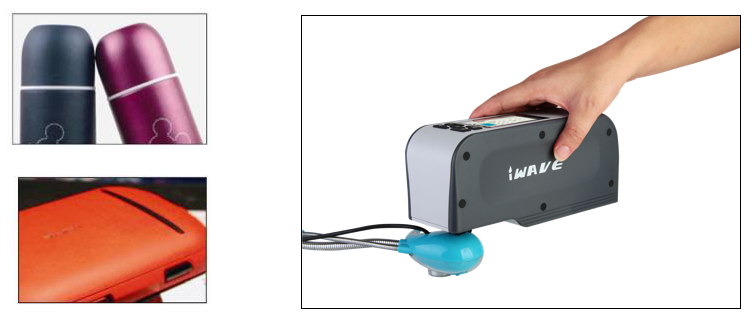

4mm diameter measurement caliber: 4m measurement caliber Colorimeter is a precision Colorimeter specially designed, especially suitable for small area, curved surface and other special surface measurement. It brings great convenience to users in the color quality inspection of small devices, small parts, and special curved surfaces.
For example
The color detection of rod-shaped plastic products with a diameter of 20mm, the color detection of the curved surface of high-end glass bottles, and the color detection of ceramic devices with convex and concave surfaces in security facilities can be easily and quickly completed with the help of the 4mm diameter of the WF series.
2) Measurable powder

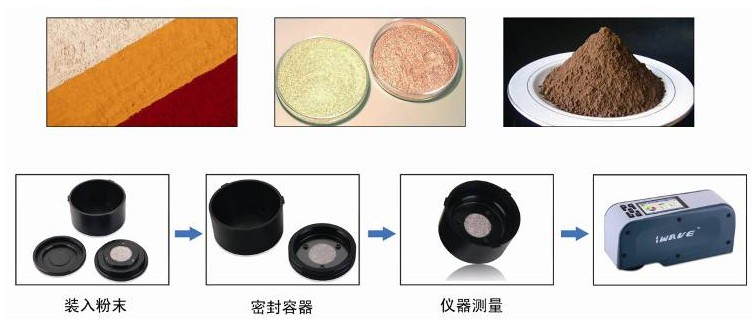

When measuring powder, the compactness of the powder, the smoothness of the surface, and the size of the powder particles will all affect the measured value. In order to avoid various influences and achieve accurate and stable measurement, the powder can be packed into a specially designed container, thereby ensuring that the characteristics of the powder remain highly consistent during multiple measurements.
3) Can measure liquids and particles
For the color difference measurement of liquids, Weifu has developed multi-functional test accessories to cooperate with the measurement of liquids, slurries, and large particle powders.
The use of multi-function test accessories is as follows:

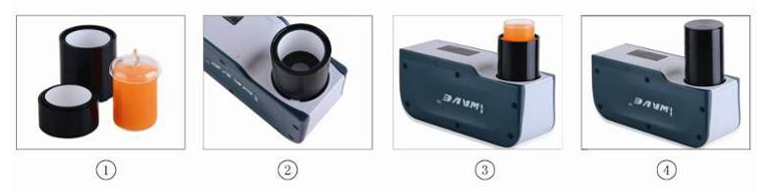

(1) In the figure are the lower part, upper part and quartz vessel of the optical integrating cavity
(2) Connect the lower part of the optical integration cavity with the measurement port
(3) Put the quartz vessel filled with liquid into the lower part of the optical integration chamber
(4) Cover the upper part of the optical integration cavity.
The measurement of liquids, slurries, and large particle powders is carried out in accordance with the above four steps:
When measuring slurries and large-grained powders, the combination of multi-functional accessories and instruments with a measuring caliber of 16mm can achieve better color measurement results.
