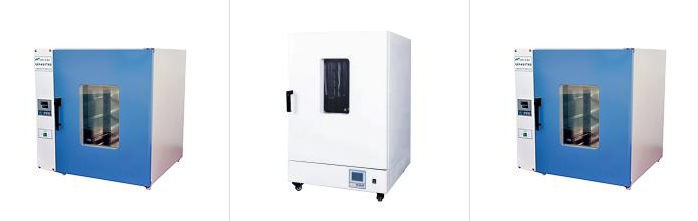

The Forced Air Drying Oven also has a name called an oven. Its drying method is electric heating. The drying of the Forced Air Drying Oven includes blast drying and vacuum drying. They achieve the same function in different ways and complete the drying of the sample. Drying, it is widely used in our life, not only can be used in medicine, but also can be used in automobile casting and other industries, let's take a look at the use of Forced Air Drying Oven and some related introductions.
How to use the Forced Air Drying Oven
1. The way and method of samples in the Forced Air Drying Oven: place the prepared items that need to be dried inside the Forced Air Drying Oven, and leave a certain space around the items. At the same time, the environment of the studio where the items are located must be To have sufficient airflow, the door of the Forced Air Drying Oven must be closed tightly.
2. The adjustment method of the damper of the blast drying box: first of all, it is necessary to understand the dryness of the item, and then adjust the damper appropriately. If the item is relatively wet, the degree of adjustment of the damper is relatively large.
3. How to turn on the blast drying box: First, find the power button of the drying box. If the indicator light of the power supply lights up, the motor of the blast drying box will start running. After the temperature controller completes the self-inspection work, the blast The PV display of the Drying Oven should display the measured temperature, and the sv display should display the set temperature, so that the Forced Air Drying Oven starts to work normally.
4. How to set the temperature: Find the set button and press it. When the pv display shows 5p, use the up and down arrows to adjust the temperature of the sv display. Just adjust it to the desired temperature. After the setting is completed, press the set button again, when the word 5t appears on the PV display, that is, the PV display has entered the timing state, if timing is not required, press the set button again, when the measured value appears on the PV display Temperature, when the set temperature appears on the sv display, the temperature setting is completed.
5. The method of shutting down the blast drying box: after drying the items, if you want to dry other items, first turn off the switch of the fan, so that the dried items will not be blown away, and then replace the desiccant , When replacing items, be careful not to touch the edge of the drying box, and finally close the door of the blast drying box, and then turn on the fan. If you don't want to take out the items immediately, adjust the damper to z, and then turn off the power, so that the inside of the drying box can continue to dry. If you do not need to dry other items, directly adjust the damper to three places, then turn off the power switch of the blast drying box, and then wait for a period of time, take out the items after the temperature of the box body drops, and finally talk about blast drying Clean the inside of the box.
