The laboratory ultrafine homogenizer is a kind of laboratory used for crushing, emulsifying, homogenizing, polymerizing, dissolving, stirring, etc. of different samples. The homogenizing working head is driven by a high-speed motor. Cooperating with the precision claw structure rotor and stator, the high-speed rotation of the rotor forms comprehensive kinetic energy such as high-frequency, strong circumferential tangential velocity, and angular velocity, so that the experimental materials are sucked into the rotor area from the bottom of the experimental container, and are discharged from the stator under the action of huge centrifugal force. out of the hole. The stator and rotor form strong and reciprocating hydraulic shearing, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects in a reasonably narrow gap. The experimental material circulates the above working process in the container, and withstands shearing, tearing, impact and mixing up to tens of thousands of times per minute, so as to achieve the effect of dispersion and homogeneity, and its efficiency is about a thousand times higher than that of ordinary stirring.
The laboratory disperser homogenizer is suitable for sample preparation in the field of biomedicine, enzyme treatment in the food industry, and in the pharmaceutical industry, cosmetics industry, paint industry and petrochemical industry, etc., liquid and liquid phase, liquid and solid phase, viscosity less than 0.2 Pa .s, in terms of experiments with liquid materials at temperatures below 80 °C. Under the triple action of extrusion in the feed liquid, strong impact and pressure loss expansion, the experimental medium can be refined and mixed more evenly to prevent or reduce delamination with the feed liquid. Such as: (homogenate of dairy products, beverages, cosmetics, pharmaceuticals and other products, soft and broken tissue cells.)

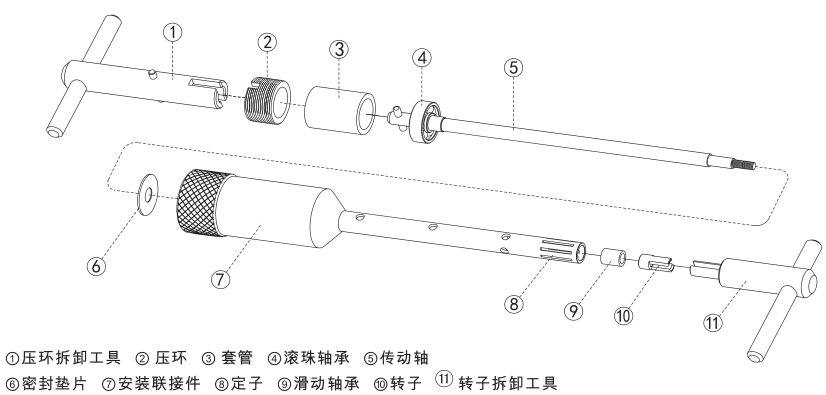

Homogenizer head parts and removal tools
