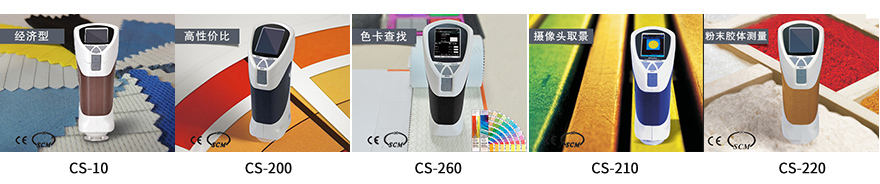

The color spectrum precision Colorimeter series has five models: CS-10, CS-200, CS-210, CS-220, and CS-260. So what are the specific differences between these five Colorimeters?
Comparison of features of color spectrum precision Colorimeter
CS-10 is an economical Colorimeter developed for large-scale use on the assembly line. It has all the basic functions required for measurement, and its high measurement accuracy also meets the needs of general color inspection work.
CS-200 is a Colorimeter developed to make up for the shortcomings of CS-10 in practical applications. It improves the measurement accuracy and adds the function of measuring yellowness and whiteness. It is currently the most cost-effective Colorimeter in CHINA.
CS-210 provides image information of the measurement area through the built-in micro camera, which is convenient for users to choose the appropriate measurement area. For samples with texture and uneven color, it is easier to align the measurement area during measurement.
CS-220 provides "SCE" measurement conditions for specular reflection removal, which is suitable for color quality control in powder, colloid, high reflection and other fields.
CS-260 can compare the measured color information with the Color Chart electronic database built in the system, and then obtain the closest Pantone Color Chart number, which is convenient for color matching personnel to query.
Comparison of Precision Colorimeter Parameters
| model | CS-10 | CS-200 | CS-210 | CS-220 | CS-260 |
| Lighting/light receiving | 8/d (8° illumination/diffuse light reception), including specular reflection light (SCI) | 8/d, SCE | 8/d, SCI | ||
| display mode | Chromaticity value: L*a*b, L*c*h, △E*ab, XYZ, Yxy, relative RGB value, staining fastness, color fastness; color difference value: △(L*a*b) ,△(L*c*h) | Chromaticity value : L*a*b, L*c*h, △E*ab, XYZ, Yxy, relative RGB value, staining fastness, color fastness; color difference value: △(L*a* b ) ,△(L*c*h); Whiteness value: Hunter whiteness, Ganz whiteness; Yellowness value: YI | |||
| Measuring caliber | Φ8mm (customizable Φ4mm ) | ||||
| Measurement conditions | CIE 10° standard observer; CIE D65 light source | ||||
| Measuring range | L*: 1~100 | ||||
| repeatability | Standard deviation △E*ab within 0.1 (measure the white calibration plate 30 times to get the average value) | Standard deviation △E * ab within 0.08 (measurement conditions: measure the white calibration plate 30 times to get the average value) | |||
| storage | 10 sets of standard samples, 100 sets of test samples for each set of standard samples | 100 sets of standard samples, 100 sets of test samples for each set of standard samples | |||
| measure time | about 0.5 seconds | ||||
| Measuring light source | led | ||||
| interface | USB2.0, printer | ||||
| Other functions | camera viewfinder | Powder colloid measurement | Color card search function | ||
