LS200 insulating glass discriminator is specially used to test the thickness of single-layer glass, insulating glass, triple-layer glass and the thickness of the air layer in the middle. The following describes how to replace the LS200 battery in detail.
This instrument is equipped with a 2032 button battery as standard, and it is more complicated to replace the battery than the general 7th and 5th batteries. You need to pay attention to the steps:

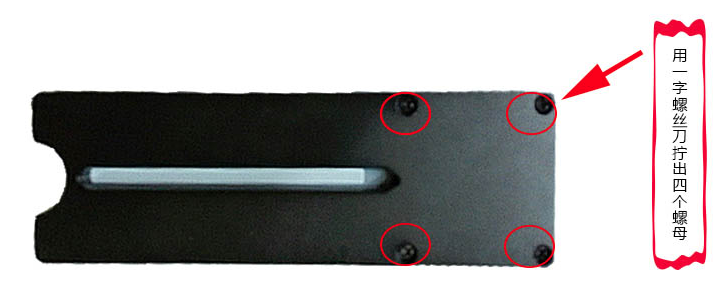

1. Remove the back cover of the insulating glass discriminator LS200, as shown in the figure below, and use a flat-head screwdriver to unscrew four nuts:

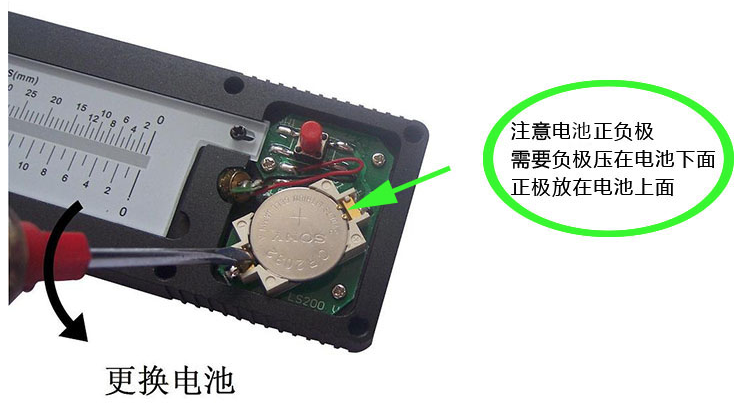

2. Take out the old battery, and pay attention to the positive and negative poles when replacing the battery. The picture of the battery of the insulating glass discriminator LS200 instrument is as follows:
Note: After taking out the battery, you can see that there are four corners in the slot. The negative electrode needs to be pressed under the battery, and the positive electrode should be placed on the battery. Do not press the four corners under the battery at the same time or put them all on the battery. This will cause no power supply. The instrument is completely unresponsive.
