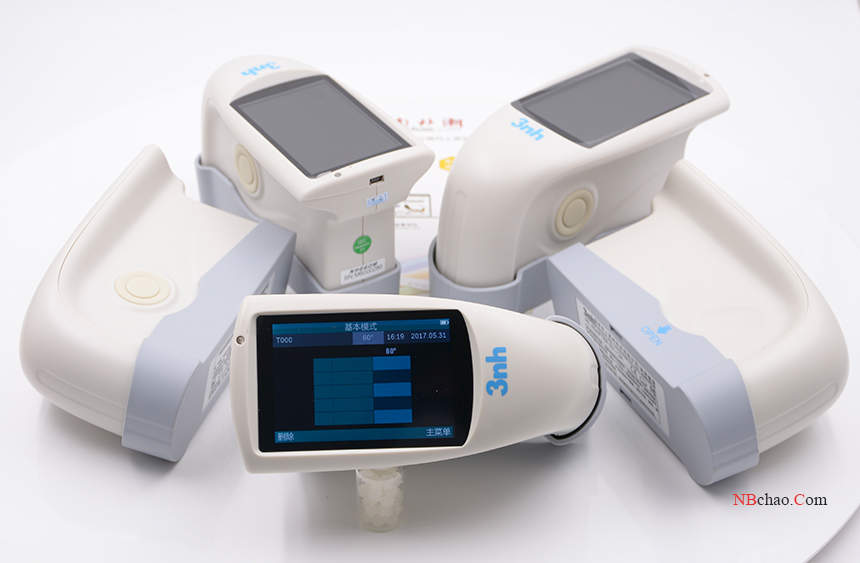

Sannchi gloss meter has HG series and YG series. The HG series is divided into non-touch screen HG series and touch screen NHG series, and is divided into HG60, HG60s, HG268, NHG60M, NHG268, NHG60 according to the measurement angle and measurement caliber . Six models. It can be used for gloss meter measurement and gloss data transmission in paint ink, coating, electroplating, plastic electronics, hardware and other industries. So what is the difference between these models?
1. Appearance design
Among them, HG60s is an economical model with a blue appearance; other models are white in appearance.
2. Measure the angle
HG60, HG60s, NHG60M, and NHG60 are single-angle models with a measuring angle of 60°. Among them, NHG60M is a microporous precision gloss meter with a measuring spot of 1.5x2mm (as shown in the figure below), and the others are ordinary measuring holes with a size of 9x15mm.
3. In terms of performance and function
1) HG 60S gloss meter:
Automatic calibration, display 3 sets of measurement data at the same time, single-angle 60° test data,
Range: 0~200GU, does not support connecting to a computer
2) HG 60 gloss meter:
Automatic calibration, cumulative display of 5 sets of data on the screen, single-angle 60° test data,
Range: 0~300GU, can be connected to a computer to realize printing and control data
3) HG 268 gloss meter:
Automatic calibration, display 5 sets of measurement data at the same time, three angles: 20 ° 60 ° 85 ° test data,
Range: 20°: 0~1000GU 60°: 0~1000GU 85°: 0~160GU
4) NHG 60 gloss meter:
Intelligent operating system, automatic correction, display 5 sets of measurement data at the same time, single angle 60° test,
Range: 0~1000GU; can be connected to a computer to realize printing, control data,
add feature:
①Average test (the number of times can be set according to demand), take the average
②The instrument automatically averages the test (the number of times can be set according to the demand), and the average value is automatically taken
③Instrument automatic test (the number of times can be set according to demand), calculate the maximum, minimum and average value
④ Select a standard gloss value, collect the products that need to be compared, and judge whether the gloss is qualified
5) NHG 268 gloss meter:
Intelligent operating system, automatic calibration, display 5 sets of measurement data at the same time, three angles: 20 ° 60 ° 85 ° test,
Range: 20°: 0~2000GU 60°: 0~1000GU 85°: 0~160GU
Can be connected to a computer to realize printing and control data
Other functions are the same as NHG60

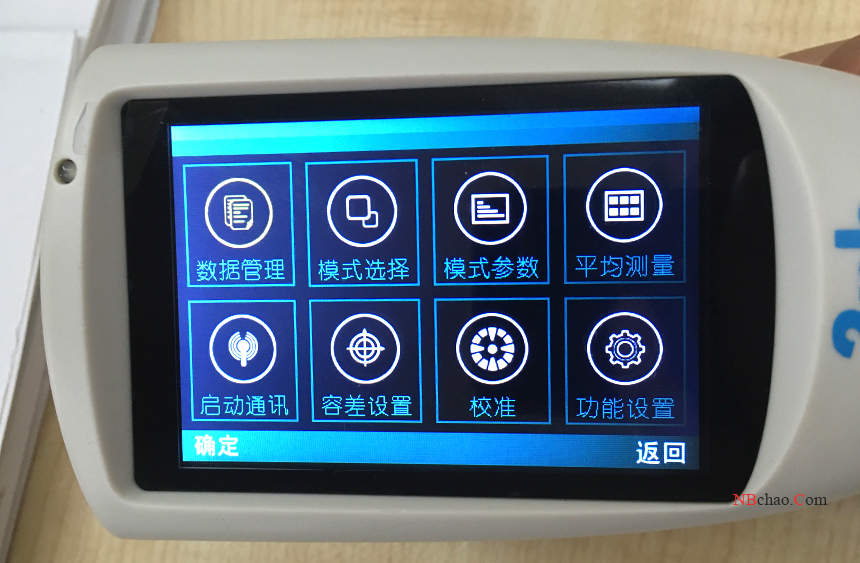

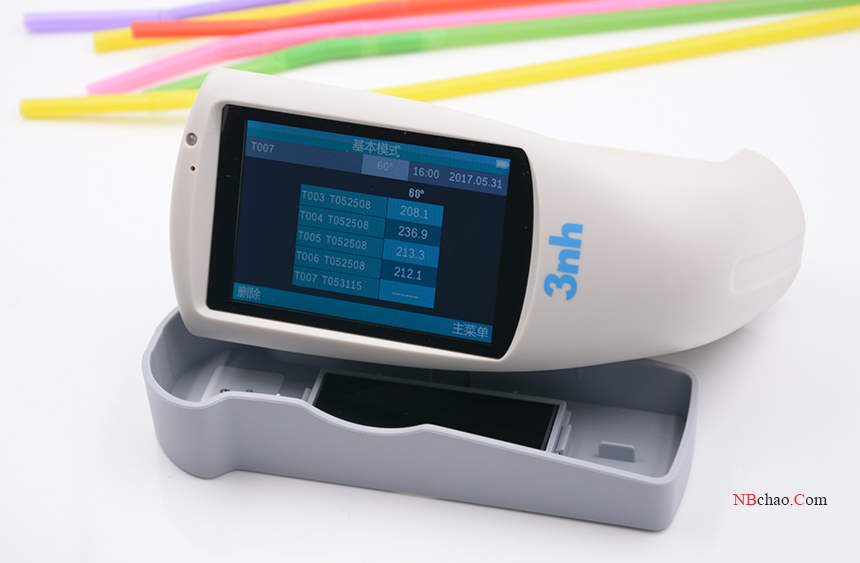

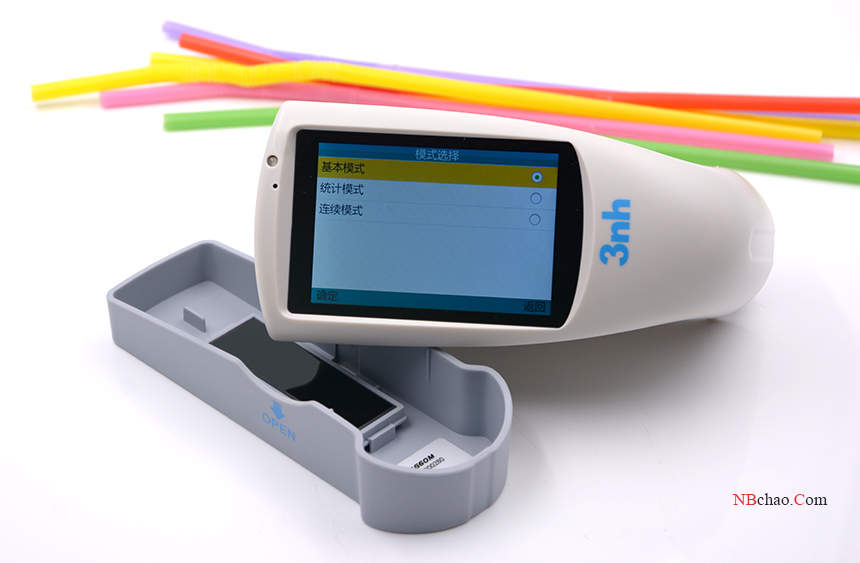

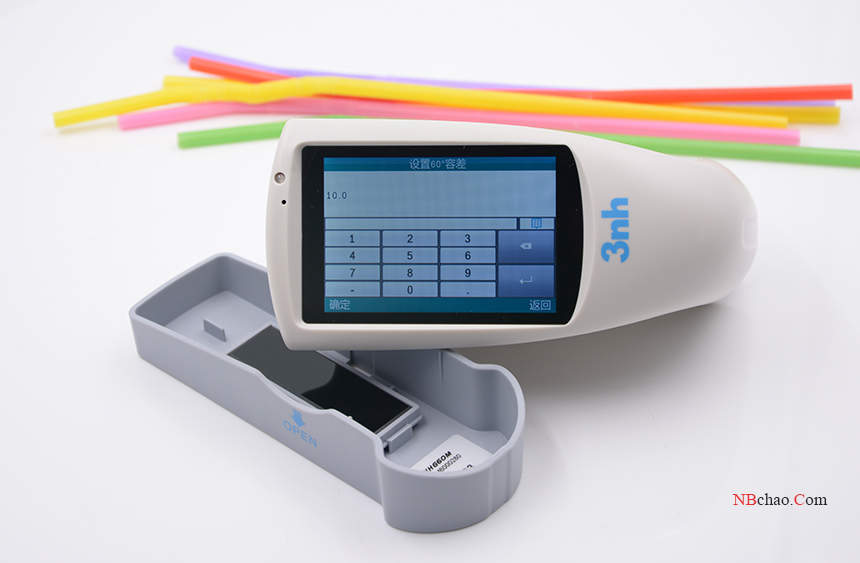

The above are the differences and comparisons of the six models of 3Entch Gloss Meter from different dimensions, and the following is the actual picture on the operation function interface.
