Water-based paint, as a coating product that adapts to the trend of environmental protection, has long been deeply rooted in the hearts of the people. What equipment is needed for the performance testing laboratory of water-based paint, and what performance is used to test it? Let's go through some plans to get a glimpse of the whole picture.
Required equipment includes but not limited to: scraper Fineness Meter, paint film adhesion Tester, paint film elasticity test, paint film pencil scratch hardness, electronic balance specular gloss meter, mechanical stopwatch, ISO outFlow Cup, paint film Cylindrical bending test, blast constant temperature oven, coating cupping Tester, coating Thickness Gauge, coating specific gravity cup, paint film drying time test, black and white grid measuring board, paint film cross-cutting instrument, dispersing machine, salt spray box, UV aging Test Chamber, glass Water Tank, Rotational Viscometer, pull-out Tester, pendulum Hardness Tester, Spray Gun, constant temperature and Humidity Chamber, distinctness of image Tester, low temperature chamber (-30 degrees), temperature and humidity regulation chamber, etc. .
| Mechanical Properties Testing Instruments - Flexibility | |

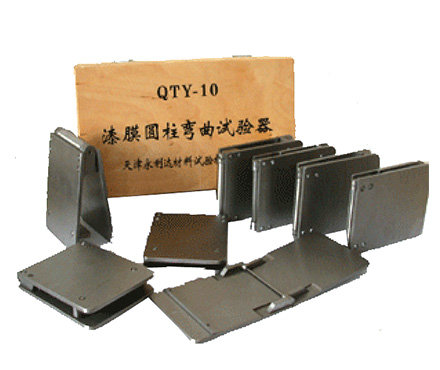

 | Yonglida QTY-10A Paint Film Cylindrical Bending Tester |
| Specification parameters: shaft rod size 2/3/4/5/6/8/10/12mm, test plate thickness not greater than 0.3mm (tinplate plate), in line with standards GB/T6742-86, ISO1519-73, ASIMD522, DIN53152 | |
 | Jingke QTX Paint Film Elasticity Tester |
| Specification parameters: shaft rod length 50mm, test iron plate size thickness 0.2~0.3 mm, size 20*100~150 mm, magnifying glass four times magnifying glass, operating environment at 22±1°C, relative temperature not greater than 70%, shaft rod 1Φ15mm, shaft rod 2Φ10mm, shaft rod 3Φ5mm, shaft rod 4Φ4mm, shaft rod 53*10mm, radius of curvature 1.5mm, shaft rod 62*10mm, radius of curvature 1mm, shaft rod 71*10mm, radius of curvature 0.5mm | |
| Mechanical Properties Testing Instruments - Destructive | |
 | Jingke QBJ coating cupping Tester (digital display) |
| Specification parameters: punch diameter Φ20mm, indentation accuracy ±0.05mm, maximum indentation depth 10mm, maximum indentation force 1000N, digital display resolution 0.01mm, model size 70mm x 70mm x 0.03mm~1.25mm, meeting the standards ISO1520, GB9753 standard | |
| Environmental Testing Equipment - Weatherability | |
 | Modern environment XD-21-865 desktop xenon lamp aging Test Chamber |
| Specification parameters: the longest lamp life and normal service life are about 1500h, power supply voltage 220V, 50/60HZ; maximum current 13A, xenon lamp source 1.8KW imported Q-Lab air-cooled xenon lamp or 1.8KW domestic xenon lamp, filtered Sunlight filter or window glass filter (choose one), exposure area 1000cm2, irradiance 30W/m2～100W/m2 (300nm～400nm) or 0.35 W/m2～0.8 W/m2 (@ 340nm) or 0.5 W/m2～2.1 W/m2 (@ 420nm), blackboard temperature room temperature +30℃～80℃, material all stainless steel plate 304/spray plastic, overall size 1050×530×375mm (length×width×height), net weight 65Kg ( Including packing wooden box 80Kg), exposure area 1000cm2, exposure area 1000cm2, sample capacity 9pcs(150*70mm), sample capacity 9pcs(150*70mm), sample capacity 9pcs(150*70mm) | |
 | Farui FR-1201-60 Salt Spray Tester |
| Specification parameters: studio size 450*600*400mm, external dimension 700*1200*1100mm, power 3000W, temperature range RT+5~65°C, temperature uniformity ≤±2°C, temperature fluctuation ≤±0.5°C, salt spray Sedimentation volume 1~2ml/80cm²/h, spray mode continuous/intermittent spray, timing range 1~9999 (S, M, H) adjustable, temperature control Japanese Omron or Japanese physical and chemical LED digital display P, I, D+S , S, R. Microcomputer integrated controller, temperature control platinum resistance. PT100Ω/MV, independent heating system, corrosion-resistant titanium alloy electric heating heater, spraying tower spraying device + non-crystallization nozzle, spraying time 1 ~ 9990H And the period is adjustable, the temperature and humidity inside the box is equipped with a temperature and humidity mercury thermometer, a standard funnel for collecting salt solution and a standard measuring cylinder, the temperature of the brine solution is balanced with the temperature inside the box (so that the temperature of the salt solution is not too low to affect the test temperature), the outer box High-strength material, high temperature resistance, acid and alkali resistance, high-grade PVC board, studio material high-strength, high temperature resistance, acid and alkali resistance, high-grade PVC board, box cover material imported corrosion-resistant, high-strength transparent acrylic board, power supply voltage 220V 50HZ, The working environment temperature is "5℃～＋30℃≤85%RH, and the seal adopts water-tight structure, no salt mist overflow | |
| Environmental testing equipment - temperature and humidity control | |
 | Kangheng Instrument LRH-100S Constant Temperature and Humidity Chamber |
| Specification parameters: temperature control range 0~60°C, humidity control range 50%-90%, input power 0.4KW, power supply voltage 220V, studio size 580*450*380mm, external dimensions 1100*590*620mm, studio volume 100L , packing size 1220×670×700mm, packing weight 100KG | |
 | Kangheng Instrument 101-1S Pointer Type Electric Forced Air Drying Oven |
| Specification parameters: temperature control range RT+5~300°C, temperature fluctuation ±1%, accuracy ±1°C, studio size 450*450*350mm, studio material stainless steel, outer box material metallic paint spraying, temperature control Pointer type, with observation window, power supply voltage 220V, input power 0.8~1.6Kw, overall size 690*760*520mm | |
| Raw material performance testing instrument-viscosity | |
 | Nirun DV-79 Digital Viscometer |
| Specification parameters: display mode digital display, measuring range 50~1000000mPa·s, rotor specifications E, F, G three rotors, rotor speed 7.5/75/750rpm, reproducibility ±0.5%, measurement accuracy ±1%, power supply Voltage 100~240V 50~60Hz, temperature range 0~120℃, measuring container B container, temperature probe RTD temperature probe, timing function has | |
 | Jingke QNB No. 3 ISO outFlow Cup |
| Specification parameters: viscosity range 7~40cSt, outflow time 30~100s, orifice diameter 3mm, cup body made of stainless steel, filter tip made of stainless steel, applicable standards ISO 2432-1993, GB/ T6753.4-86, no certificate | |
| General laboratory equipment - mixing and dispersing | |
 | Modern environment SFJ-750 (AC frequency conversion) Sanding, dispersing, mixing multi-purpose machine (AC frequency conversion) |
| Specifications: motor power 750W, speed range 0~7500rpm, lifting stroke 240mm, processing capacity 1.25L, impeller diameter Φ50/60mm, power supply voltage 200-260V 50Hz/60Hz, overall size 450*420*550mm, main machine weight 35Kg | |
| General Laboratory Equipment - Quality | |

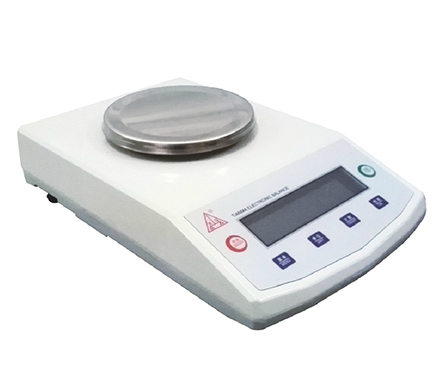

 | Tianjin Tianma TD10002 TD series electronic balance |
| Specification parameters: Weighing range 0~1000g, readability accuracy 0.01, nonlinear error ±0.03g, repeatability error ±0.01g, calibration weight 500g, calibration function external calibration, stabilization time ≤5s, working conditions 5~40 ℃ 50%RH-60%RH, weighing pan size Φ125mm, power supply voltage ~220V±10% 50/60Hz, overall size 290*185*80mm, package size 325*225*180mm, data interface RS-232, gross weight 2.8kg | |
| Raw material performance testing instrument - fineness | |
 | Jinfulan QXD 0-150 scraper Fineness Meter (single groove) |
| 规格参数：刮槽类型单槽， 刮槽数量1， 量程0~150μm， 刻度单位μm， 刮板材质硬质合金钢， 刮板尺寸155*50*13mm， 凹槽尺寸13*120mm， 刮刀尺寸68*40*6.5mm， 适用标准GB/T1724-93、GB/T13217.3-91， 净重0.9kg， 分度值10μm | |
 | 金孚伦 QXD 0-50 刮板细度计（单槽） |
| 规格参数：刮槽类型单槽， 刮槽数量1， 量程0~50μm， 刻度单位μm， 刮板材质硬质合金钢， 刮板尺寸155*50*13mm， 凹槽尺寸13*120mm， 刮刀尺寸68*40*6.5mm， 适用标准GB/T1724-93、GB/T13217.3-91， 净重0.9kg， 分度值5μm | |
 | 金孚伦 QXD 0-100 刮板细度计（单槽） |
| 规格参数：刮槽类型单槽， 刮槽数量1， 量程0~100μm， 刻度单位μm， 刮板材质硬质合金钢， 刮板尺寸155*50*13mm， 凹槽尺寸13*120mm， 刮刀尺寸68*40*6.5mm， 适用标准GB/T1724-93、GB/T13217.3-91， 净重0.9kg， 分度值10μm | |
| 原料性能检测仪器 - 密度 | |
 | 永利达 QBB 50ml 比重杯（50ml不锈钢） |
| 规格参数：杯体容积50ml， 材质不锈钢， 适用标准GB/T 6750， 均衡锤空心结构，填充铅粒调节重量 | |
| 制膜打样仪器 - 喷涂 | |
 | 宝丽 R-210-G18 喷枪 |
| 规格参数：涂料供给方式重力式， 喷嘴口径1.8mm， 喷涂距离250mm， 空气使用量290L/min， 涂料喷出量290ml/min， 喷涂空气压力2.5-3.0 (0.24-0.29)kg/cm²(Mpa)， 喷幅340mm， 喷壶容量400c.c， 适用空气枪帽型号K2， 空气接口3/8PF， 空气帽材质铜 ， 喷嘴材质不锈钢， 枪针材质不锈钢， 雾化效果高雾化， 重量536g， 用途汽车，工业喷涂 | |
| 制膜打样仪器 - 干燥时间 | |
 | 永利达 QGS 漆膜干燥时间测定器 |
| 规格参数：试验器重量200g， 砝码底面积1cm²， 执行标准GB/T 1728-89 | |
| 物理性能检测仪器 - 厚度 | |
 | 林上 LS221 涂层测厚仪 |
| 规格参数：测头尖端红宝石固定， 测量原理磁感应+电涡流， 探头类型外置连线式， 测量范围0~2000μm， 分辨率0.1μm:（0μm - 99.9μm） 1μm:（100μm - 999μm） 0.01mm:（1.00mm - 2.00mm）， 测量精度≤±(3%读数+2μm)， 单位显示μm/mil， 测量间隔0.5s， 最小测量面Ø= 25mm， 最小曲率凸面:5mm / 凹面:25mm， 最薄基体Fe:0.2mm / NFe:0.05mm， 显示128×48点阵LCD， 供电方式2节 1.5V AAA碱性电池， 工作温度范围0℃-50℃， 存储温度范围-20℃-60℃， 主机尺寸101*62*28 mm， LS221探头尺寸71*26*22 mm， 重量（含电池）114g | |
| 物理性能检测仪器 - 光泽 | |
 | 永利达 QYG 涂膜鲜映性测定仪 |
| 规格参数：光源照度不小于1200X， 鲜映性等级0.1、0.2、0.3、0.4、0.5、0.6、0.7、0.8、0.9、1.0、1.2、1.5、2.0， 式样面积不小于60 x 60mm， 电源6V（一号干电池4节）， 试验环境温度23℃±2℃、相对湿度50±5% | |
 | 科仕佳 MG6-F2 智能型光泽计 |
| 规格参数：测量角度60°/85°， 测量范围0~1000GU， 重复性0.2GU；0.2%， 再现性0.5GU|0.5%， 测量光斑9*16mm， 示值误差±1.5; ±1.5%GU， 分度值0.1GU|1GU， 满足标准ASTM D523、GB/T13891、GB7706、GB8807、JJG 696-2002， 外形尺寸155*48*75mm， 重量400g， 电源一节AA（或LR6）碱性干电池或可充电池， 测量口尺寸12*28mm， 零值误差0.2GU， 工作时长一节碱性干电池可支持约20000次以上的测量 | |
| 物理性能检测仪器 - 遮盖力 | |

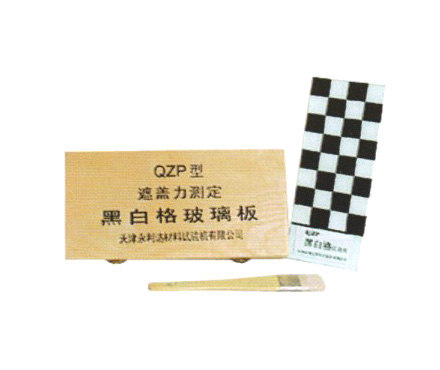

 | 永利达 QZP 黑白格测定板 |
| 规格参数：图形黑白格， 图形参数25mm x 25mm，各16格， 玻璃板尺寸250mm x 100mm， 执行标准GB/T1726 | |
| 机械性能检测仪器 - 硬度 | |
 | 精科 QBY-II 摆杆式漆膜硬度计 |
| 规格参数：摆杆类型M-3摆， M-3摆杆质量120±1g， M-3摆杆周期0.625s， M-3摆杆长度500±1mm， M-3钢球直径5mm， M-3平玻璃上摆动时间440±6s， M-3平玻璃上摆动次数352±4次， 记数方式电子自动计数， 外形尺寸200*150*570mm， 计时范围0~999 | |
 | 精科 QHQ 涂膜铅笔划痕硬度计 |
| Specification parameters: load 1000g, applicable standards GB/T 6739-86, JIS K5401, ASTMD2197, standard pencil 6B-6H, test angle 45º, scratch speed 1mm/s | |
| Mechanical Properties Testing Instruments - Adhesion | |
 | HTechMT AT200-20 Digital Adhesion Tester |
| Specifications: manual measurement, top size 20mm, range 0.8~15MPa, accuracy ±2%, digital display, force value unit MPa, psi, bar, power supply 1 rechargeable battery, conforming to the standard ASTM D 4541, ISO 4624, ISO16276-1, weight 2.5kg, size 86*53mm | |
 | Modern environment QFH 1mm (5 slots) scribe |
| Specification parameters: the number of teeth is 6 teeth, the distance between teeth is 1mm, the material of the instrument is plastic, the application standard is ISO 2409, the film thickness is 0~60μm, the number of blades is 3 | |
 | Jingke QFZ Adhesion Tester |
| Specification parameters: the diameter of the drawing is the diameter of the drawing, the working stroke is ≥80mm, the weight of the weight is 100g, 500g, 200g, 200g, the effective area of the workbench is 100*50mm, the rotating needle adopts the 808 brand stylus, which can be easily replaced, and can be used less than 5 times | |
