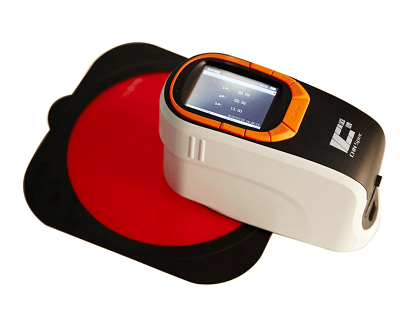

Plastics are materials made by synthesis or condensation reactions of monomeric raw materials. It is composed of synthetic resins and fillers, plasticizers, stabilizers, lubricants, pigments and other additives. Its main component is synthetic resin. The plastic board is made of plastic, and the plastic board is easy to color. In the quality inspection process, the color management of plastic panels is a very important link. The CS-600 Spectrophotometer has been practically used in the color measurement process of plastics.
Knowing the role of Spectrophotometer s in the plastics industry, a plastics company hopes to directly understand how Spectrophotometer s test plastic plates through live demonstrations. The company's main business is PVC rubber particles of various colors (cold resistance, certification, non-migration, sulfur resistance, wire and cable insulation, sheaths, plugs, electronic materials, medical, toys, transparent materials, non-toxic and tasteless NP materials, thermoplastic elastomer TPR , TPE plastic pellets). The quality requirements for the produced plastic boards are very high, so it is decided to use a new method - Spectrophotometer , to manage the color quality of the plastic boards.
The following introduces the process of actually using CS-600 to test the color difference of plastic plates.
The first step: prepare the sample to be tested - the standard sample and sample of the plastic plate;
Step 2: Turn on the instrument, after performing routine black and white calibration, press the "Print" button, first locate the measurement area through the image, align the standard sample of the plastic plate to be tested with the test hole, and then press the "Test" button, "drop" Complete the measurement after the sound, check the test results, and pay attention to avoid the influence of light leakage during the test;
Step 3: After the standard sample is measured, press the "Menu" button to enter the "Sample Measurement" interface under the standard sample, align the plastic plate sample with the test hole according to the standard sample measurement method, and press "Test " key to measure, after the "beep" sound, the color difference measurement is completed and the measurement result can be obtained immediately.

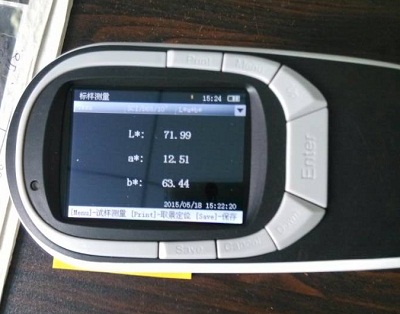

After the sample is measured, the obtained color difference measurement results intuitively reflect the accurate data of the color difference between different batches of plastic plates.
